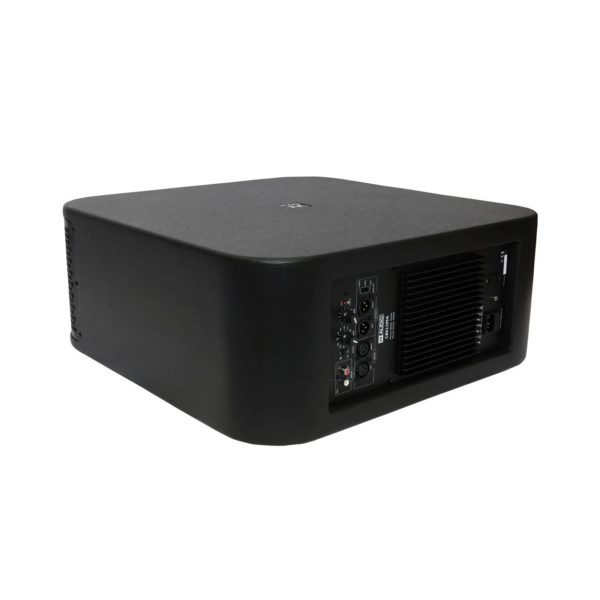

The W Audio CBS110SA is a 10” active subwoofer designed for discreet yet powerful low-frequency reinforcement in commercial audio installations. Constructed from birch ply, it features a labyrinth acoustic structure for enhanced bass response. The built-in 450W Class D amplifier delivers consistent, high-quality audio, while the integrated DSP processor provides filtering functions and speaker protection.

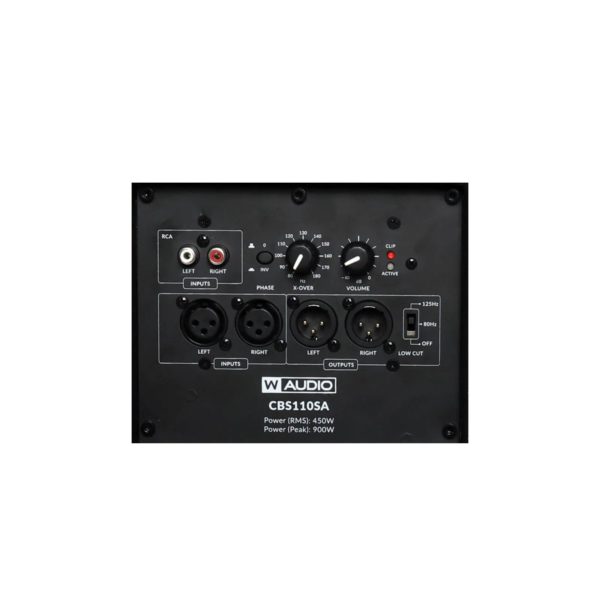

Input options include balanced XLR and unbalanced phono, with selectable high-pass filtering on the XLR outputs, allowing easy linking to additional active subwoofers or mid/high cabinets. Rear panel controls include a variable 80-180Hz crossover and volume adjustment, offering precise tuning for different applications.

Available in black (SPEA96) or white (SPEA97), the CBS110SA is perfect for restaurants, bars, hotels, and other commercial venues requiring seamless integration and powerful bass reproduction.

Features

• Output power (RMS): 350W
• Maximum calculated SPL: 116dB
• Sensitivity (1W/1m): 91dB
• Frequency range (-10dB): 42Hz – 180Hz
• Frequency range (-3dB): 45Hz – 180Hz
• LF transducer: 10″
• Amp technology: Class D
• Signal processing: Gain, Crossover, Phase
• Connections: Unbalanced phono inputs, balanced XLR inputs, and balanced XLR outputs
• Switchable high-pass filter on XLR outputs (Off/80Hz/125Hz) for linking to other active subwoofers or mid/high cabinets

Specifications

• Material: Plywood
• Power supply: 220~240V, 50/60Hz
• Dimensions (H x W x D): 215 x 530 x 530mm
• Weight: 19.5kg
