Palmer STUDIMON 5

Καλέστε μας για τιμή

Palmer STUDIMON 5

  • Περιγραφή

Περιγραφή

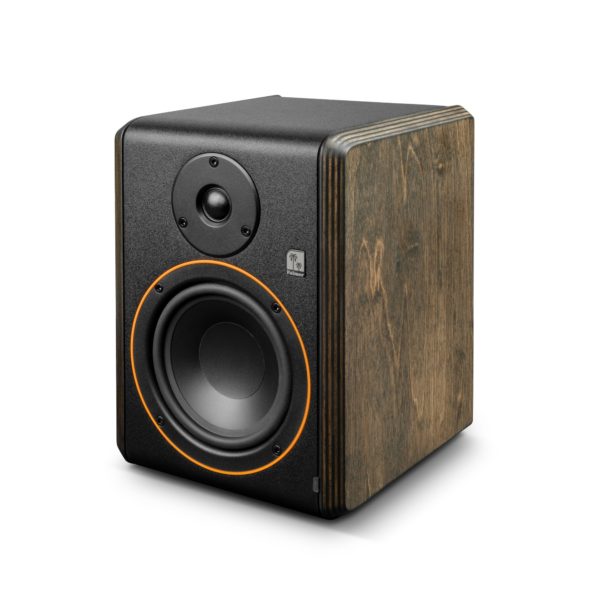

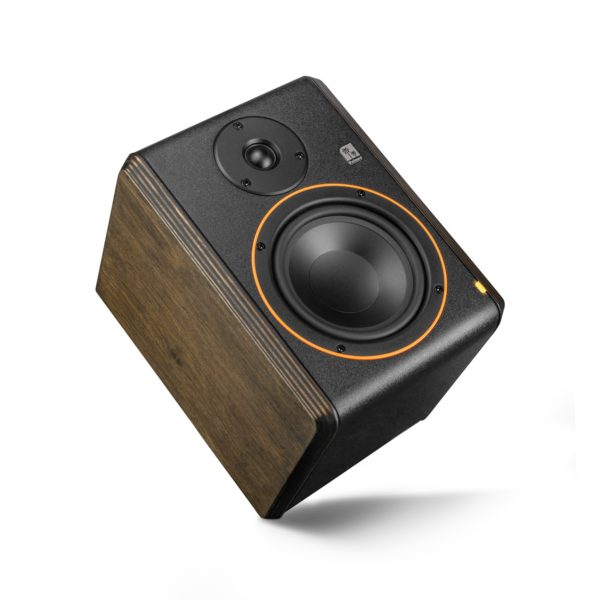

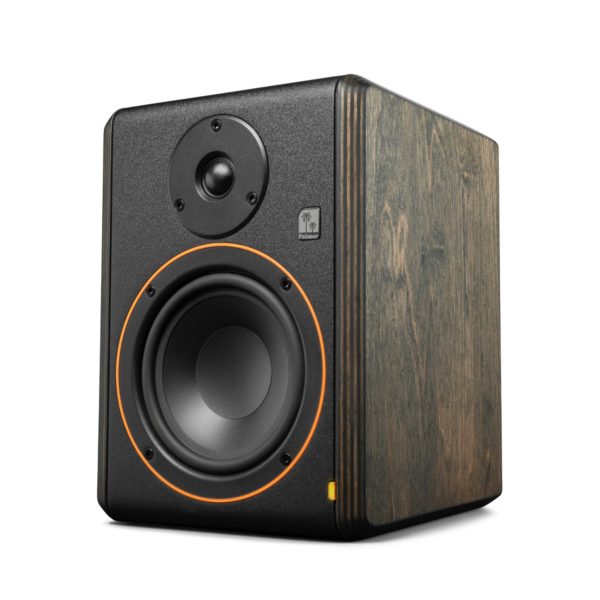

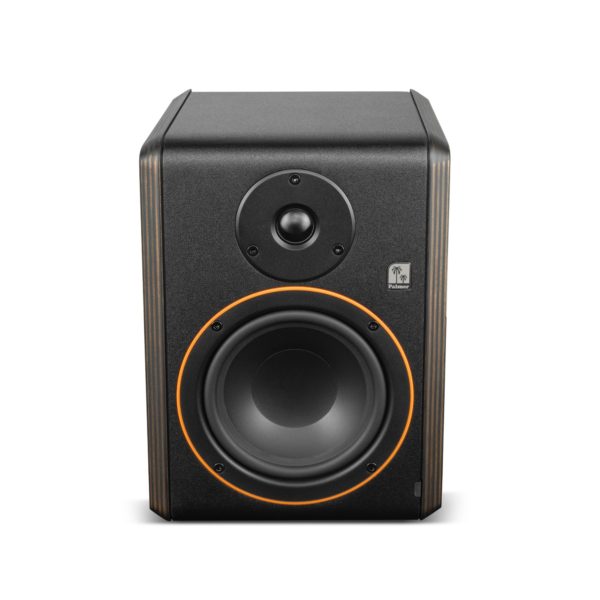

Palmer STUDIMON 5

Powered 5″ Reference Nearfield Studio Monitor

  • 5″ woofer and 0.75″ soft dome tweeter
  • Bass reflex design
  • 60-W RMS bi-amping power amplifier
  • 70 Hz to 20 kHz frequency response
  • Balanced XLR and 6.35 mm stereo jack input
  • Compact design
  • Elegant and robust housing
Description

Active 5″ nearfield reference-class studio monitor

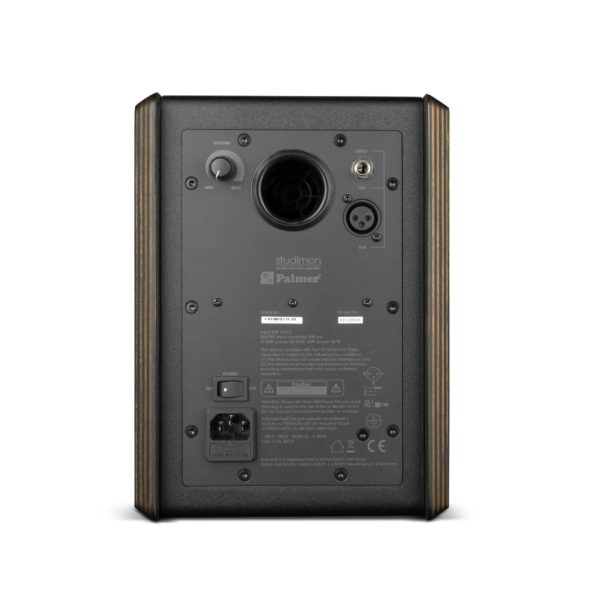

A basic requirement for any studio is that the mix is accurate and that it’s reproduced with the highest possible dynamics and impulse fidelity. The STUDIMON 5 from Palmer is a reference-class nearfield studio monitor with a bi-amping power amplifier. Drawing on two 30-watt class-AB power amplifiers, the STUDIOMON 5 delivers incredible sound despite its compact design. The studio monitor is fitted with a magnetically shielded 5″ woofer with rubber surround and a 0.75″ tweeter with silk dome, and features a rear reflex aperture for optimal deep bass reproduction. Balanced XLR and 6.35 mm stereo jack inputs guarantee disruption-free signal transmission, while a practical volume controller rounds off the loudspeaker’s features. The elegant design of the STUDIOMON 5 seamlessly complements MONICON series products from Palmer.

Specifications
Product type
Other Studio and Recording Equipment

Type
Studio monitor

Low/mid driver dimensions
5 “

Woofer size
127 mm

Woofer magnet
80 mm Ferrit

Woofer brand
Custom-made

HF driver dimensions
0.75 “

HF Driver Size
19 mm

HF driver magnet
28 mm Neodym

HF driver brand
Custom-made

Power amplifier (Class A)
Class A/B

Dispersion (H x V)
120 ° x 120 °

RMS
2 x 30 W

Frequency response
70 – 20.000 Hz

Crossover frequency
2500 Hz

Max. SPL
110 dBU @ 1 kHz dB

Signal-to-noise ratio
85 dB

Protection circuits
Overtemperature , short circuit

Input impedance
10,000 Ohm(s)

Controls
mains switch (on/off) , volume control

Indicators
orange (LED)

Line input connectors
6.3 mm stereo jack (balanced) , XLR (balanced)

Operating voltage
Switching power supply

Operating voltage
100 V AC – 240 V AC, 50 – 60 Hz

Cabinet material
Birch Plywood , MDF

Housing Wall Strength
15 mm

Cabinet surface
Laminated , stained

Cabinet colour
Black

Cabinet construction
Bass Reflex

Width
190 mm

Height
268 mm

Depth
215 mm

Weight
3,95 kg

Accessories (included)
Power cord





Downloads
