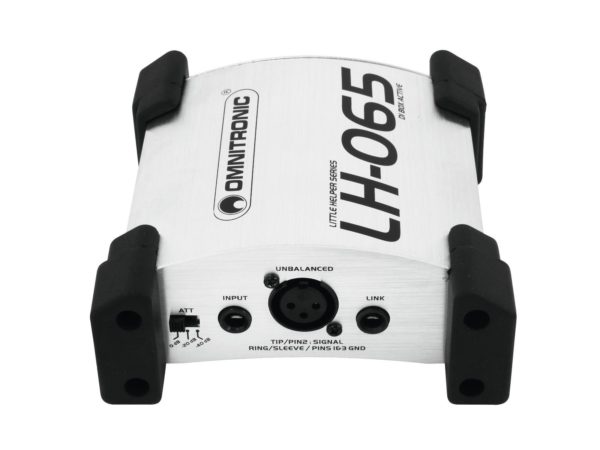

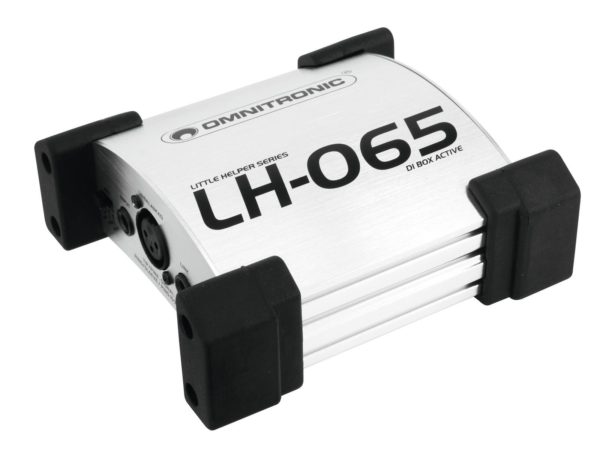

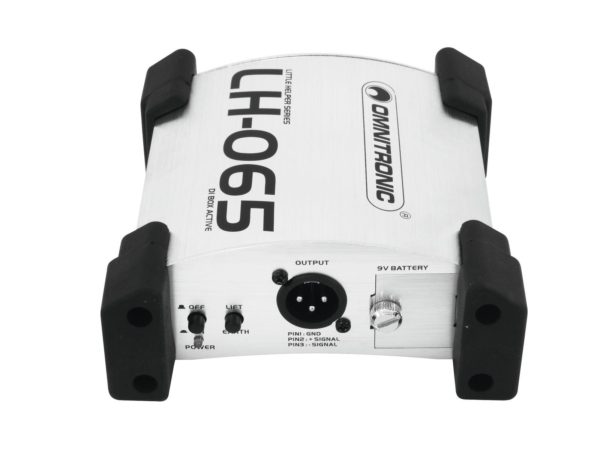

OMNITRONIC 10355065 LH-065 Active DI Box
Description
1-channel DI box, active
- Active DI box
- 1 high-impedance signal input via XLR or 6.3 mm jack connectors
- 1 low-impedance XLR output
- 1 instrument feed-through output, 6.3 mm jack
- Converts an unbalanced line input (e.g. instruments) into a balanced XLR output for connecting a mixer
- Switchable input attenuation: 0 dB, -20 dB, -40 dB
- Ground-lift switch eliminates signal interference and ground loop problems
- Modern convex housing design with rubber corners for safe positioning
- Stackable
- Cables can be routed under the housing
- Operation with 9 V battery (included)
Specifications
| Power connection: | Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided) |
| Battery: | 1 x 9.0 V E block 6F22 zinc carbon (provided) |
| Frequency range: | 10 – 30000 Hz |
| Impedance: | Input 470 kOhm |
| Output 600 Ohm | |
| input attenuation: | 0 dB, -20 dB, -40 dB; switchable |
| Connections: | Input: 1 x via 3-pin XLR |
| Input: 1 x via 6.3 mm plug (unbal.) | |
| link: 1 x via 6.3 mm plug (unbal.) | |
| Output: 1 x line via 3-pin XLR | |
| Max. level: | Output: +6 dBu |
| Distortion: | <0.5 % |
| Width: | 15 cm |
| Height: | 6 cm |
| Depth: | 13 cm |
| Weight: | 0.54 kg |
