LD Systems U518 BPG
Καλέστε μας για τιμή
LD Systems U518 BPG
- Περιγραφή
Περιγραφή
LD Systems U518 BPG
Wireless System with Bodypack and Guitar Cable – 1785 – 1800 MHz.
- True diversity UHF wireless system
- Shock-mounted dynamic and condenser microphone capsules
- Automatic channel scan
- Easy one-touch infrared frequency syncing
- Pilot tone squelch circuit prevents noise
- Switchable RF transmitter output (2, 10 or 30 mW)
- Rugged enclosures
- High-contrast OLED display
Product type
Wireless Microphone Systems
Type
Set
Transmission frequency range
1785 – 1800 MHz
Weight
2,46 kg

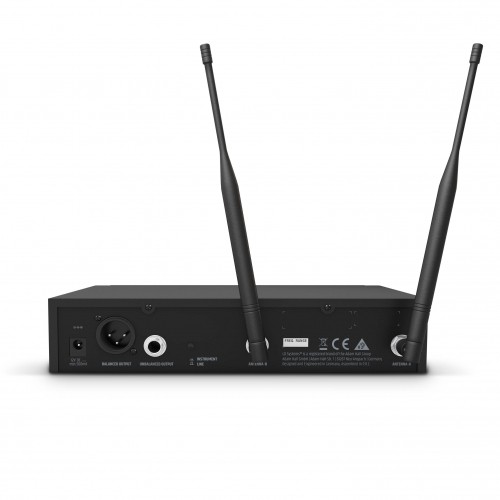

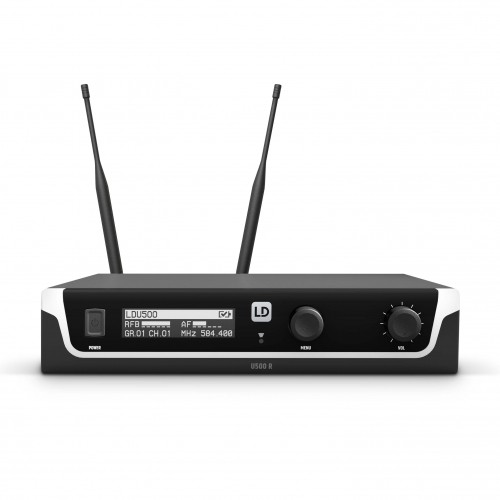

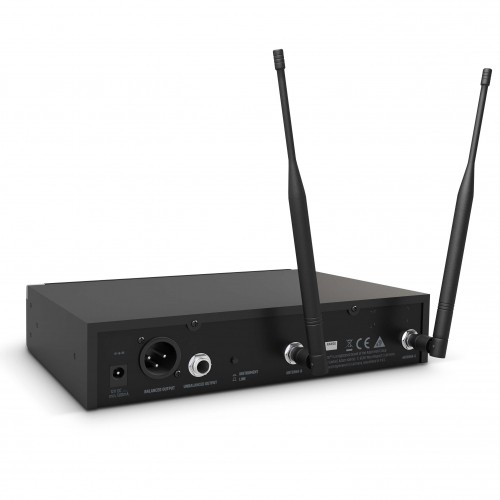

LDU518R – LD Systems U518 R Receiver
Product type
Wireless Microphone System Accessories
Type
Receivers
Modulation Type
FM
Channels
96 (8 groups of 12 channels)
Weight
0,85 kg
Groups
8
Antenna inputs
2
Antenna connector
BNC
Signal-to-noise ratio
> 100 dB
Frequency response
30 – 16000 Hz
Noise reduction
Squelch
Total Harmonic Distortion (THD)
< 0.1 %
Controls
digital encoder , Power On/Off , volume
Audio output, balanced
XLR
Operating voltage
12 – 18 V DC
Audio output, unbalanced
6.3 mm jack
Width
212 mm
Height
44 mm
Depth
159 mm
Max. output level
+10 dBu
Other features
channel search function , IR frequency synchronisation , Pilot tone
Indicators
OLED Display
Operating voltage
12 V DC, 500 mA
Accessories (included)
2 x antenna , Audio cable , Power cord

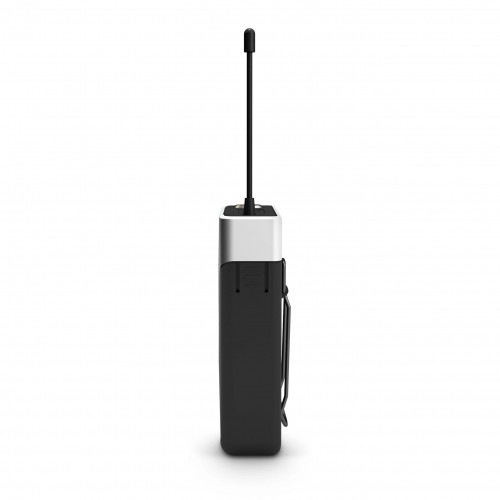

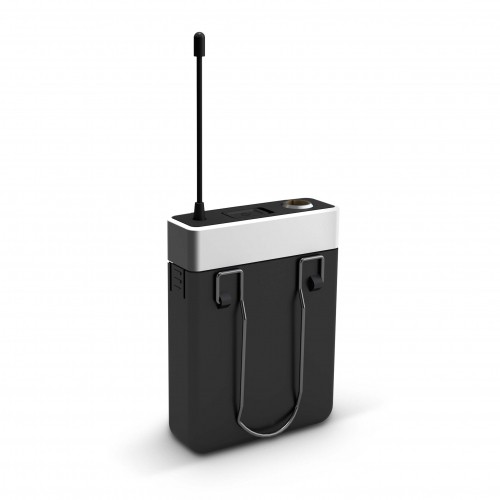

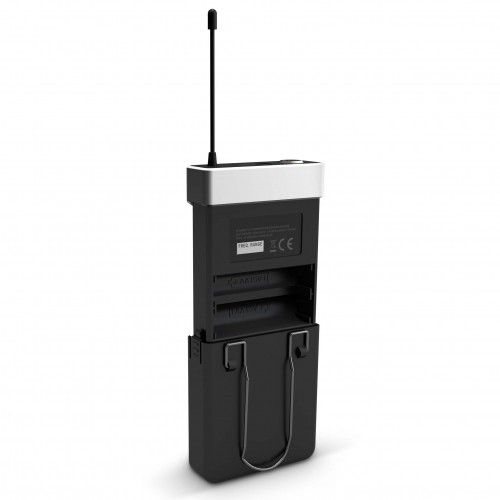

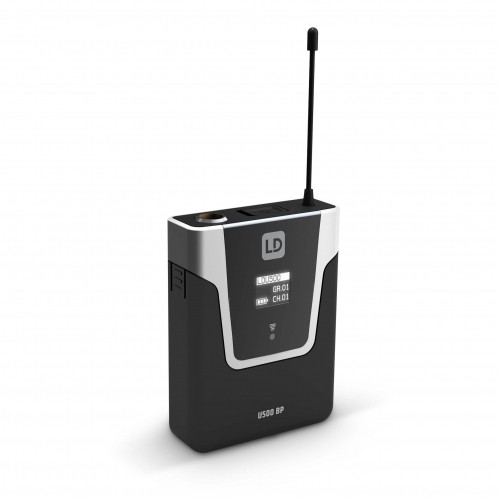

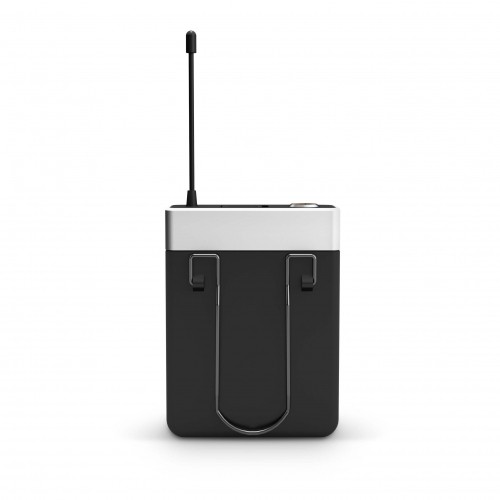

LDU518BP – LD Systems U518 BP Bodypack transmitter
Type
Belt Packs
Weight
0,09 kg
Inputs
Mini-XLR (3-pin)
Signal-to-noise ratio
>90 dB
Rated HF output power
Variable (2mW, 10mW, 30mW)
Controls
arrow keys (up/down value entry) , select
Operating voltage
2 x AA battery
Operating time
>10 h (with alkaline batteries)
Width
65 mm
Height
86 mm
Depth
23 mm
Other features
detachable antenna , Pilot tone squelch, switchable gain , switchable gain , switchable RF power , Wireless Microphone System Accessories

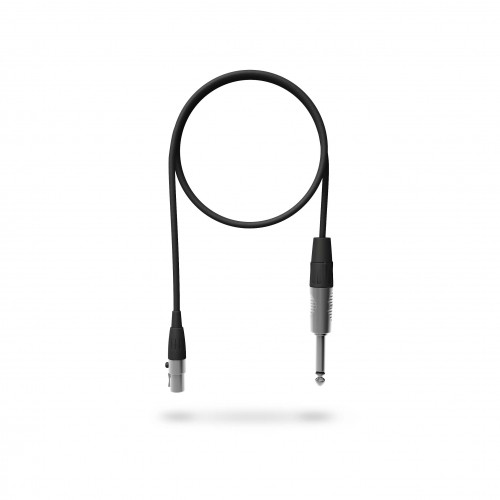

LDU500GC – LD Systems U500 GC Instrument cable for U500® series bodypack
Type
Guitar Cables
Connector 1
Mini-XLR (3-pin, female)
Connector 2
6.3 mm jack
Length
0.8 m
Weight
0,045 kg
