LD Systems U508 HBH 2
Καλέστε μας για τιμή
LD Systems U508 HBH 2
Κατόπιν παραγγελίας
- Περιγραφή
Περιγραφή

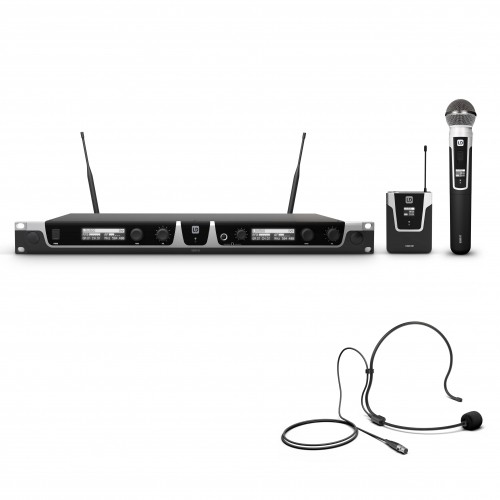

LD Systems U508 HBH 2
Wireless Microphone System with Bodypack, Headset and Dynamic Handheld Microphone
- True diversity UHF wireless system
- Shock-mounted dynamic and condenser microphone capsules
- Automatic channel scan
- Easy one-touch infrared frequency syncing
- Pilot tone squelch circuit prevents noise
- Switchable RF transmitter output (2, 10 or 30 mW)
- Rugged enclosures
- High-contrast OLED display
Product type
Wireless Microphone Systems
Type
Headsets / Handhelds
Transmission frequency range
823 – 832 MHz , 863 – 865 MHz
Weight
5,259 kg

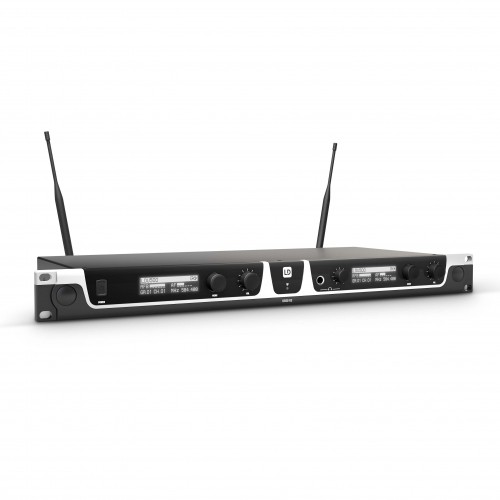

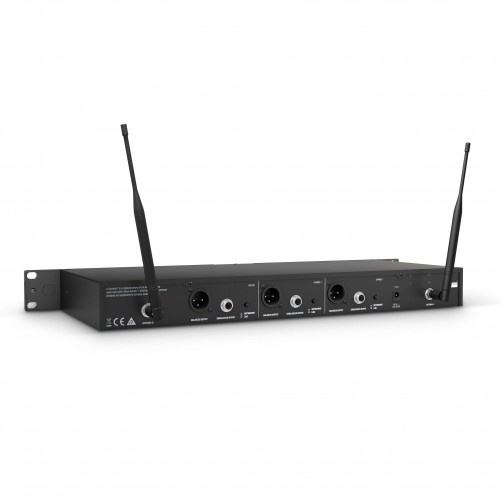

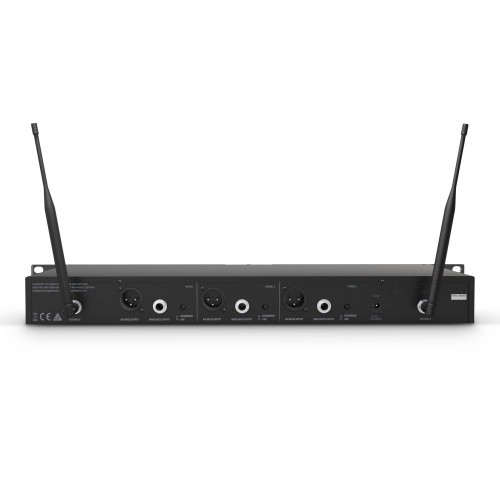

LDU508R2 – LD Systems U508 R2 Dual receiver
Product type
Wireless Microphone System Accessories
Type
Receivers
Modulation Type
FM
Channels
2 x 96 (8 groups of 12 channels)
Frequency response
30 – 16000 Hz
Groups
8
Antenna inputs
2
Antenna connector
BNC
Signal-to-noise ratio
> 100 dB
Noise reduction
Squelch
Total Harmonic Distortion (THD)
< 0.1 %
Indicators
2 x OLED Display
Controls
2 x volume , Down , Power On/Off , Up , volume
Audio output, balanced
2 x XLR
Audio output, unbalanced
2 x 6.3 mm TS
Audio mix output, balanced
XLR
Audio mix output, unbalanced
2 x 6.3 mm TS
Accessories (included)
2 x antenna , Audio cable , power adapter , Rack kit
Width
484 mm
Height
44 mm
Depth
200 mm
Max. output level
+10 dBu
Weight
2,24 kg
Headphones ouput
1
Headphones outputs
6.3 mm TRS
Other features
channel search function , IR frequency synchronisation , Pilot tone
Operating voltage
12 V DC, 1000 mA

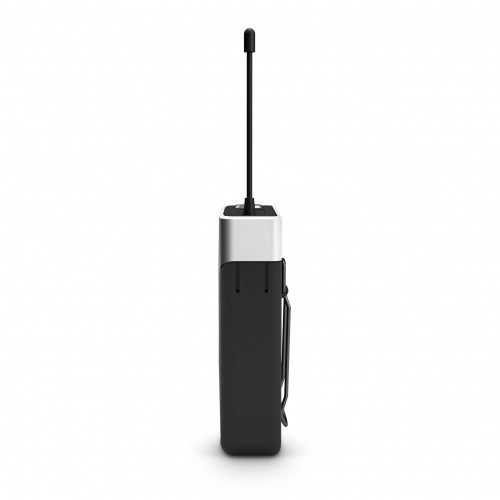

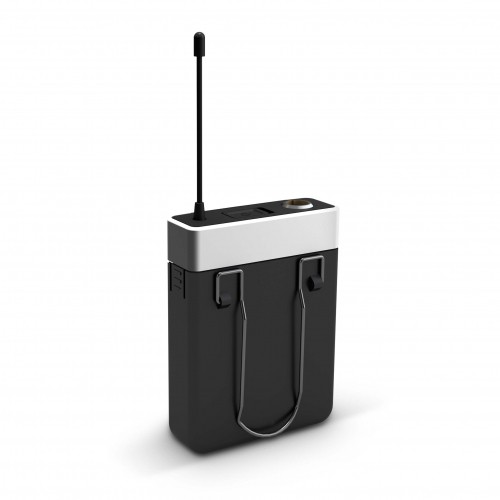

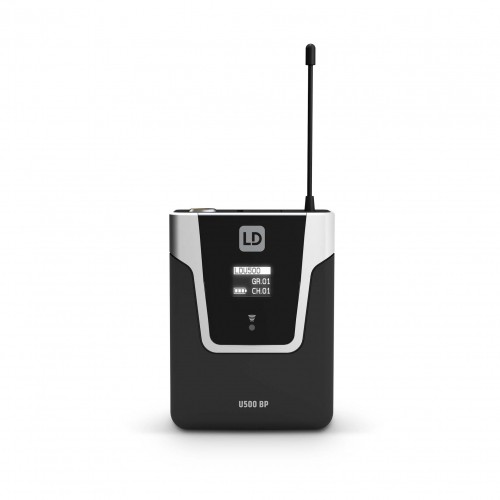

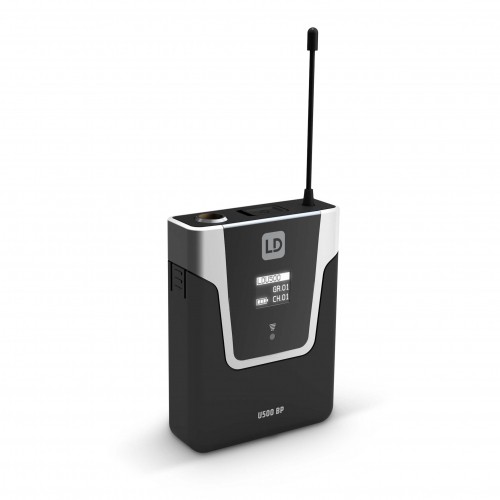

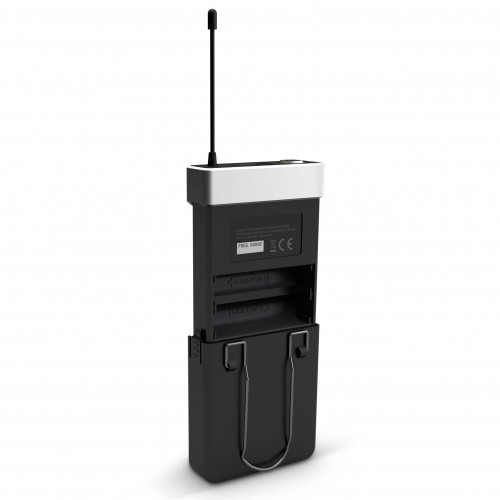

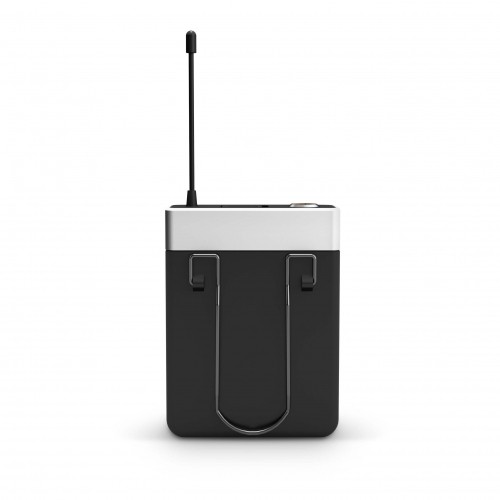

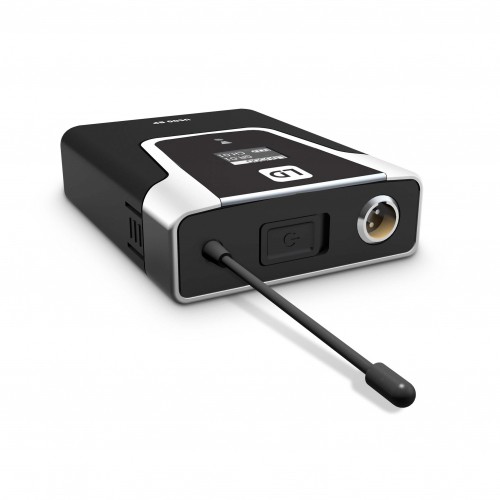

LDU508BP – LD Systems U508 BP Bodypack transmitter
Type
Bodypack
Channels
96 (8 groups of 12 channels)
Inputs
Mini-XLR (3-pin)
Signal-to-noise ratio
>90 dB
Rated HF output power
Variable (2mW, 10mW, 30mW)
Controls
arrow keys (up/down value entry) , select
Indicators
OLED Display
Operating voltage
2 x AA battery
Operating time
>10 h (with alkaline batteries)
Width
65 mm
Height
86 mm
Depth
23 mm
Weight
0,09 kg
Other features
detachable antenna , Pilot tone squelch, switchable gain , switchable gain , switchable RF power

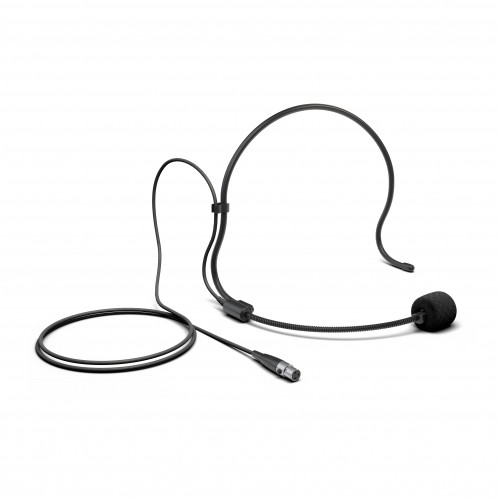

LDWS100MH1 – LD Systems WS 100 MH 1 Headset
Type
Headsets
Frequency response
20 – 20.000 Hz
Nominal impedance
680 Ohm(s)
Phantom power requierements
5 V
Microphone input
Mini-XLR (3-pin, female)
Accessories (included)
Foam windscreen
Weight
0,049 kg

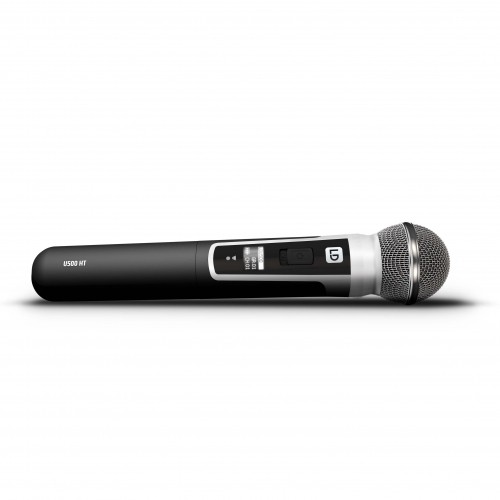

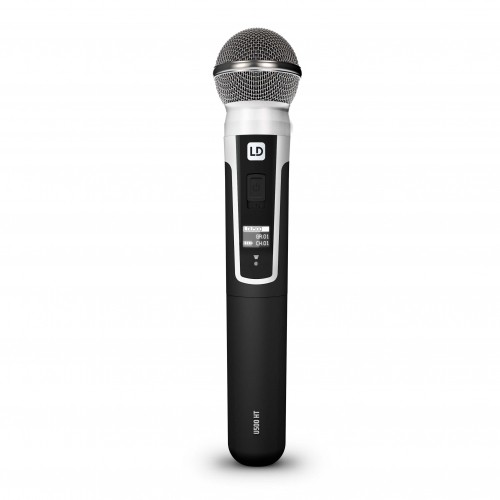

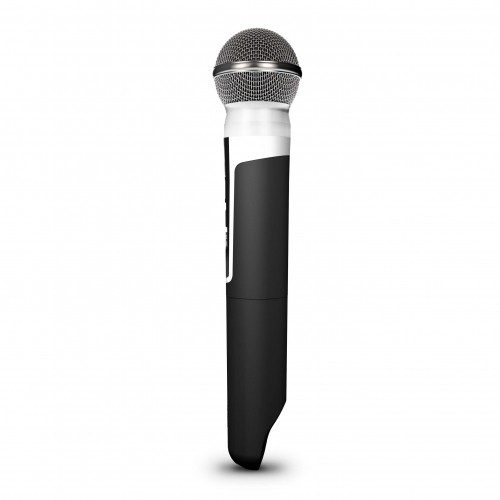

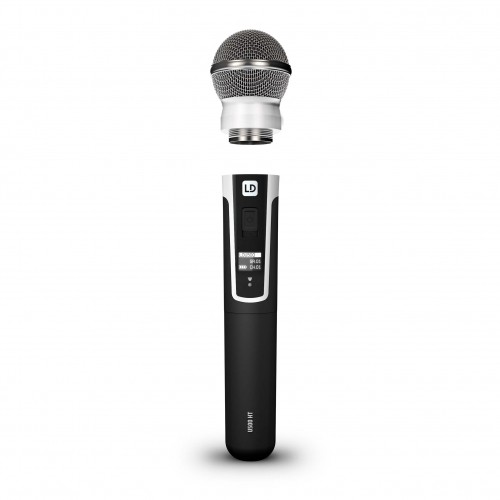

LDU508MD – LD Systems U508 MD Dynamic handheld microphone
Type
Microphones
Frequency response
60 – 16,000 Hz
Microphone type
Dynamic
Directivity
Cardioid
Signal-to-noise ratio
>95 dB
Controls
menu
Weight
0,25 kg
Length
257 mm
Other features
interchangeable capsule
