LD Systems U508 BPW
- Περιγραφή
Περιγραφή
LD Systems U508 BPW
Wireless Microphone System with Bodypack and Brass Instrument Microphone – 823 – 832 MHz + 863 – 865 MHz.
- True diversity UHF wireless system
- Shock-mounted dynamic and condenser microphone capsules
- Automatic channel scan
- Easy one-touch infrared frequency syncing
- Pilot tone squelch circuit prevents noise
- Switchable RF transmitter output (2, 10 or 30 mW)
- Rugged enclosures
- High-contrast OLED display
Product type
Wireless Microphone Systems
Type
Set
Transmission frequency range
823 – 832 MHz , 863 – 865 MHz
Weight
2,46 kg

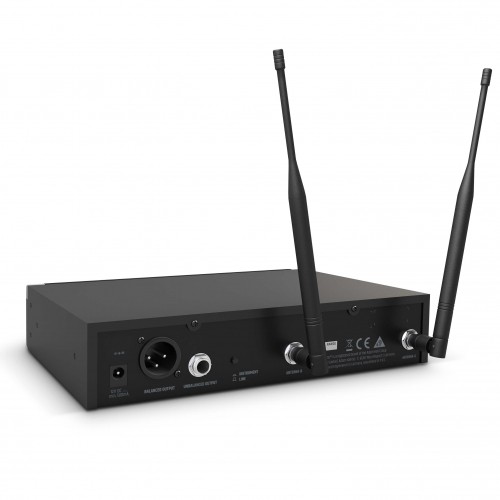

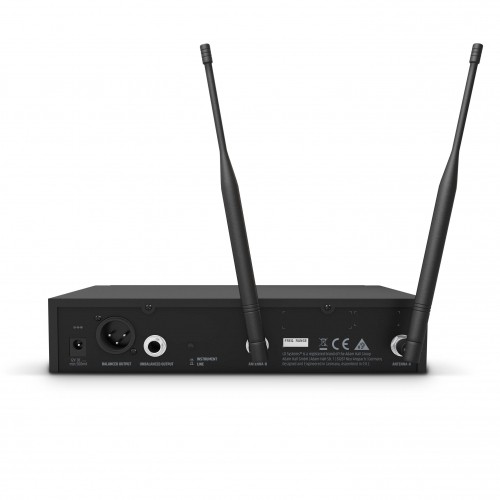

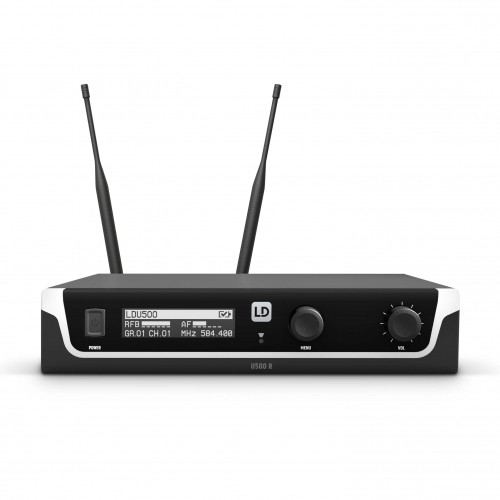

LDU508R – LD Systems U508 R Receiver
Product type
Wireless Microphone System Accessories
Type
Receivers
Modulation Type
FM
Frequency response
30 – 16000 Hz
Channels
96 (8 groups of 12 channels)
Groups
8
Antenna inputs
2
Antenna connector
BNC
Signal-to-noise ratio
> 100 dB
Noise reduction
Squelch
Total Harmonic Distortion (THD)
< 0.3 %
Controls
digital encoder , Power On/Off , volume
Audio output, balanced
XLR
Operating voltage
12 – 18 V DC
Audio output, unbalanced
6.3 mm jack
Accessories (included)
2 x antenna , Audio cable , power adapter
Width
212 mm
Height
44 mm
Depth
159 mm
Max. output level
+10 dBu
Weight
0,85 kg
Other features
channel search function , IR frequency synchronisation , Pilot tone
Indicators
OLED Display
Operating voltage
12 V DC, 500 mA

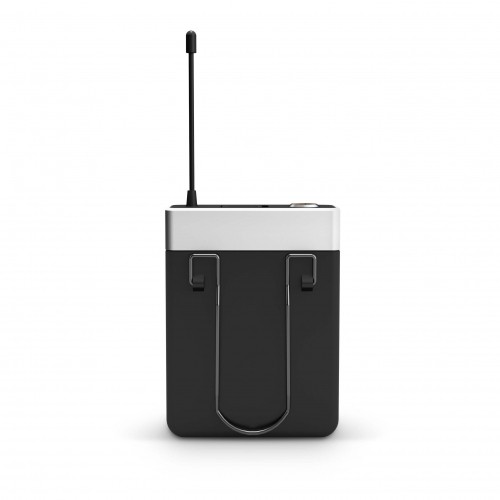

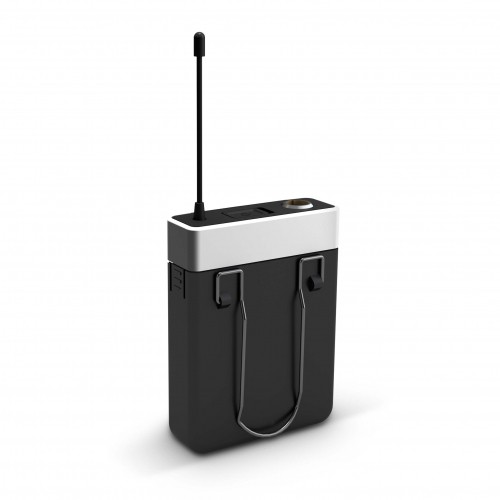

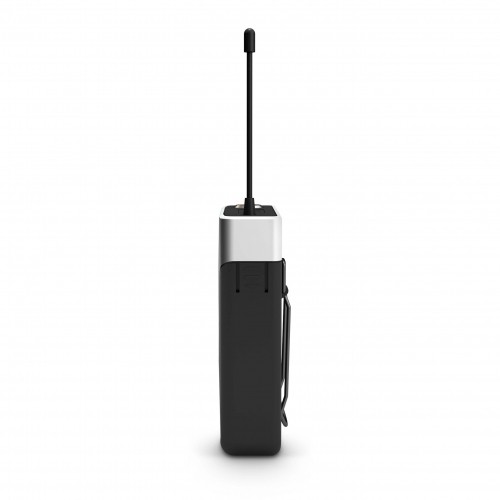

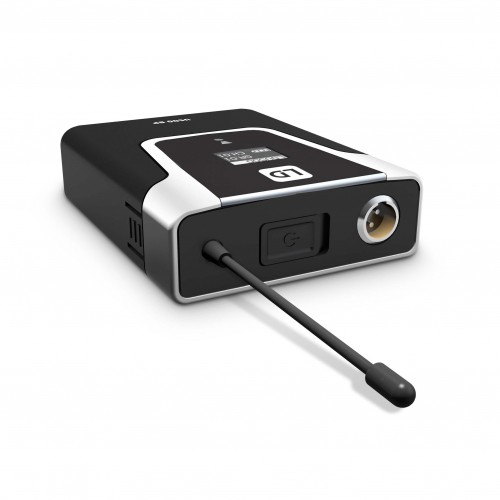

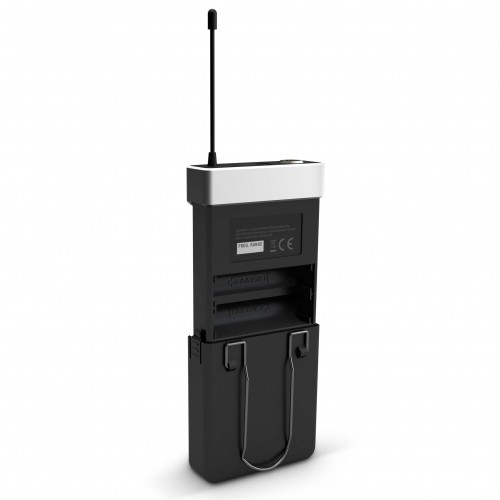

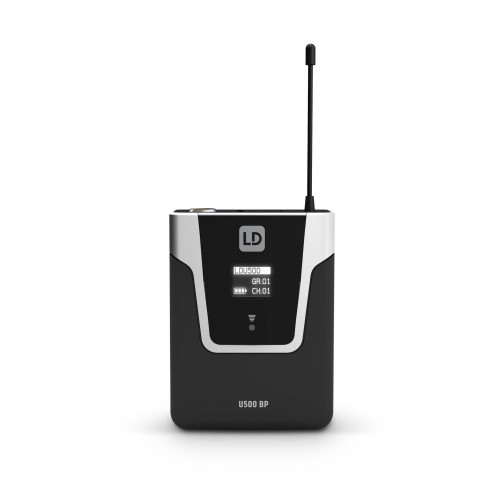

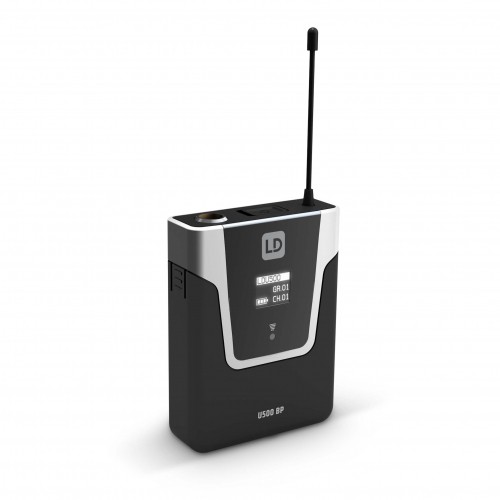

LDU508BP – LD Systems U508 BP Bodypack transmitter
Type
Bodypack
Inputs
Mini-XLR (3-pin)
Signal-to-noise ratio
>90 dB
Rated HF output power
Variable (2mW, 10mW, 30mW)
Controls
arrow keys (up/down value entry) , select
Operating voltage
2 x AA battery
Operating time
>10 h (with alkaline batteries)
Width
65 mm
Height
86 mm
Depth
23 mm
Weight
0,09 kg
Other features
detachable antenna , Pilot tone squelch, switchable gain , switchable gain , switchable RF power

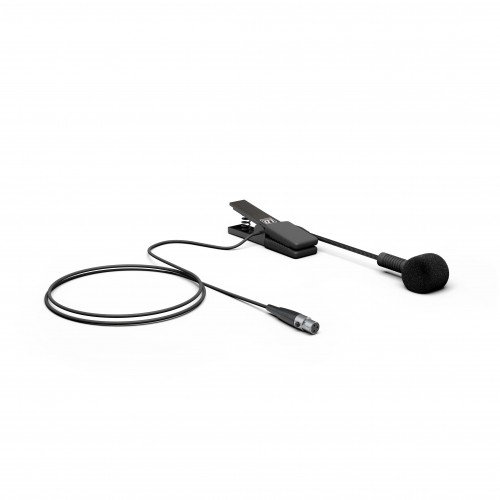

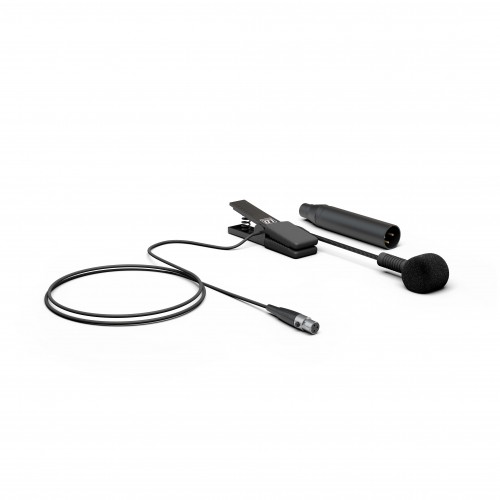

LDWS1000MW – LD Systems WS 1000 MW Clip Microphone for Brass Instruments
Type
Microphones
Frequency response
50 – 18.000 Hz
Directivity
Cardioid
Sensitivity (quiescent voltage @ 1kHz)
– 45 dB +/- 3 dB
Nominal impedance
250 Ohm(s)
Max. SPL (1% THD @ 1kHz)
133 dB
Phantom power requierements
5 V
Microphone input
Mini-XLR (3-pin, female)
Cable length
1.5 m
Accessories (included)

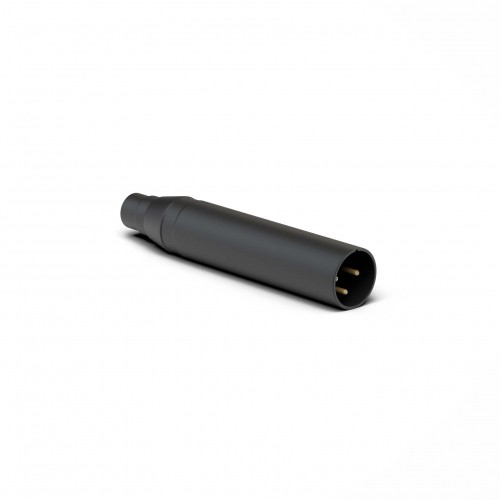

Foam windscreen , Phantom power adapter LDPHA
Weight
0,05 kg
Features
70 mm gooseneck
