LD Systems U506 HHD
Καλέστε μας για τιμή
LD Systems U506 HHD
- Περιγραφή
Περιγραφή

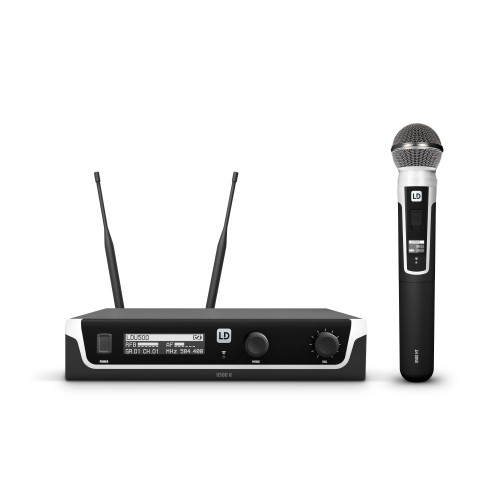

LD Systems U506 HHD
Wireless Microphone System with Dynamic Handheld Microphone – 655 – 679 MHz.
- True diversity UHF wireless system
- Shock-mounted dynamic and condenser microphone capsules
- Automatic channel scan
- Easy one-touch infrared frequency syncing
- Pilot tone squelch circuit prevents noise
- Switchable RF transmitter output (2, 10 or 30 mW)
- Rugged enclosures
- High-contrast OLED display
Product type
Wireless Microphone Systems
Type
Handhelds
Transmission frequency range
655 – 679 MHz
Weight
2,62 kg

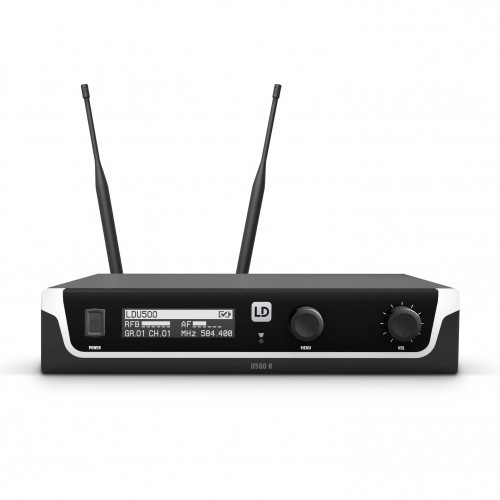

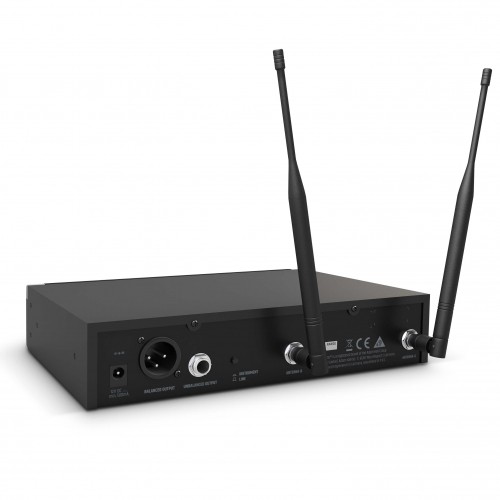

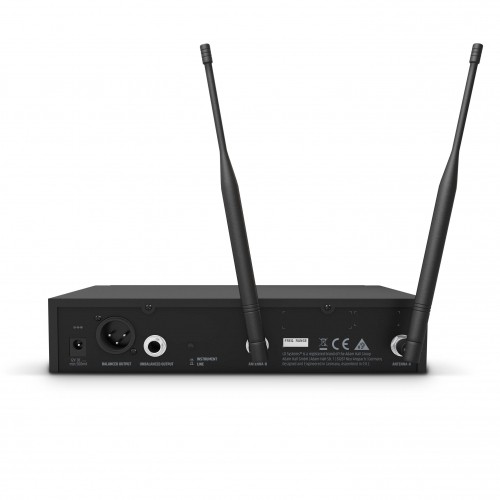

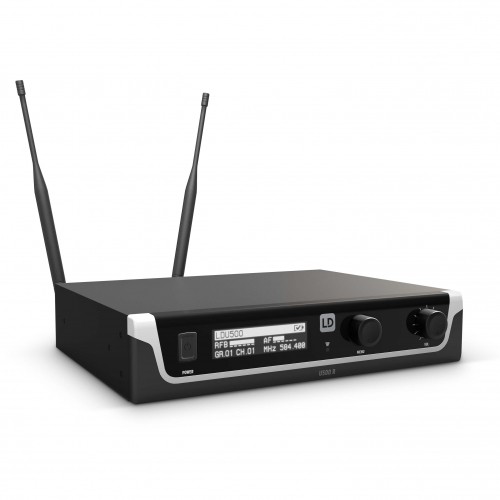

LDU506R – LD Systems U506 R Receiver
Product type
Wireless Microphone System Accessories
Type
true diversity
Modulation Type
FM
Channels
96 (8 groups of 12 channels)
Groups
8
Antenna inputs
2
Antenna connector
BNC
Frequency response
30 – 16000 Hz
Noise reduction
Squelch
Total Harmonic Distortion (THD)
< 0.3 %
Signal-to-noise ratio
> 100 dB
Audio output, balanced
balanced XLR – 12 dBV / 6.3 mm TRS – 18 dBV
Controls
digital encoder , Power On/Off , volume
Audio output, unbalanced
6.3 mm jack
Operating voltage
12 – 18 V DC
Max. output level
+10 dBu
Weight
0,85 kg
Other features
channel search function , IR frequency synchronisation , Pilot tone
Indicators
OLED Display
Operating voltage
12 V DC, 500 mA
Width
212 mm
Height
44 mm
Depth
159 mm
Accessories (included)
2 x antenna , Audio cable , power adapter

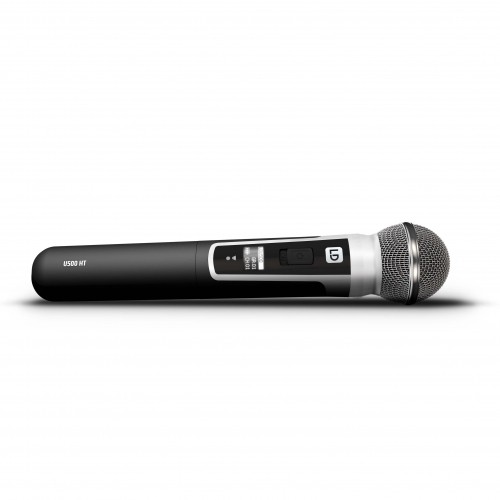

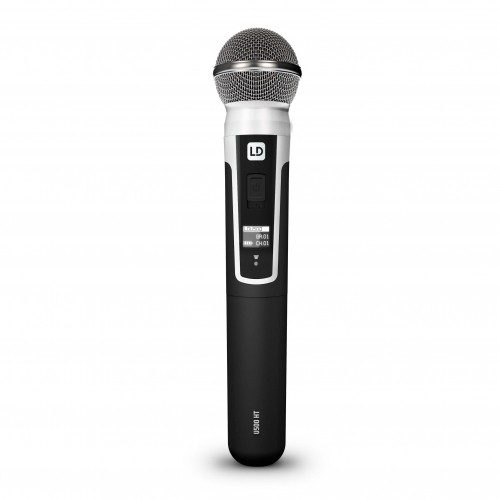

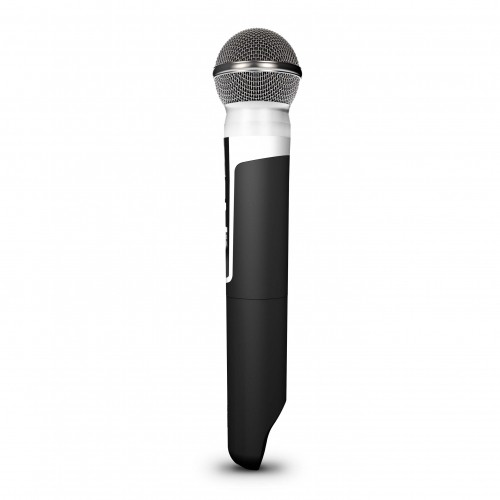

LDU506MD – LD Systems U506 MD Dynamic handheld microphone
Type
Microphones
Microphone type
Dynamic
Directivity
Cardioid
Frequency response
60 – 16,000 Hz
Rated HF output power
Variable (2mW, 10mW, 30mW)
Controls
menu , Set
Operating voltage
2 x 1.5 V AA
Operating time
>10 h (with alkaline batteries)
Length
252 mm
Diameter
52 mm
Weight
0,25 kg
Other features
interchangeable capsule , Pilot tone squelch, switchable gain , switchable gain , switchable RF power
