LD Systems U506 HHC 2
Καλέστε μας για τιμή
LD Systems U506 HHC 2
- Περιγραφή
Περιγραφή

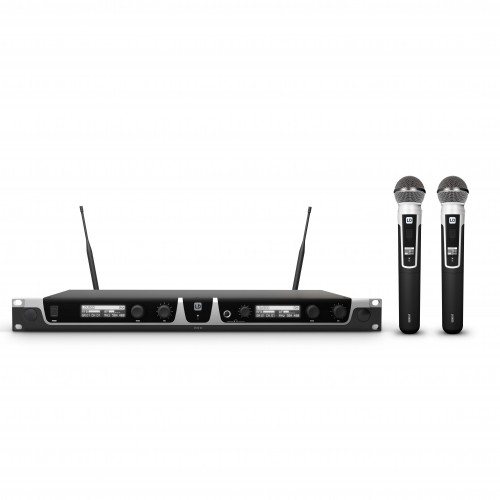

LD Systems U506 HHC 2
Wireless Microphone System with 2 x Condenser Handheld Microphone
- True diversity UHF wireless system
- Shock-mounted dynamic and condenser microphone capsules
- Automatic channel scan
- Easy one-touch infrared frequency syncing
- Pilot tone squelch circuit prevents noise
- Switchable RF transmitter output (2, 10 or 30 mW)
- Rugged enclosures
- High-contrast OLED display
Product type
Wireless Microphone Systems
Type
Handhelds
Transmission frequency range
655 – 679 MHz
Weight
5,435 kg

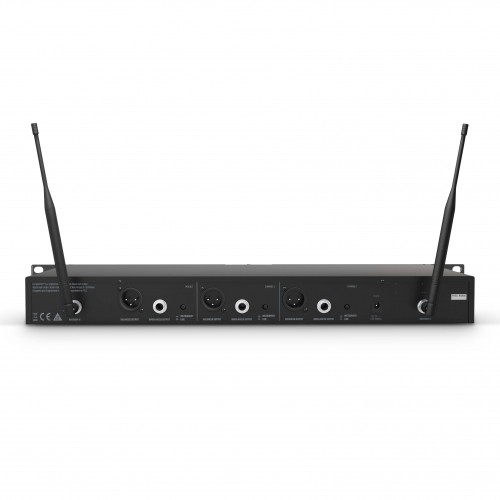

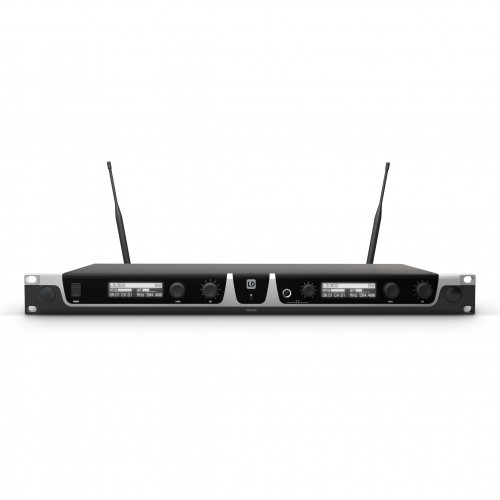

LDU506R2 – LD Systems U506 R2 Dual receiver
Product type
Wireless Microphone System Accessories
Type
true diversity
Modulation Type
FM
Channels
2 x 96 (8 groups of 12 channels)
Groups
8
Antenna inputs
2
Antenna connector
BNC
Frequency response
60 – 16.000 Hz
Signal-to-noise ratio
> 105 dB
Noise reduction
Squelch
Audio output, balanced
2 x XLR
Controls
volume headphones
Indicators
2 x audio level , 2 x HF level A/B , 2 x multifunction LC display
Operating voltage
1,000 mA , 13.5 V DC
Audio mix output, balanced
XLR
Audio mix output, unbalanced
6.3 mm jack
Max. output level
symmetrical -8 dBu
Headphones ouput
1
Headphones outputs
6.3 mm TRS
Weight
2,05 kg
Other features
channel search function , IR frequency synchronisation
Width
483 mm
Height
45 mm
Depth
190 mm
Accessories (included)
2 x antenna , Batteries , Power supply

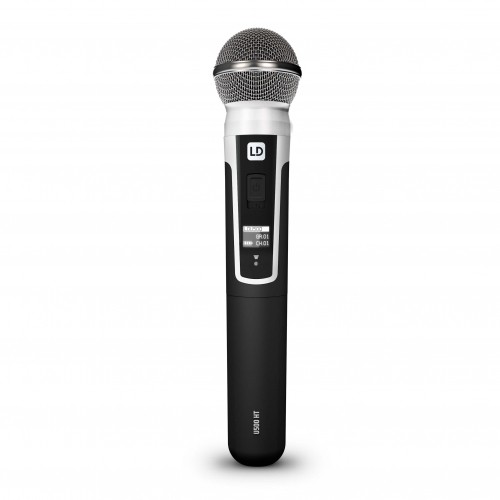

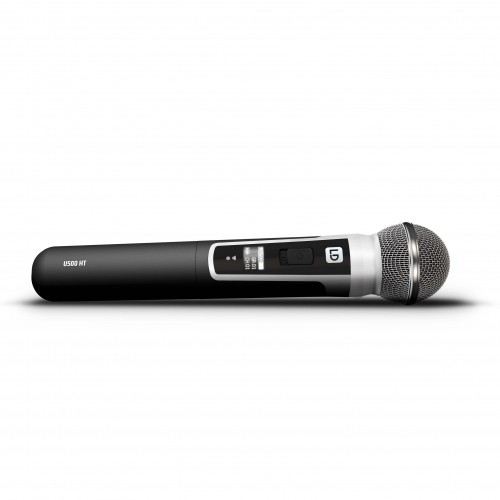

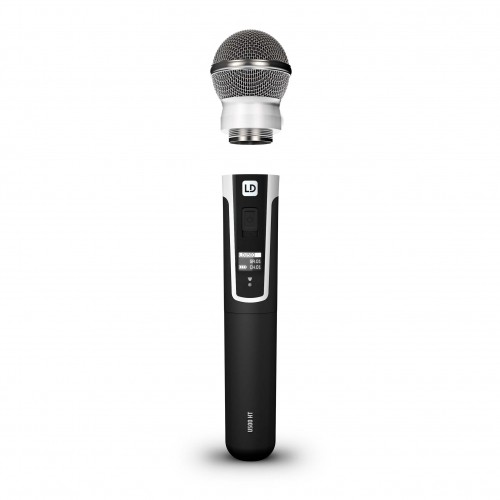

LDU506MC – LD Systems U506 MC Condenser handheld microphone
Type
Microphones
Channels
160
Groups
10
Microphone type
condenser
Directivity
Cardioid
Signal-to-noise ratio
95 dB
Rated HF output power
Variable (2mW, 10mW, 30mW)
Controls
Power
Indicators
multifunction LC display
Operating voltage
2 x AA battery
Operating time
>10 h (with alkaline batteries)
Length
255 mm
Diameter
49 mm
Weight
0,25 kg
Other features
incl. batteries
