LD Systems U308 HHD
Wireless Microphone System with Dynamic Handheld Microphone – 863 – 865 MHz+ 823 – 832 MHz
- Diversity UHF wireless system with FM technology
- 12 selectable channels
- 100 m transmission range in ideal conditions
- Simultaneous operation of up to 6 systems
- ASC infrared transmitter and receiver syncing
- Pilot tone squelch
- 10 h transmitter operation on two AA batteries
- Metal housing
- Optional rackmount kit available as accessory

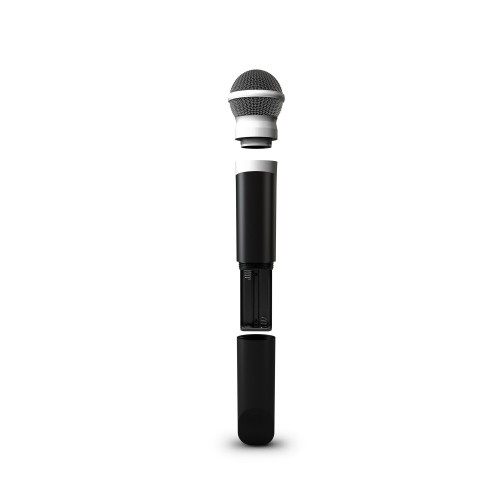

- U500® replacement mic heads fit the U300® handheld
Product type
Wireless Microphone Systems
Type
Set
Transmission frequency range
823 – 832 MHz , 863 – 865 MHz
Weight
0,94 kg

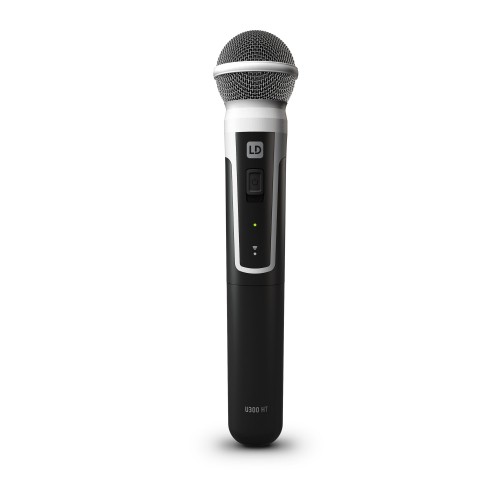

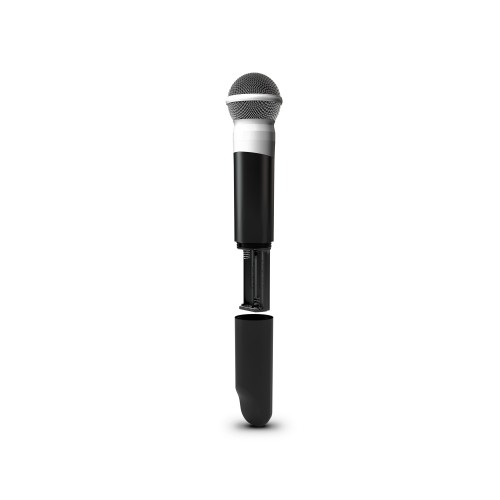

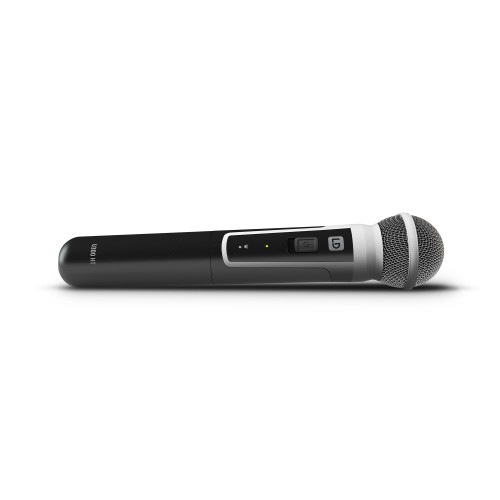

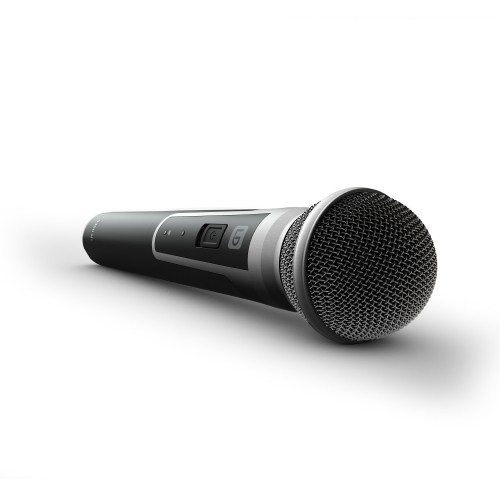

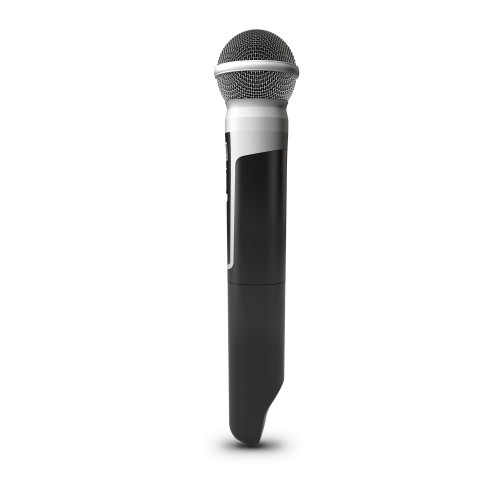

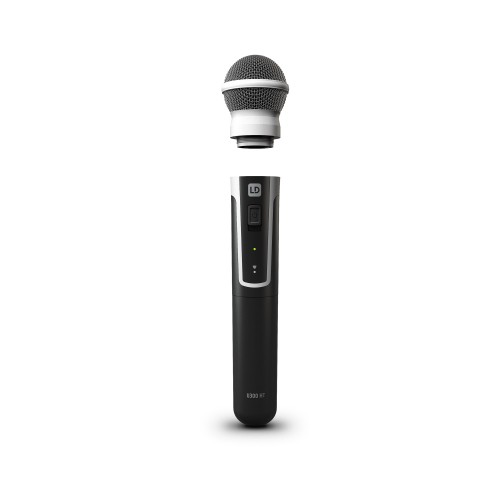

LDU308MD – LD Systems U308 MD Dynamic handheld microphone
Product type
Wireless Microphone System Accessories
Type
Microphones
Channels
12
Groups
1
Microphone type
Dynamic
Directivity
Cardioid
Frequency response
55 – 16000 Hz
Signal-to-noise ratio
104 dB
Rated HF output power
10 mW
Operating time
>10 h
Length
257 mm
Diameter
50 mm
Other features
IR frequency synchronisation , Pilot tone
Controls
Power On/Off
Indicators
ASC IR Sync (Green/Amber Blinking LED) , Battery (low battery: red) , Power LED (Power ON: green)
Operating voltage
2 x AA battery
Weight
0,235 kg

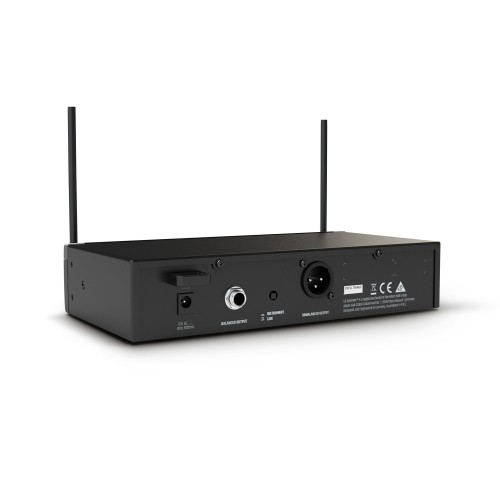

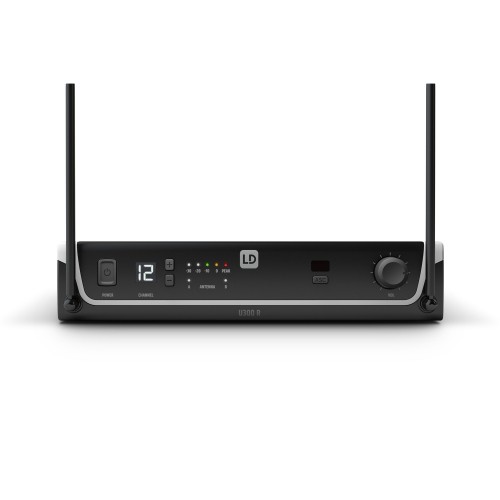

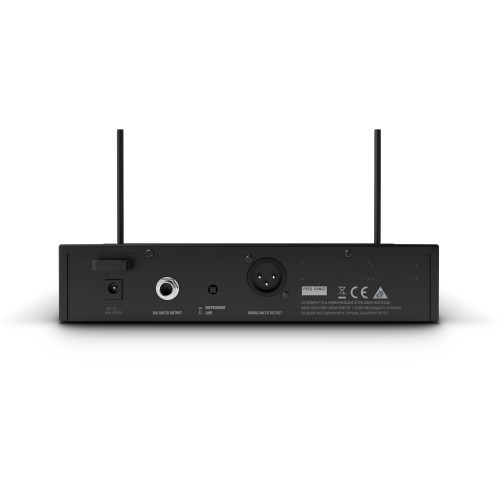

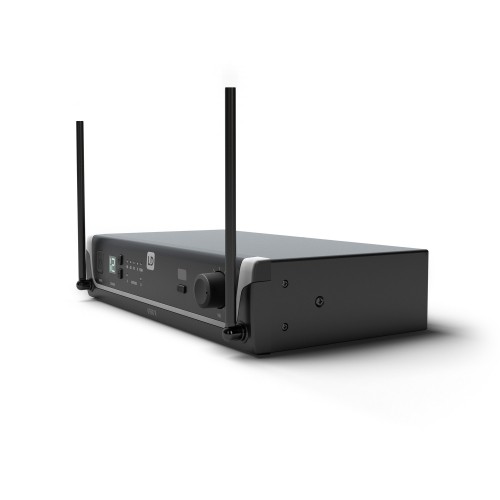

LDU308R – LD Systems U308 R Receiver
Type
Receivers
Modulation Type
FM
Antenna inputs
2 x fixed
Frequency response
25 – 16,000 Hz
Noise reduction
Squelch
Transmission optimization
Pilot tone
Total Harmonic Distortion (THD)
< 0.3 %
Audio output, balanced
XLR
Audio output, unbalanced
6.3 mm jack, switchable unbalanced output level
Max. output level
+10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr) dBu
Controls
5 LED VU meters , ASC Sync , Channel down , Channel up , Line/Instrument Level , Power , volume
Indicators
5 LED VU meters , Antenna A/B , LC display
Operating voltage
12 V DC – 18 V DC (500 mA), external power supply
Width
211 mm
Height
43 mm
Depth
120 mm
Weight
0,7 kg
Accessories (included)
2 x AA battery , Audio cable , Power supply
