LD Systems U305 BPH 2
Dual – Wireless Microphone System with 2 x Bodypack and 2 x Headset – 584 – 608 MHz
- UHF diversity wireless system with FM technology
- 12 selectable channels
- 100 metre range under ideal conditions
- Up to 6 systems can be used simultaneously
- ASC infrared synchronisation between transmitter and receiver
- Squelch with pilot tone
- 10-hour transmitter operating time with two AA batteries
- Receiver in sturdy metal housing
- Rack mounting kit included
roduct type
Wireless Microphone Systems
Type
Set
Transmission frequency range
584 – 608 MHz
Weight
1,35 kg

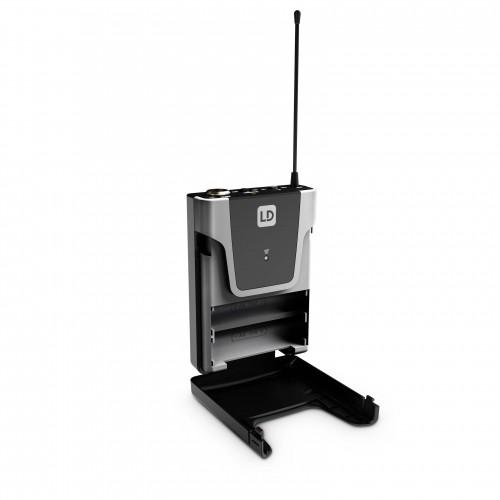

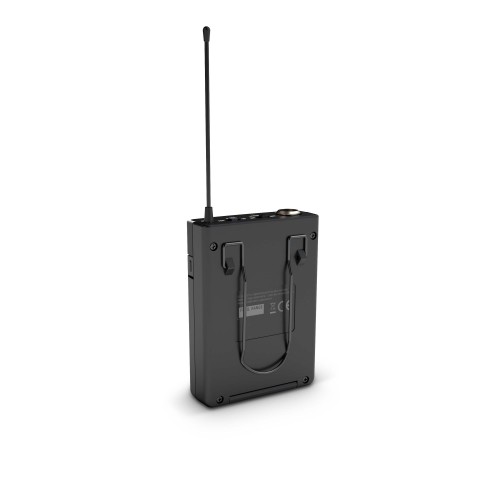

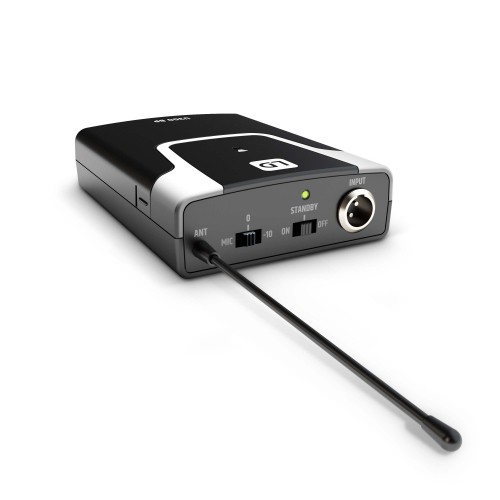

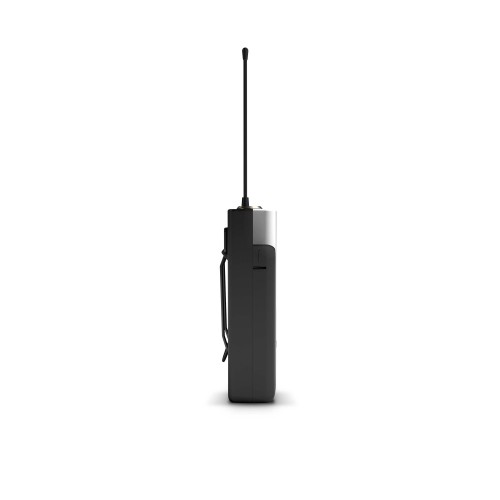

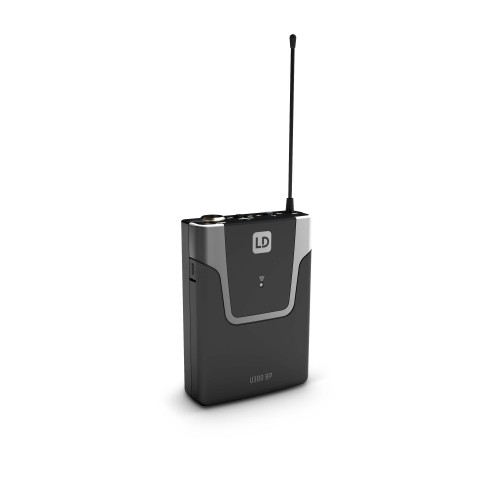

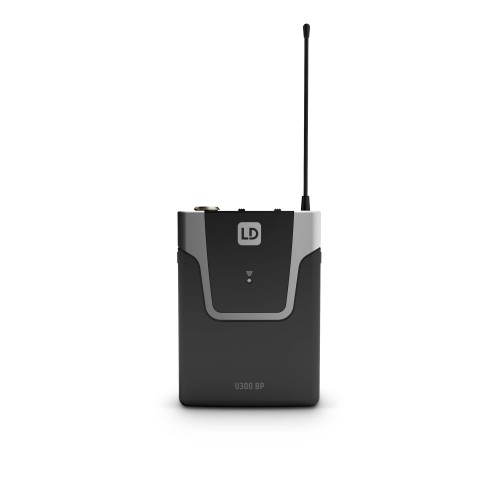

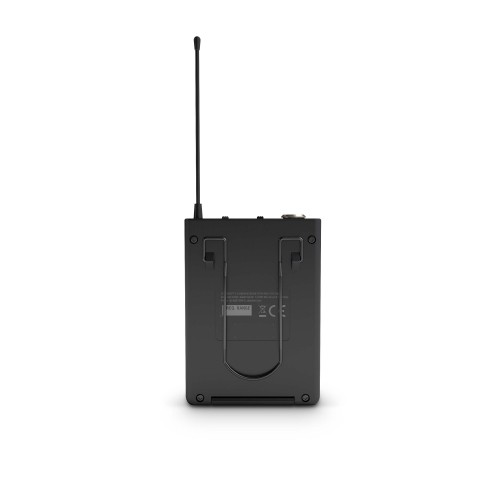

LDU305BP – LD Systems U305 BP Bodypack transmitter
Product type
Wireless Microphone System Accessories
Type
Bodypack
Weight
0,085 kg
Channels
12
Groups
1
Inputs
Mini-XLR (Phantom Powered Low-Z / High-Z Instrument)
Signal-to-noise ratio
104 dB
Frequency response
25 – 16,000 Hz
Rated HF output power
10 mW
Controls
Gain (3-way switch) , Power On/Off
Operating voltage
2 x AA battery
Operating time
>10 h
Indicators
ASC IR Sync (Green/Amber Blinking LED) , Battery (low battery: red) , Power LED (Power ON: green)
Other features
Belt clip , IR frequency synchronisation , Pilot tone
Width
65 mm
Height
91 mm
Depth
25 mm

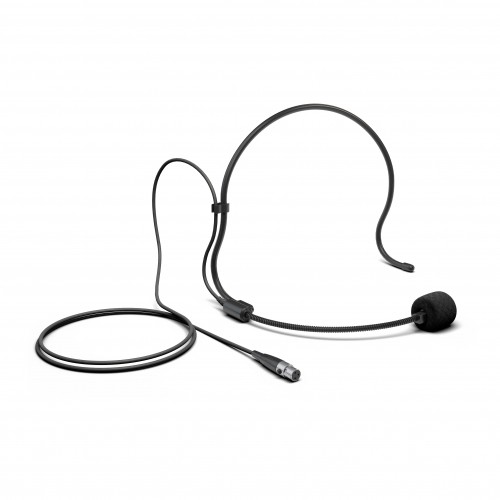

LDWS100MH1 – LD Systems WS 100 MH 1 Headset
Type
Headsets
Weight
0,049 kg
Directivity
Cardioid
Nominal impedance
680 Ohm(s)
Frequency response
20 – 20.000 Hz
Phantom power requierements
5 V
Microphone input
Mini-XLR (3-pin, female)
Accessories (included)
Foam windscreen

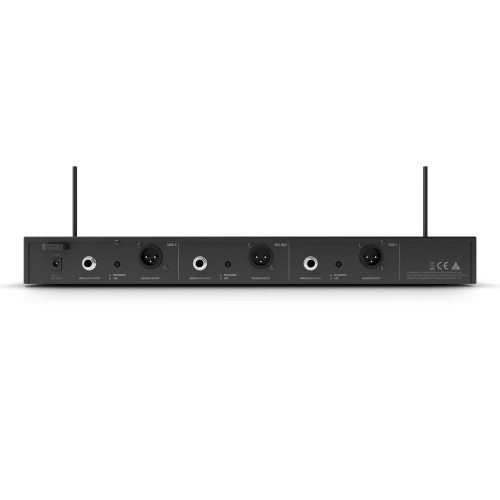

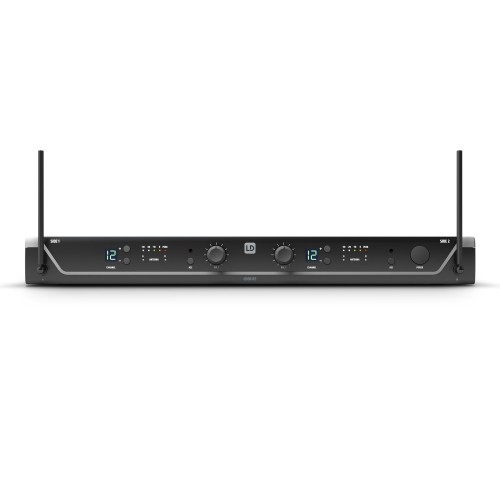

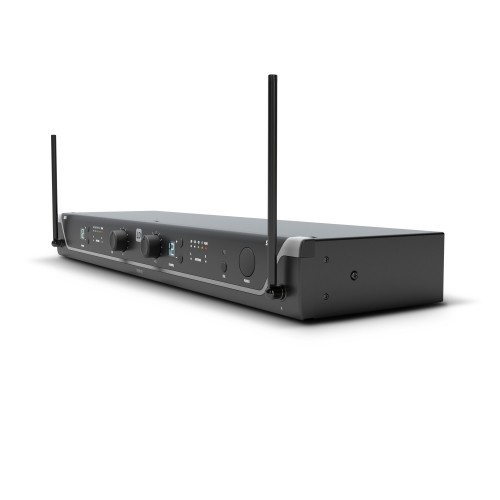

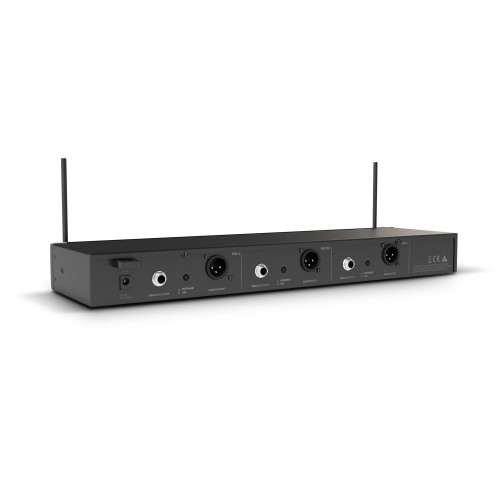

LDU305R2 – LD Systems U305 R2 Dual Receiver- 584 – 608 MHz
Type
Receivers
Modulation Type
FM
Weight
1,265 kg
Antenna inputs
2 x fixed
Frequency response
35 – 16000 Hz
Noise reduction
Squelch
Transmission optimization
Pilot tone
Total Harmonic Distortion (THD)
< 0.3 %
Controls
2 x Volume , Channel down , Channel up , Line/Instrument Level
Audio output, balanced
3 x XLR
Audio output, unbalanced
6.3 mm jack , switchable unbalanced output level ( Line/Instrument )
Audio mix output, balanced
XLR
Accessories (included)
2 x AA batteries , Power supply , Rack kit
Audio mix output, unbalanced
6.3 mm jack
Max. output level
+10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr) dBu
Indicators
5-LED VU-Meter , Antenna A/B , LC display
Operating voltage
12 V DC, 500 mA
Width
410 mm
Height
43 mm
Depth
120 mm
