LD Systems U305 BPH
250.00€ Τιμή Internet
LD Systems U305 BPH
- Περιγραφή
Περιγραφή

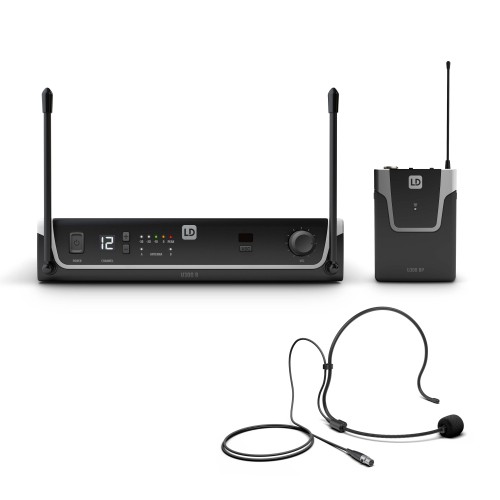

LD Systems U305 BPH
Wireless Microphone System with Bodypack and Headset – 584 – 608 MHz
- Diversity UHF wireless system with FM technology
- 12 selectable channels
- 100 m transmission range in ideal conditions
- Simultaneous operation of up to 6 systems
- ASC infrared transmitter and receiver syncing
- Pilot tone squelch
- 10 h transmitter operation on two AA batteries
- Metal housing
- Optional rackmount kit available as accessory
Product type
Wireless Microphone Systems
Type
Set
Transmission frequency range
584 – 608 MHz
Weight
0,85 kg

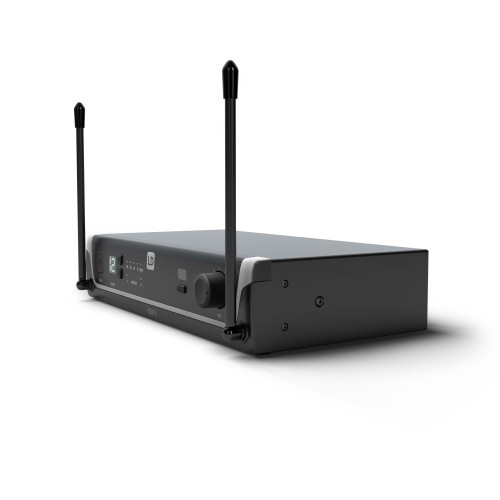

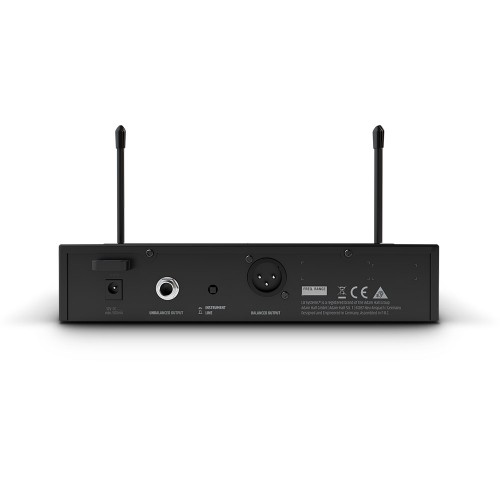

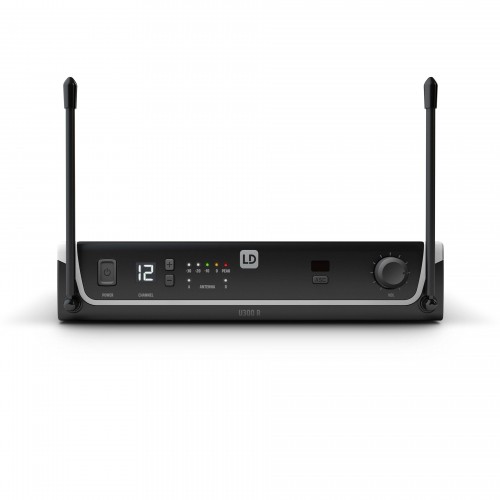

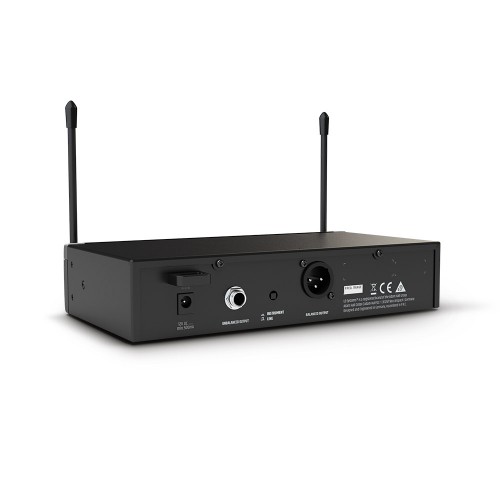

LDU305R – LD Systems U305 R Receiver
Product type
Wireless Microphone System Accessories
Type
Receivers
Modulation Type
FM
Frequency response
25 – 16,000 Hz
Channels
12
Groups
1
Antenna inputs
2 x fixed
Noise reduction
Squelch
Transmission optimization
Pilot tone
Total Harmonic Distortion (THD)
< 0.3 %
Signal-to-noise ratio
104 dB
Controls
ASC Sync , Channel down , Channel up , Line/Instrument Level , Power , volume
Indicators
5 LED VU meters , Antenna A/B , LC display
Audio output, balanced
XLR
Operating voltage
12 V DC – 18 V DC (500 mA), external power supply
Audio output, unbalanced
6.3 mm jack, switchable unbalanced output level
Accessories (included)
2 x AA battery , Audio cable , Power supply
Width
211 mm
Max. output level
+10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr) dBu
Weight
0,7 kg
Height
43 mm
Depth
120 mm
Other features
IR frequency synchronisation

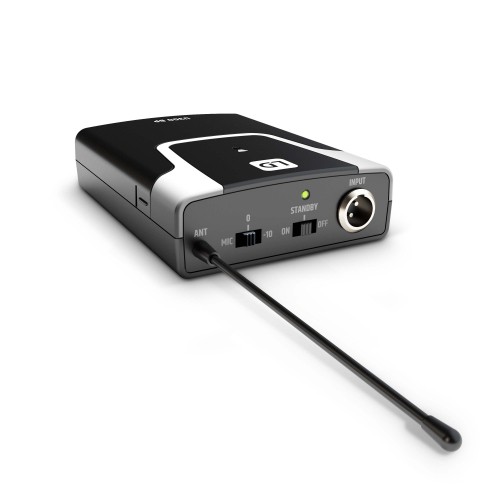

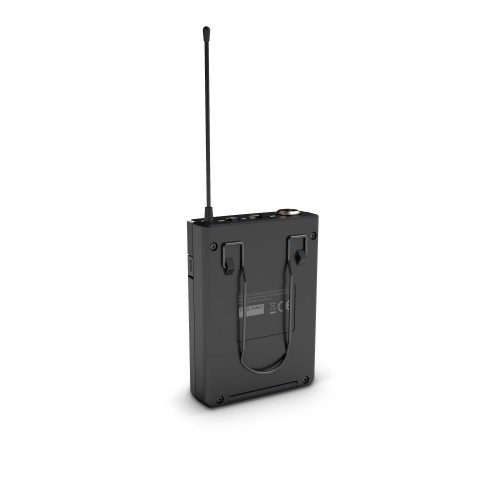

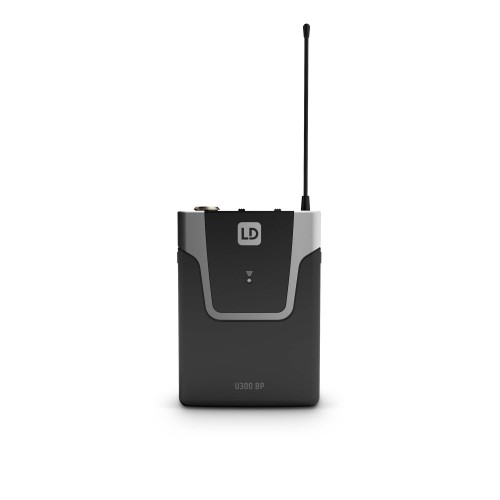

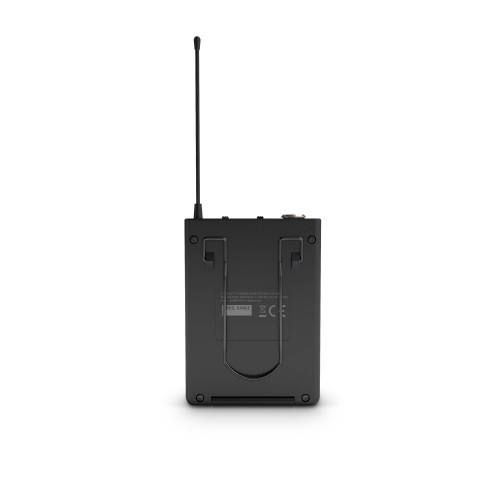

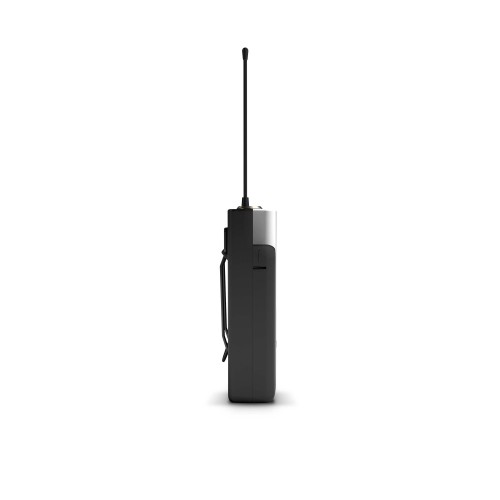

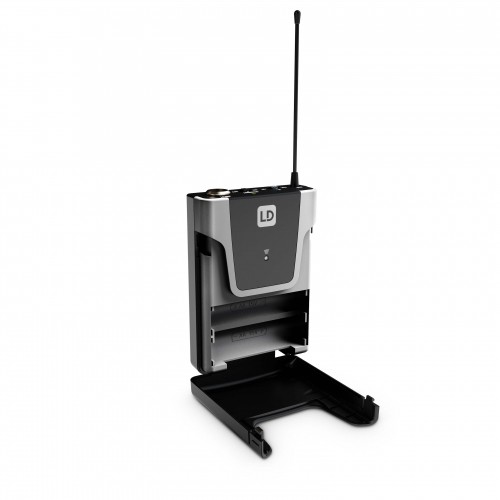

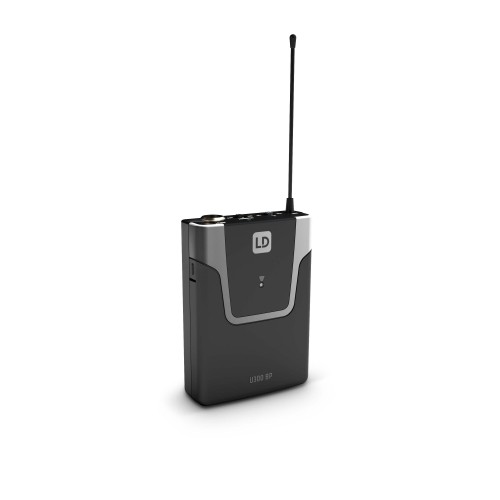

LDU305BP – LD Systems U305 BP Bodypack transmitter
Type
Bodypack
Inputs
Mini-XLR (Phantom Powered Low-Z / High-Z Instrument)
Rated HF output power
10 mW
Controls
Gain (3-way switch) , Power On/Off
Indicators
ASC IR Sync (Green/Amber Blinking LED) , Battery (low battery: red) , Power LED (Power ON: green)
Operating voltage
2 x AA battery
Operating time
>10 h
Width
65 mm
Weight
0,085 kg
Height
91 mm
Depth
25 mm
Other features
Belt clip , Pilot tone

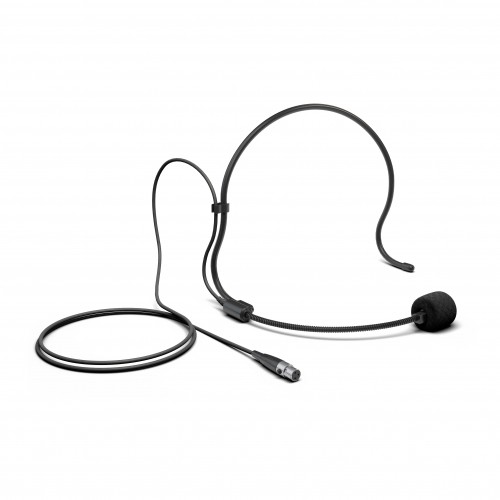

LDWS100MH1 – LD Systems WS 100 MH 1 Headset
Type
Headsets
Frequency response
20 – 20.000 Hz
Directivity
Cardioid
Nominal impedance
680 Ohm(s)
Phantom power requierements
5 V
Microphone input
Mini-XLR (3-pin, female)
Accessories (included)
Foam windscreen
Weight
0,049 kg
