LD Systems U305.1 BPW
Wireless Microphone System with Bodypack and Brass Instrument Microphone
- UHF diversity wireless system with FM technology
- 12 selectable channels
- 100 metre range under ideal conditions
- Up to 6 systems can be used simultaneously
- ASC infrared synchronisation between transmitter and receiver
- Squelch with pilot tone
- 10-hour transmitter operating time with two AA batteries
- Receiver in sturdy metal housing
- Optional rack mounting kit as accessory
Product type
Wireless Microphone Systems
Type
Set
Transmission frequency range
514 – 542 MHz
Weight
0,84 kg

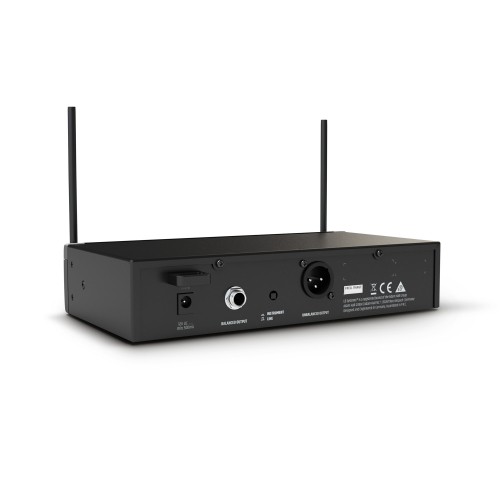

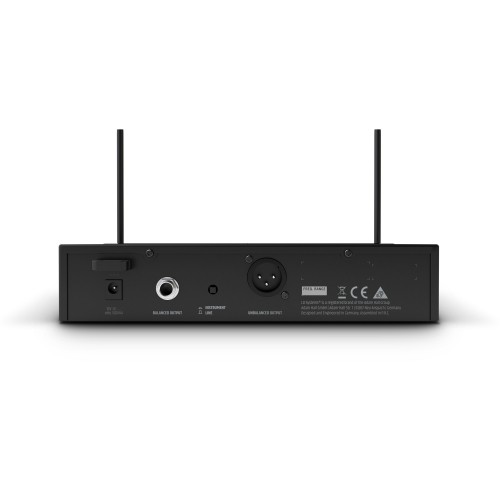

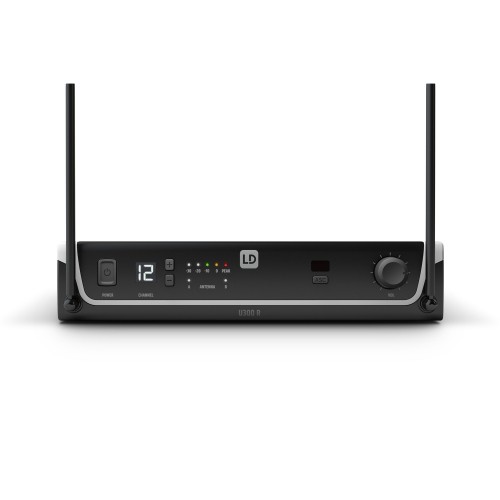

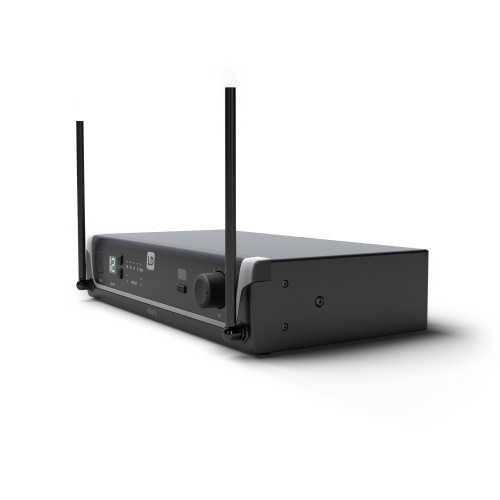

LDU3051R – LD Systems U305.1 R Receiver
Product type
Wireless Microphone System Accessories
Type
Receivers
Modulation Type
FM
Frequency response
25 – 16.000 Hz
Channels
12
Groups
1
Antenna inputs
2 x fixed
Noise reduction
Squelch
Transmission optimization
Pilot tone
Total Harmonic Distortion (THD)
< 0.3 %
Signal-to-noise ratio
104 dB
Controls
ASC Sync , Channel down , Channel up , Line/Instrument Level , Power , volume
Indicators
5 LED VU meters , Antenna A/B , LC display
Audio output, balanced
XLR
Operating voltage
12 V DC – 18 V DC (500 mA), external power supply
Audio output, unbalanced
6.3 mm jack, switchable unbalanced output level
Audio mix output, balanced
XLR
Accessories (included)
2 x AA batteries , Audio cable , Power supply
Width
211 mm
Audio mix output, unbalanced
6.3 mm jack
Max. output level
+10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr) dBu
Weight
0,7 kg
Height
43 mm
Headphones outputs
6.3 mm TRS
Depth
120 mm
Other features
IR frequency synchronisation

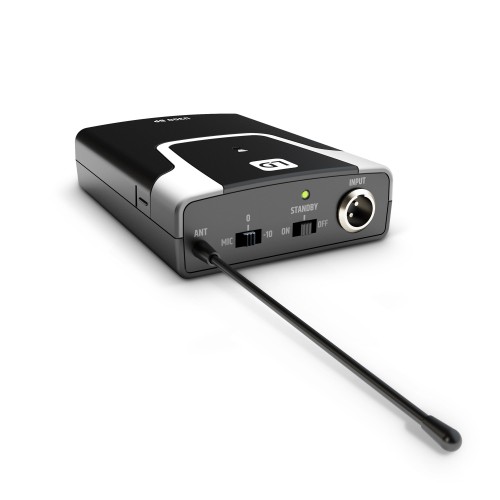

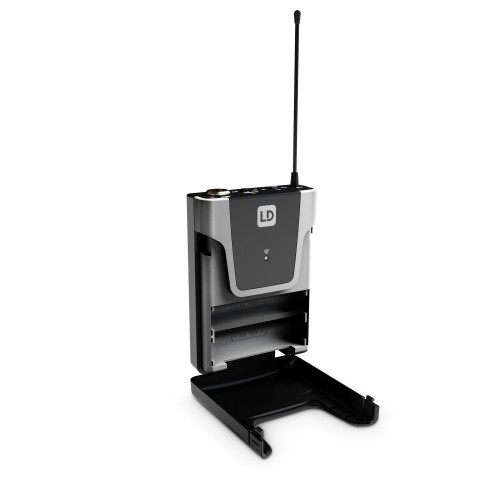

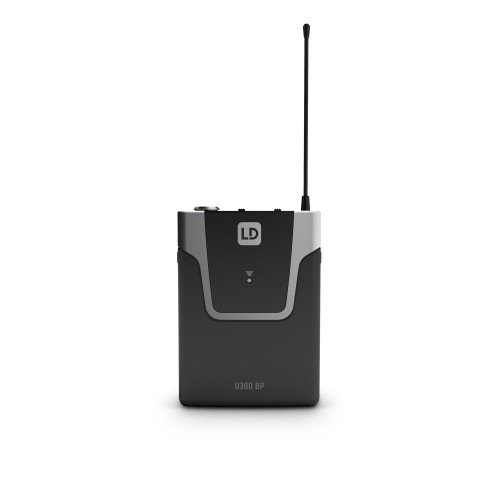

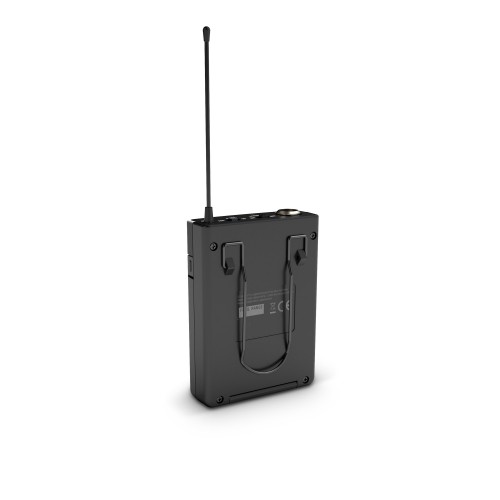

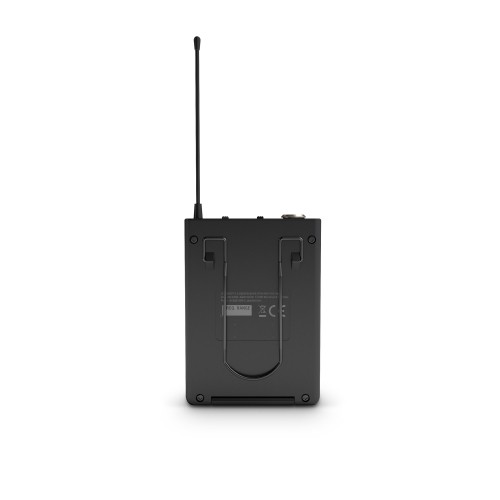

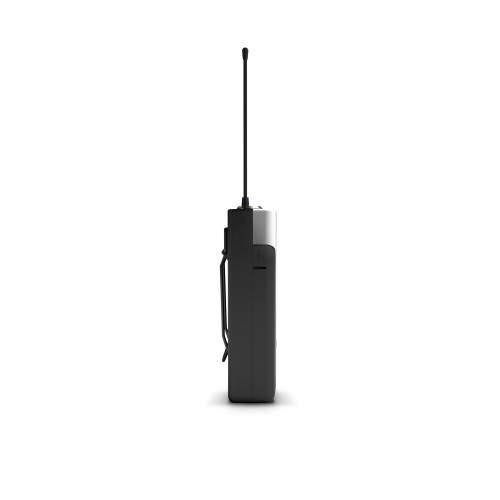

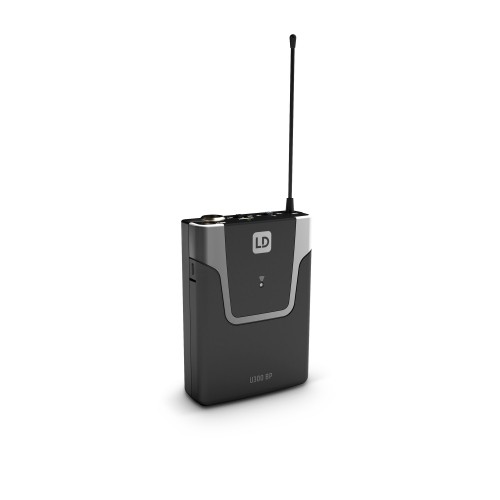

LDU3051BP – LD Systems U305.1 BP Body Pack transmitter
Type
Bodypack
Inputs
Mini-XLR (Phantom Powered Low-Z / High-Z Instrument)
Rated HF output power
10 mW
Controls
Gain (3-way switch) , Power On/Off
Indicators
ASC IR Sync (Green/Amber Blinking LED) , Battery (low battery: red) , Power LED (Power ON: green)
Operating voltage
2 x AA battery
Operating time
>10 h
Width
65 mm
Weight
0,085 kg
Height
91 mm
Depth
25 mm
Other features
Belt clip , Pilot tone

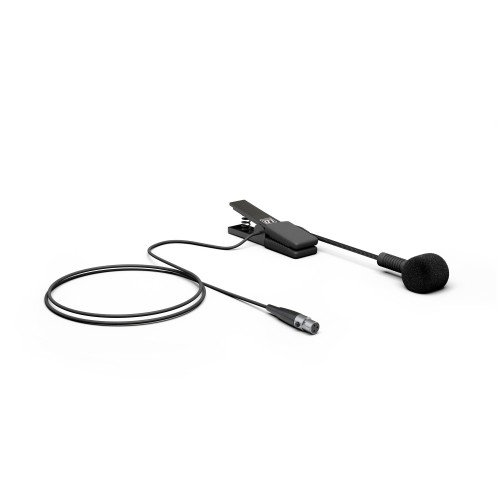

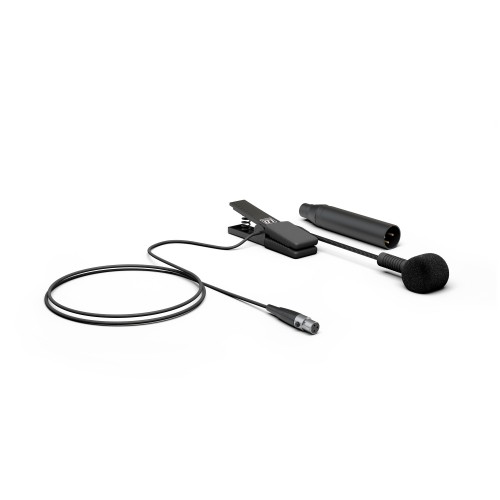

LDWS1000MW – LD Systems WS 1000 MW Clip Microphone for Brass Instruments
Type
Microphones
Frequency response
50 – 18.000 Hz
Directivity
Cardioid
Sensitivity (quiescent voltage @ 1kHz)
– 45 dB +/- 3 dB
Nominal impedance
250 Ohm(s)
Max. SPL (1% THD @ 1kHz)
133 dB
Phantom power requierements
5 V
Microphone input
Mini-XLR (3-pin, female)
Cable length
1.5 m
Accessories (included)

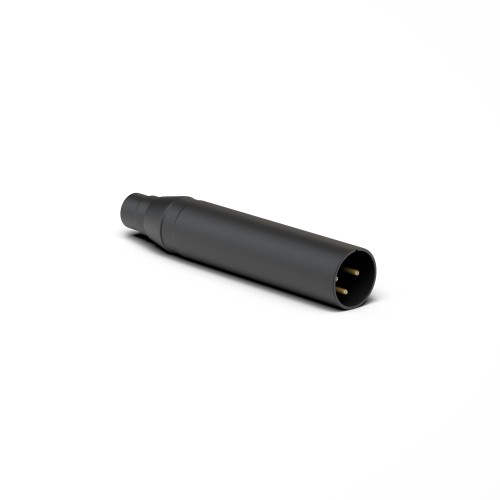

Foam windscreen , Phantom power adapter LDPHA
Weight
0,05 kg
Features
70 mm gooseneck
