LD Systems U305.1 BPG
Wireless Microphone System with Bodypack and Guitar Cable
- UHF diversity wireless system with FM technology
- 12 selectable channels
- 100 metre range under ideal conditions
- Up to 6 systems can be used simultaneously
- ASC infrared synchronisation between transmitter and receiver
- Squelch with pilot tone
- 10-hour transmitter operating time with two AA batteries
- Receiver in sturdy metal housing
- Optional rack mounting kit as accessory
Product type
Wireless Microphone Systems
Type
Set
Transmission frequency range
514 – 542 MHz
Weight
0,83 kg

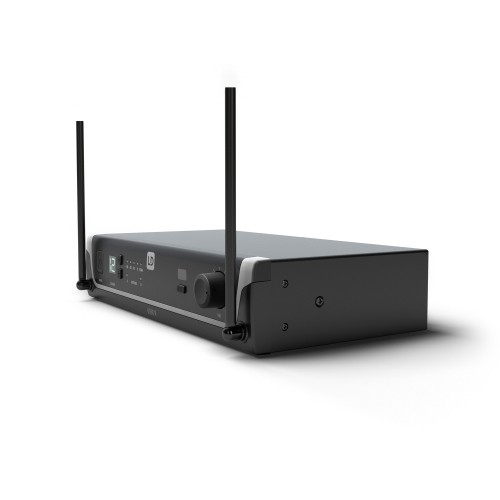

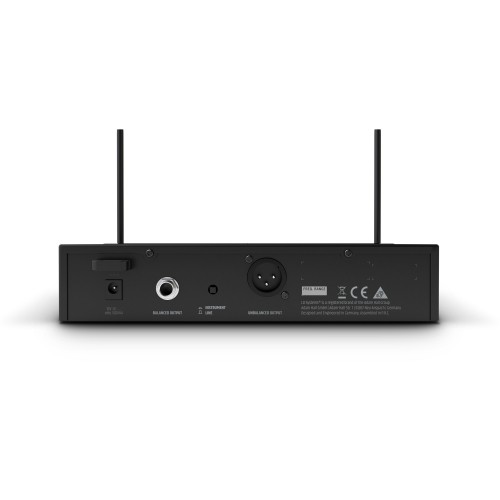

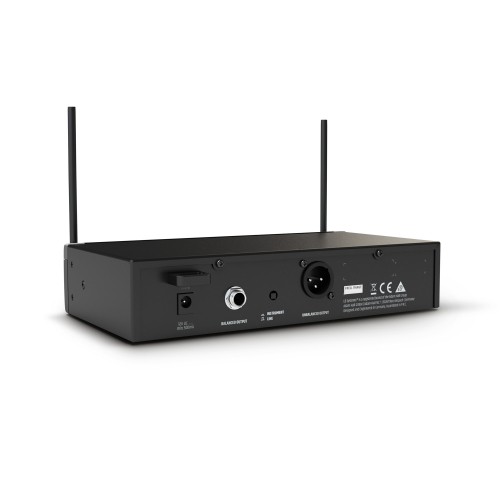

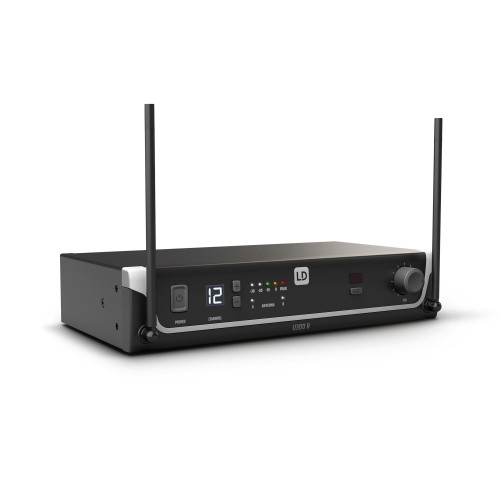

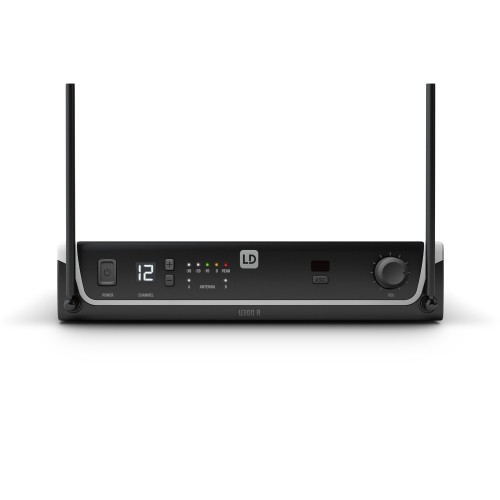

LDU3051R – LD Systems U305.1 R Receiver
Product type
Wireless Microphone System Accessories
Type
Receivers
Modulation Type
FM
Channels
12
Weight
0,7 kg
Groups
1
Antenna inputs
2 x fixed
Frequency response
25 – 16.000 Hz
Noise reduction
Squelch
Transmission optimization
Pilot tone
Total Harmonic Distortion (THD)
< 0.3 %
Signal-to-noise ratio
104 dB
Controls
ASC Sync , Channel down , Channel up , Line/Instrument Level , Power , volume
Indicators
5 LED VU meters , Antenna A/B , LC display
Audio output, balanced
XLR
Operating voltage
12 V DC – 18 V DC (500 mA), external power supply
Audio output, unbalanced
6.3 mm jack, switchable unbalanced output level
Audio mix output, balanced
XLR
Width
211 mm
Audio mix output, unbalanced
6.3 mm jack
Max. output level
+10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr) dBu
Height
43 mm
Headphones outputs
6.3 mm TRS
Depth
120 mm
Other features
IR frequency synchronisation
Accessories (included)
2 x AA batteries , Audio cable , Power supply

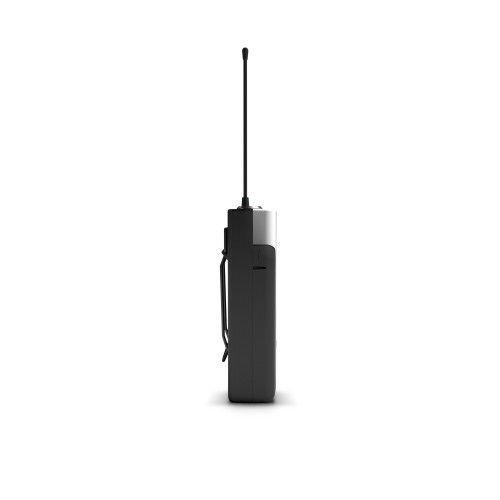

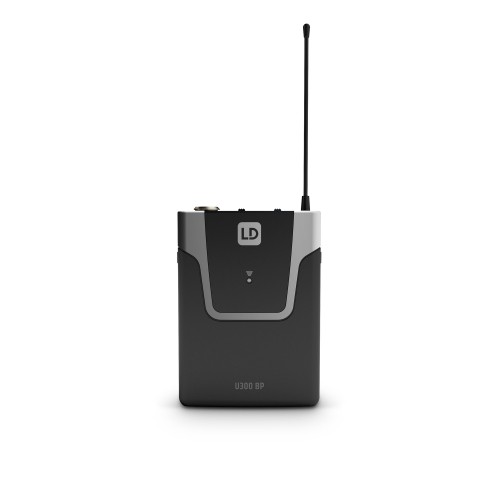

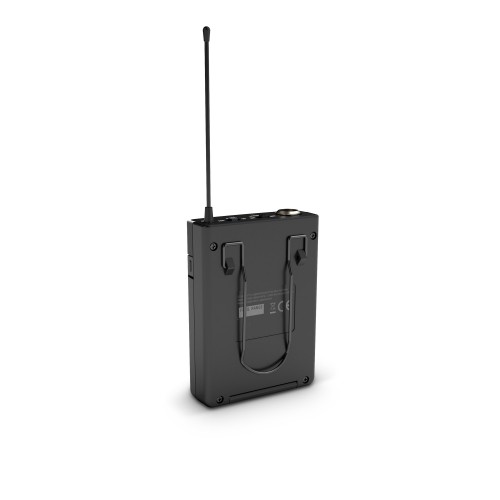

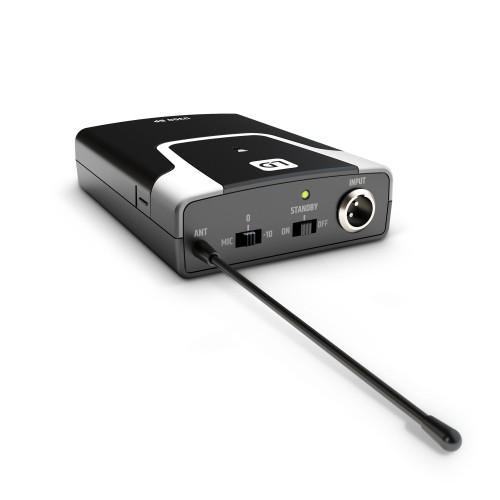

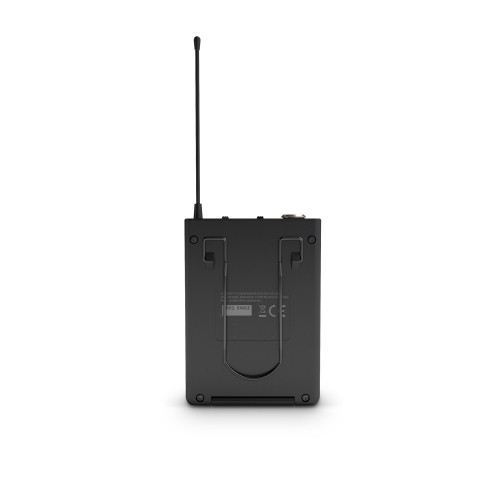

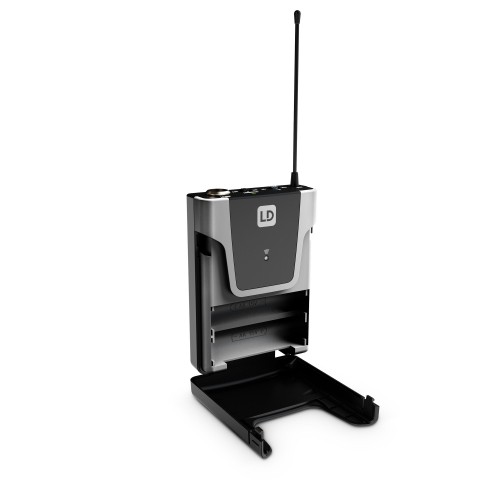

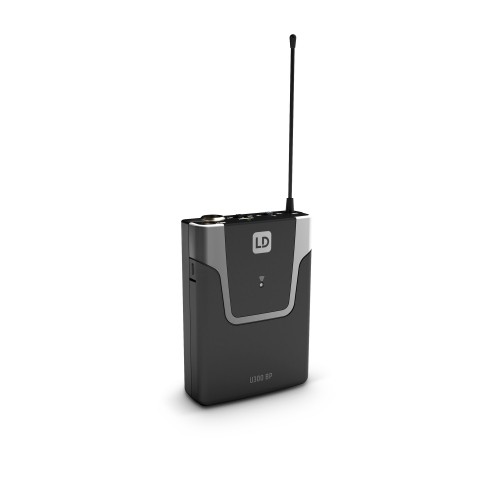

LDU3051BP – LD Systems U305.1 BP Body Pack transmitter
Type
Bodypack
Weight
0,085 kg
Inputs
Mini-XLR (Phantom Powered Low-Z / High-Z Instrument)
Rated HF output power
10 mW
Controls
Gain (3-way switch) , Power On/Off
Indicators
ASC IR Sync (Green/Amber Blinking LED) , Battery (low battery: red) , Power LED (Power ON: green)
Operating voltage
2 x AA battery
Operating time
>10 h
Width
65 mm
Height
91 mm
Depth
25 mm
Other features
Belt clip , Pilot tone
LDU500GC – LD Systems U500 GC Instrument cable for U500® series bodypack
Type
Guitar Cables
Connector 1
Mini-XLR (3-pin, female)
Connector 2
6.3 mm jack
Length
0.8 m
Weight
0,045 kg
