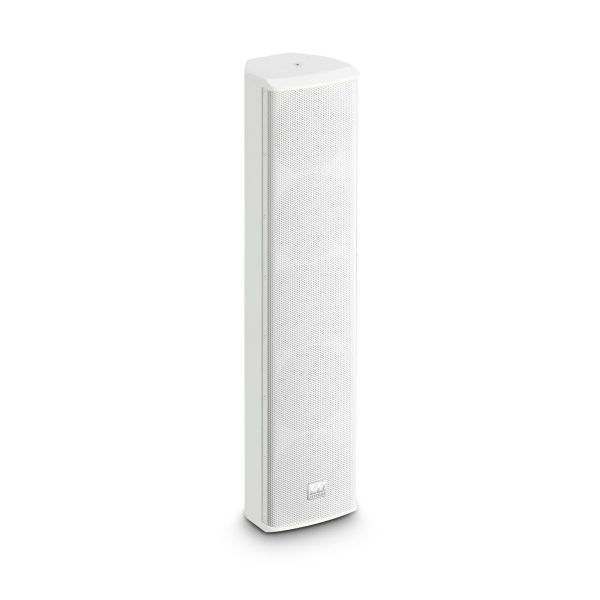

LD Systems SAT 442 G2 W

Description

The LD Systems SAT442G² is an extremely slim installation monitor that can be unobtrusively integrated into almost any environment.

The elegant column design of the SAT442G² achieves a smooth balanced 120° horizontal dispersion with a focused 30° vertical directivity and a maximum sound pressure of 114 db. Four 4″ custom-made woofers and a 1″ compression driver from Celestion provide a balanced playback with a frequency response of 75 Hz to 20 kHz; spring terminals are used as connection. For a powerful, deep bass extension, we recommend the subwoofer installation series from LD Systems.

The rugged cabinet of the SAT442G², featuring a durable textured coating, is made of 12 mm MDF and is available in black or white. M6 inserts and an included universal joint mount (LDSATWMB10W) provide a wide range of possibilities for mounting.

Specifications
Product type
Installation Loudspeakers

Type
Wall-mounted Loudspeaker

Low/mid driver dimensions
4 x 4 “

Woofer size
4 x 101 mm

Woofer magnet
Ferrite

Woofer brand
Custom-made

HF driver dimensions
1 “

HF Driver Size
25 mm

HF driver magnet
Ferrite

HF driver brand
Celestion

Dispersion (H x V)
120° x 30 °

Load rating (RMS)
200 W

Frequency response
75 – 20000 Hz

SPL (1W/1m)
94 dB

Max. SPL
114 dB

Impedance
8 Ohm(s)

Protection circuits
HF Driver

Loudspeaker inputs
1

Speaker input connections
Clamp connector

Speakers per amplifier channel (DSP44/45K)
4

Cabinet material
12 mm MDF

Cabinet surface
texture paint

Cabinet colour
white

Cabinet construction
Closed

Width
140 mm

Height
670 mm

Depth
155 mm

Weight
8 kg

Features
incl. universal joint mount
