LD Systems MAUI 5 W



  • Περιγραφή

Περιγραφή

LD Systems MAUI 5 W

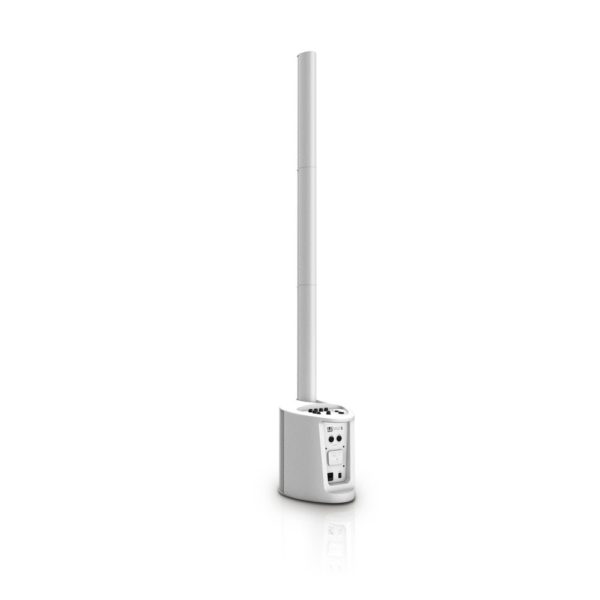

The ultra compact MAUI 5 weighs in at about 11 kg while delivering 800 watts of peak power and a maximum SPL of 120 dB. Providing both sound reinforcement with extended coverage and feedback resistant monitoring the subwoofer base and 3-piece column system assembles in seconds with custom multipin connectors. The junior member of the MAUI family is most easily portable and fits onto any car seat.

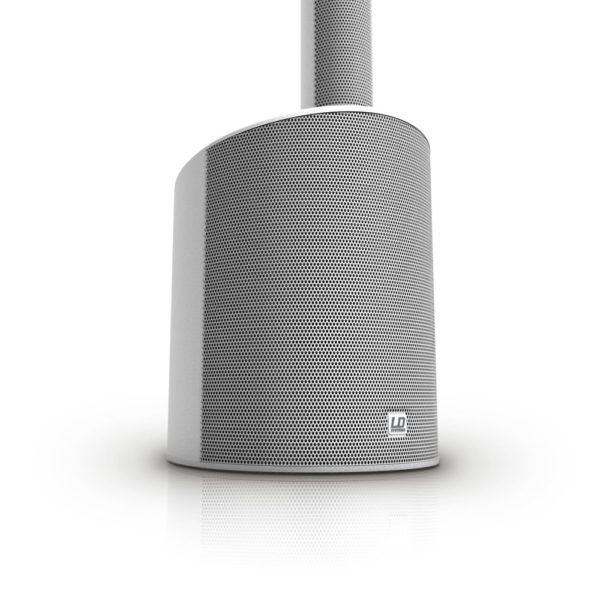

The vented 8″ subwoofer also houses the system’s Class D amplification with overcurrent, short circuit and thermal protection, LD Systems’ proprietary LECC digital processing and a 4-channel mixer. Featuring Bluetooth technology for wireless streaming and microphone, line level and hi-Z inputs which can be used simultaneously the MAUI 5 lets you connect a wide variety of sources including music players and instruments such as keyboards or guitars. Individual level controls, subwoofer and master volumes plus high shelf filtering for room correction enable a perfectly balanced performance. The MAUI 5 is also available in black (LDMAUI5).

Product type
PA Complete Systems

Colour
white

Max. SPL (continuous)
114 dB

Max. SPL (peak)
120 dB

Frequency response
50 – 20000 Hz

Dispersion (H x V)
120° x 20 °

Overall height
1985 mm

Weight
11,3 kg

Other features
4 channel mixer , Bluetooth , DSP-based signal processing

Woofer characteristics


Low/mid driver dimensions
8 “

Woofer size
203.2 mm

Woofer magnet
Ferrite

Woofer brand
Custom-made

Woofer voice coil
2 “

Woofer voice coil (mm)
50.8 mm

Cabinet construction
vented

Cabinet material
ABS plastic

Subwoofer width
305 mm

Subwoofer height
405 mm

Subwoofer depth
395 mm

Mid/Hi System


Midrange size
4 x 3 “

Midrange size
4 x 76.2 mm

Midrange magnet
Neodymium

Midrange brand
Custom-made

Midrange voice coil
1 “

Midrange voice coil
25.4 mm

Mid/Hi system impedance
4 Ohm(s)

Loudspeaker inputs
1

Speaker input connections
Custom-made multipin

Cabinet construction mid/high
Closed

Mid/Hi system cabinet material
ABS plastic

Mid/Hi system width
82 mm

Mid/Hi system height
535 mm

Mid/Hi system depth
105 mm

Amplifier module (integrated in subwoofer)


Amplifier
Class D

Amplifier output system (RMS)
200 W

Amplifier output system (peak)
800 W

Protection circuits
DSP-based multiband limiter , over-current , short circuit , thermal overload

Cooling
Convection

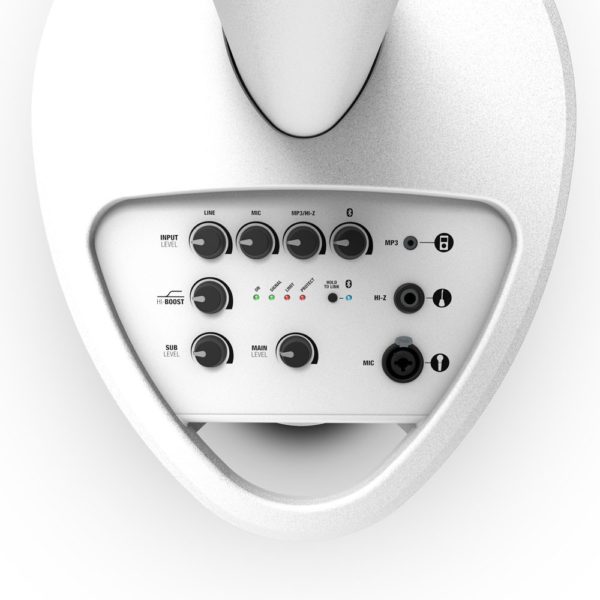

Controls
BT level , BT pairing , limiter , Line level , Main level , Mic level , MP3 / Hi-Z level , On , Protect (protection circuit engaged) , Signal , Sub level

Indicators
Limit , On , Protect (protection circuit engaged) , Signal

Operating voltage
Switching power supply

Operating voltage
100 V AC – 120 V AC, 50 – 60 Hz , 200 V AC – 240 V AC, 50 – 60 Hz (Automatic conversion)

Line inputs
2 x stereo

Line input connectors
6.3 mm jack , XLR

Mic inputs
1

Mic inputs
6.3 mm jack , XLR

MP3 inputs
1

MP3 input connectors
3.5 mm jack

Hi-Z inputs
1

Hi-Z input connectors
6.3 mm jack

Loudspeaker outputs
1

Speaker output connections
Custom-made multipin

DSP characteristics


Bit depth AD/DA converter
24 / 24 bit

Internal sampling frequency
48 kHz
