LD Systems ICOA 12
Original price was: 341.00€.310.00€Η τρέχουσα τιμή είναι: 310.00€. Τιμή Internet
LD Systems ICOA 12
- Περιγραφή
Περιγραφή
LD Systems ICOA 12

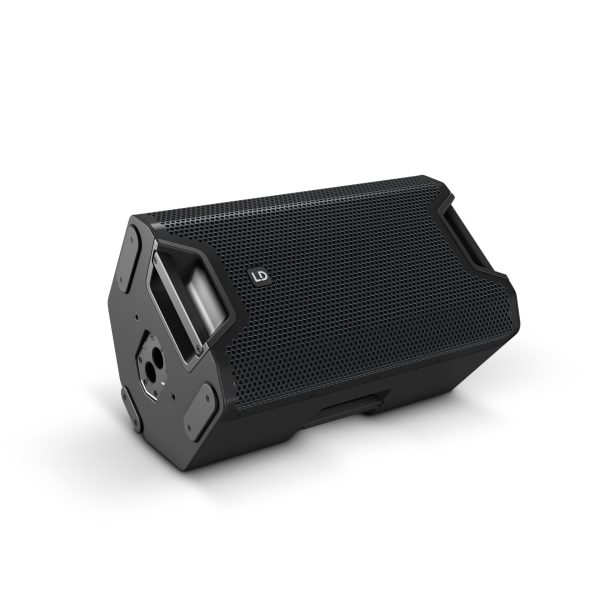

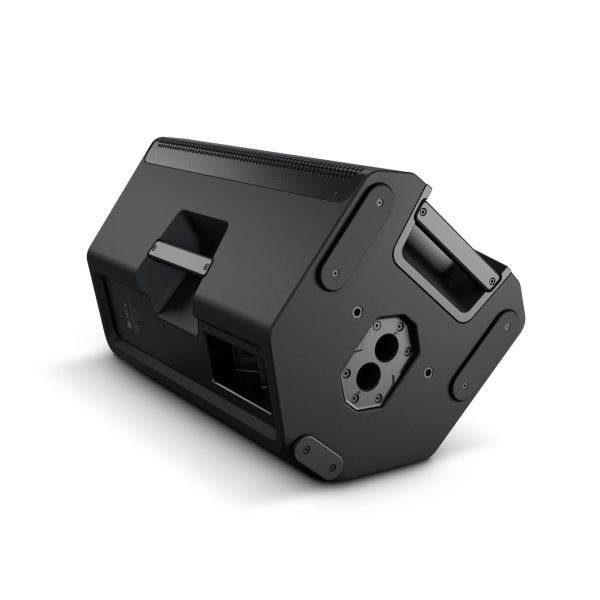

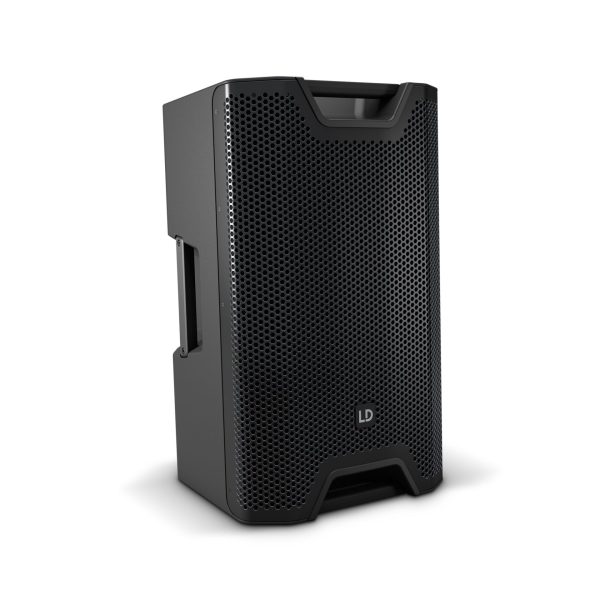

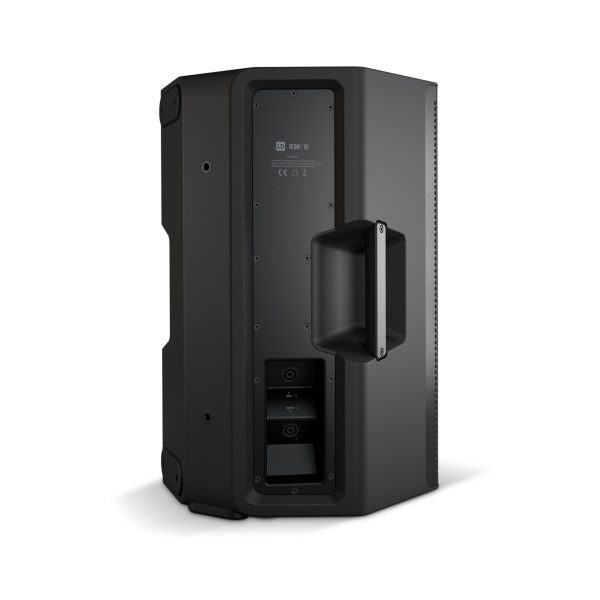

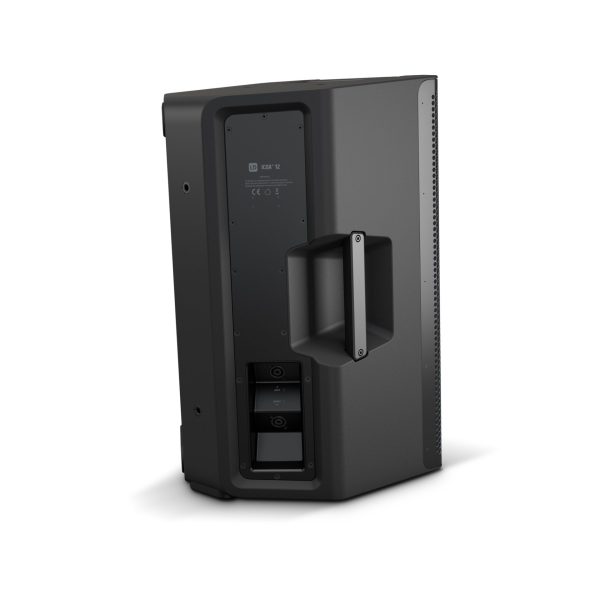

12“ Passive Coaxial PA Loudspeaker
- A genuine all-rounder for full-range, satellite and monitor applications as well as fixed installations
- Passive loudspeaker with 123 dB max. SPL and 1000 W peak power

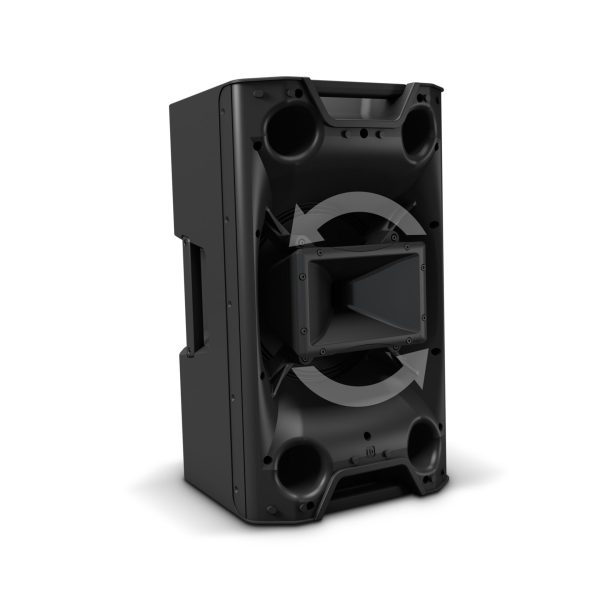

- Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimised CD horn (Patent pending)
- Horn-loaded woofer
- 36 mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand
- 6 x M10 flying points
- Shock-resistant front grille for optimal speaker protection
- Four aluminium grips with ergonomic, rubber surface
- Extensive range of optionally available accessories for installation and transport
Specifications
Product type
PA loudspeaker
Type
Passive
Low/mid Woofer dimensions
12″
Woofer dimensions (mm)
304.8 mm
Woofer magnet
Ferrite
Woofer brand
Custom-made
Horn
BEM optimized CD Horn
HF driver dimensions
1″
HF driver dimensions (mm)
25.4 mm
HF driver magnet
Ferrite
HF driver brand
Custom-made
HF driver voice coil
1.4″
HF driver voice coil (mm)
35 mm
Dispersion (H x V)
90° x 50°
Load rating (RMS)
250 W
Peak power
1000 W
Frequency response
55 Hz – 20000 Hz
Crossover frequency
2000 Hz
SPL (1W/1m)
93 dB
Max. SPL
123 dB
Impedance
8 Ohm(s)
Inputs & Outputs
Loudspeaker inputs
1

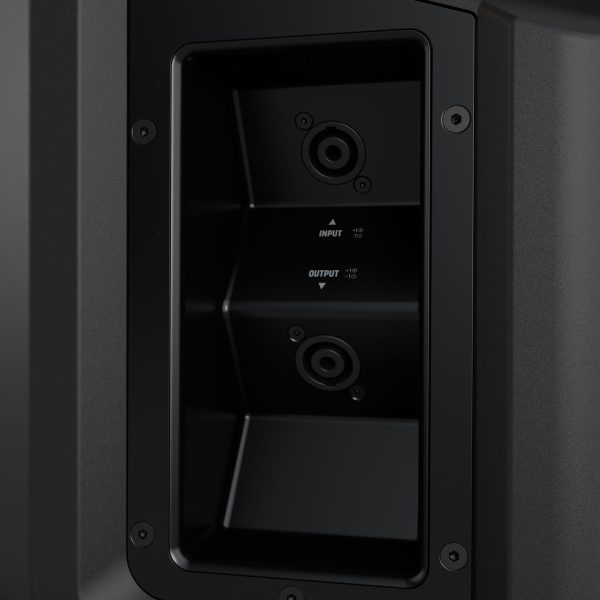

Speaker input connections
Speakon compatible
Dimensions & Weight
Weight
19.8 kg
