LD Systems ECO 2X2 BPH 1

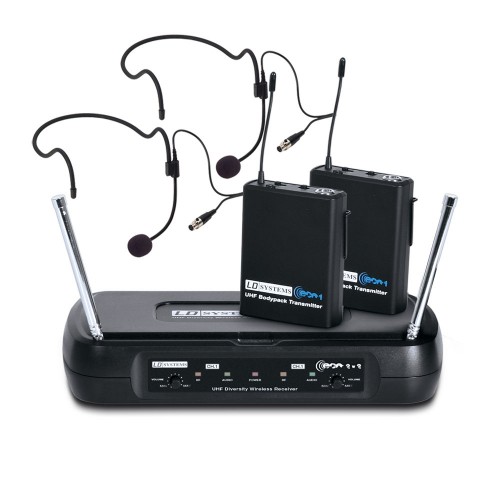

Wireless Microphone System with 2 x Belt Pack and 2 x Headset
- Dual channel UHF PLL wireless system
- 863.1 and 864.5 MHz band operation
- 50 m line-of-sight operating range
- 2 headset mics
- 2 bodypacks with input sensitivity selector and power/mute switch
- 2-channel diversity receiver with XLR and single 1/4” mix outputs
- 10+ hours operating time
- Power adapter and 2 AA batteries included
Product type
Wireless Microphone Systems
Type
Headsets
Transmission frequency range
863.1 MHz , 864.5 MHz

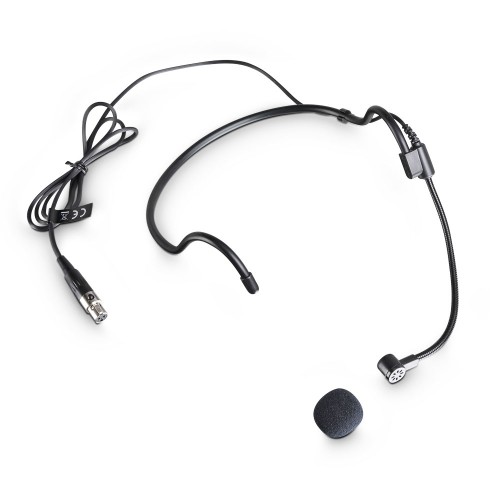

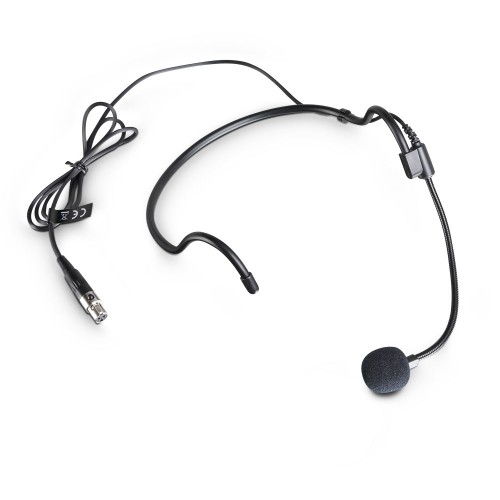

LDWS100MH1 – LD Systems WS 100 MH 1 Headset
Product type
Wireless Microphone System Accessories
Directivity
Cardioid
Frequency response
20 – 20.000 Hz
Nominal impedance
680 Ohm(s)
Phantom power requierements
5 V
Microphone input
Mini-XLR (3-pin, female)
Weight
0,049 kg
Accessories (included)
Foam windscreen

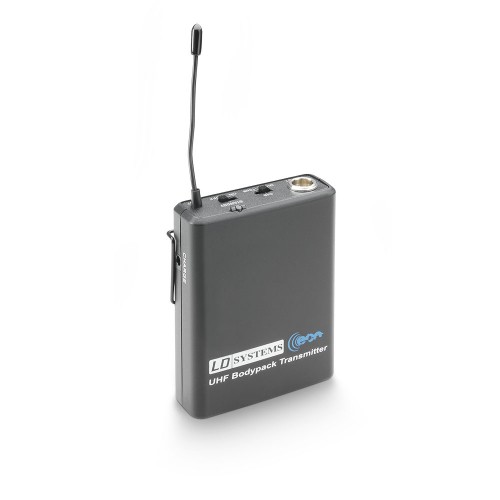

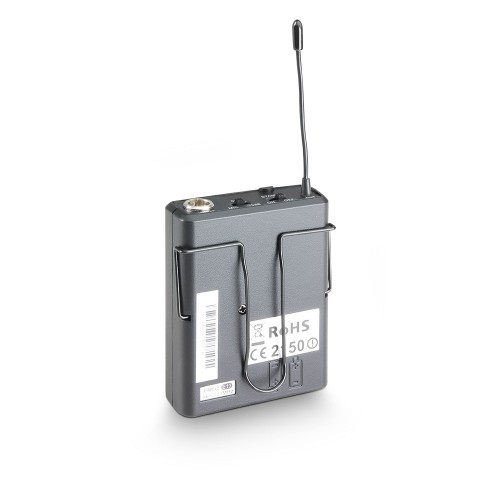

LDWSECO2BP1 – LD Systems ECO 2 BP 1 Bodypack transmitter
Type
Belt Packs
Channels
1
Inputs
Mini-XLR (3-pin) with phantom power (for headset)
Frequency response
60 – 16.000 Hz
Rated HF output power
10 mW
Operating time
>10 h (with alkaline batteries)
Other features
incl. batteries
Controls

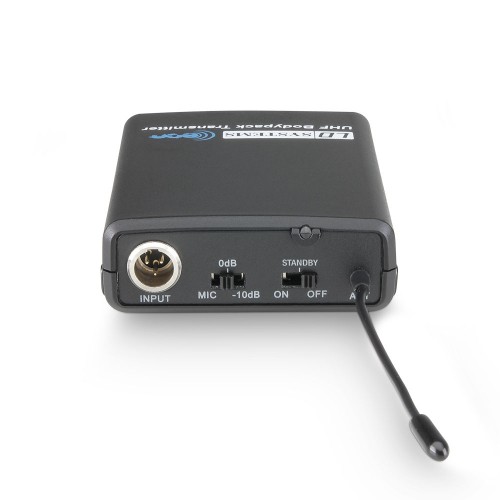

Mic / 0dB / -10 dB switch , power (on/off/mute)
Indicators
battery status
Operating voltage

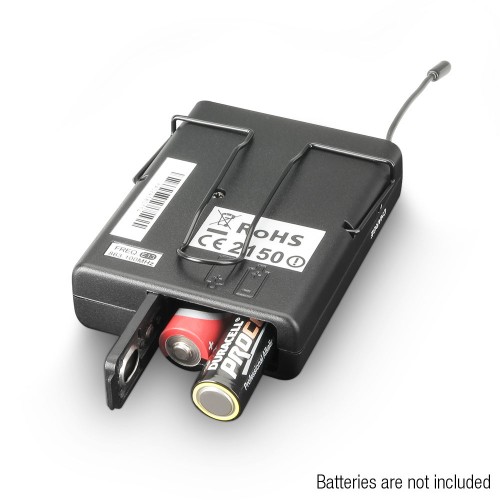

2 x AA battery
Width
65 mm
Height
85 mm
Depth
23 mm
Weight
0,1 kg

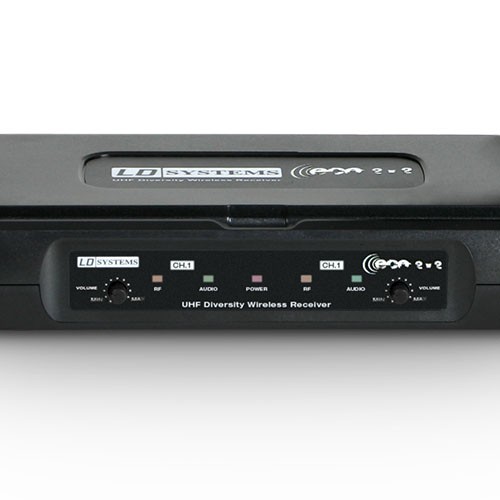

LDWSECO2X2R1 – LD Systems ECO 2X2 R 1 Double receiver
Modulation Type
FM
Channels
2
Antenna inputs
2
Antenna connector
fixed to housing
Noise reduction
Squelch
Signal-to-noise ratio
> 105 dB

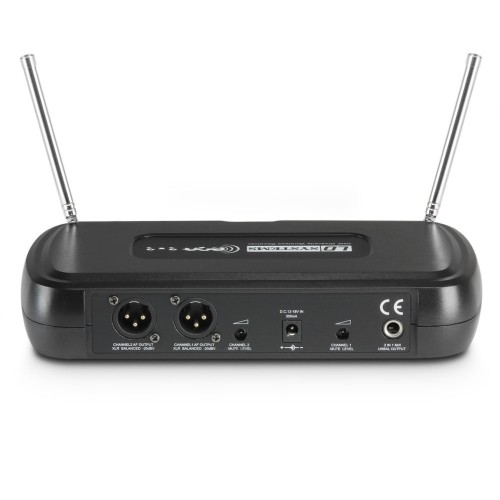

Audio output, balanced
2 x XLR
Audio mix output, unbalanced
6.3 mm jack
Controls
2 x mute level , 2 x volume
Indicators
2 x audio signal , 2 x HF signal , Power
Operating voltage
12 – 18 V DC , 400 mA , External Power Supply
Width
235 mm
Height
44 mm
Depth
118 mm
Weight
0,4 kg
Accessories (included)
Batteries , Power supply
