LD Systems ECO 2 BPH B6 I
Καλέστε μας για τιμή
LD Systems ECO 2 BPH B6 I
- Περιγραφή
Περιγραφή
LD Systems ECO 2 BPH B6 I

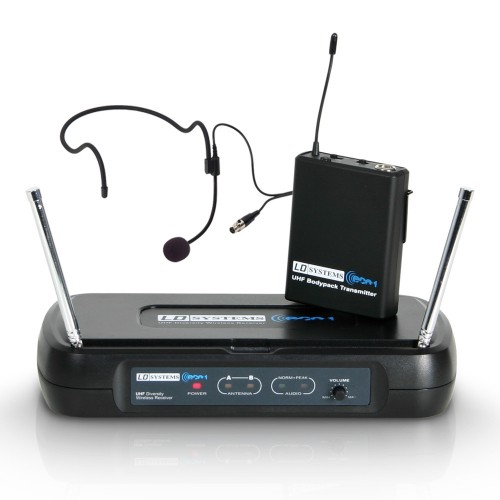

Wireless microphone system with belt pack and headset
- Single channel UHF PLL wireless system
- 630.2 MHz band operation
- 50 m line-of-sight operating range
- Headset mic and bodypack with input sensitivity selector and power/mute switch
- Diversity receiver with XLR and 1/4” outputs
- 10+ hours operating time
- Power adapter and 2 AA batteries included
Product type
Wireless Microphone Systems
Type
Headsets
Transmission frequency range
630,200 MHz

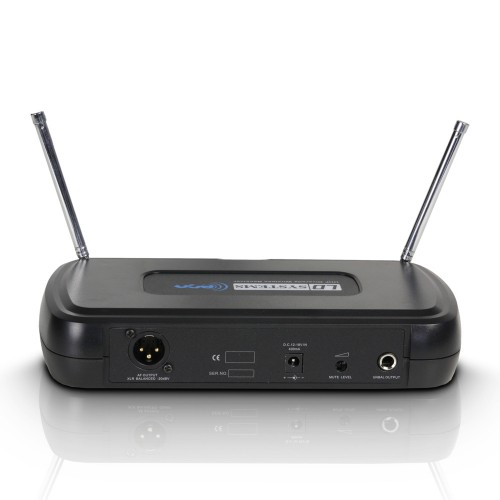

LDWSECO2RB6I – LD Systems WSECO 2 RB 6 I Receiver
Product type
Wireless Microphone System Accessories
Type
Receivers
Modulation Type
FM
Frequency response
60 – 16,000 Hz
Channels
1
Antenna inputs
2
Antenna connector
fixed to housing
Noise reduction
Squelch
Signal-to-noise ratio
> 105 dB
Controls
Mute Level (Squelch) , volume
Indicators
Antenna A/B , Audio signal (Norm / Peak) , Power
Audio output, balanced
XLR
Operating voltage
12 – 18 V DC , 400 mA , External Power Supply
Audio output, unbalanced
6.3 mm jack
Width
235 mm
Accessories (included)
Batteries , Power supply
Height
44 mm
Depth
118 mm
Weight
0,6 kg
LDWSECO2BPB6I – LD Systems WSECO 2 BPB 6 I Belt pack transmitter
Type
Belt Packs
Inputs
Mini-XLR (3-pin) with phantom power (for headset)
Rated HF output power
10 mW
Controls
Mic / 0dB / -10 dB switch , power (on/off/mute)
Indicators
battery status
Operating voltage
2 x AA battery
Operating time
>10 h (with alkaline batteries)
Width
65 mm
Height
85 mm
Depth
23 mm
Weight
0,1 kg
Other features
incl. batteries
LDWS100MH1 – LD Systems WS 100 MH 1 Headset
Frequency response
20 – 20.000 Hz
Directivity
Cardioid
Nominal impedance
680 Ohm(s)
Phantom power requierements
5 V
Microphone input
Mini-XLR (3-pin, female)
Accessories (included)
Foam windscreen
Weight
0,049 kg
