EUROLITE 70064540 DMX Scene Setter Controller
Καλέστε μας για τιμή
EUROLITE 70064540 DMX Scene Setter Controller
- Περιγραφή
Περιγραφή
EUROLITE 70064540 DMX Scene Setter Controller
Description

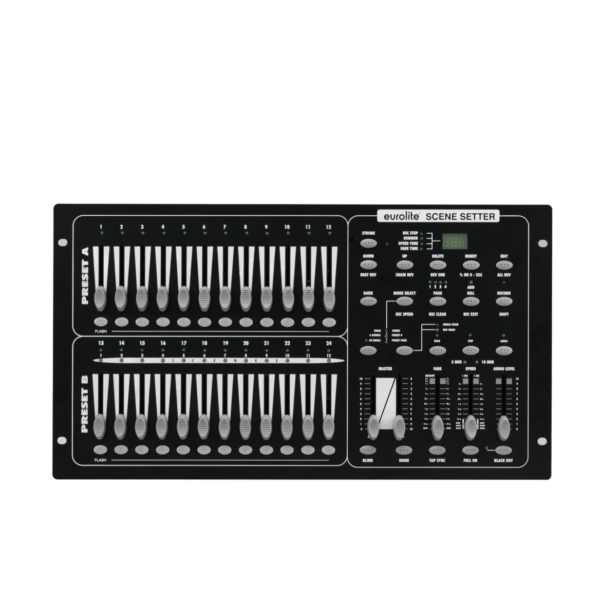

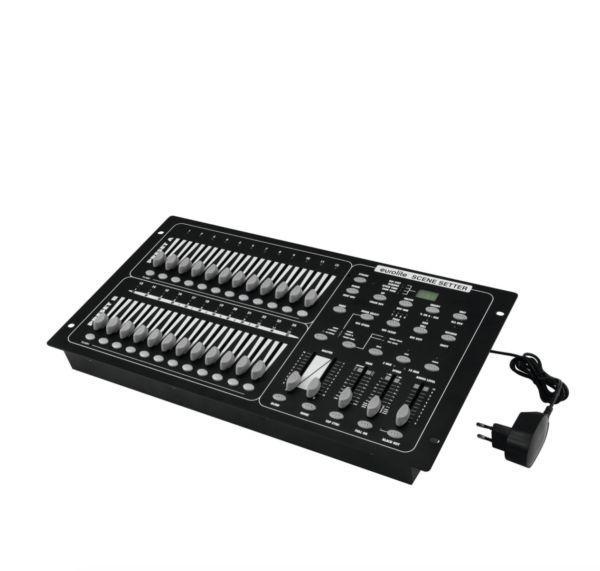

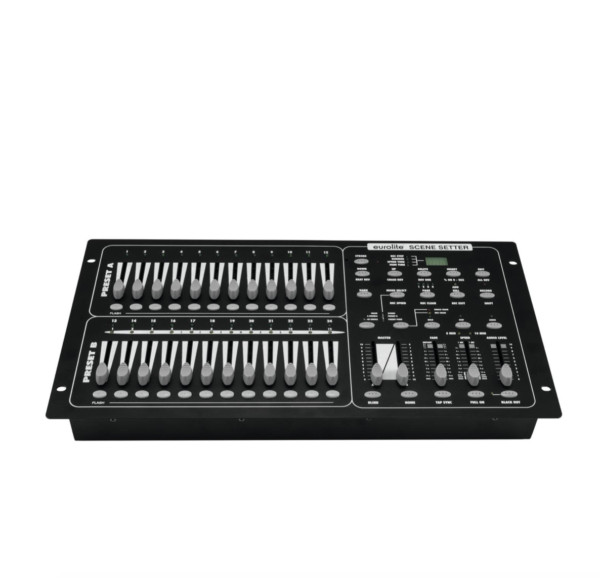

Theater light console for 24 DMX channels, brightness control for each scene
- 24 control channels
- 48 memorizable programs via 4 pages
- 12 scenes can be called up directly via the faders
- Blackout function
- Mix and single chase function
- Blind/home function
- Sound control via built-in microphone or via line input
- Supports standard MIDI
- 3-pin XLR connector with polarity selector
- Footswitch control possible
- Desktop console
- Rack installation with 6 units
- Control: Sound to light via Microphone; Sound to light via RCA (f) mounting version; DMX
- Housing design: (19″) 48.3 cm rack installation 6 U
Specifications
| Power supply: | 230 V AC, 50 Hz 12 V DC 500 mA |
| Power consumption: | 4.00 W |
| IP classification: | IP20 |
| Power connection: | Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided) |
| Programs: | 48 Chasers 12 Scenes |
| DMX channels: | Output 24 |

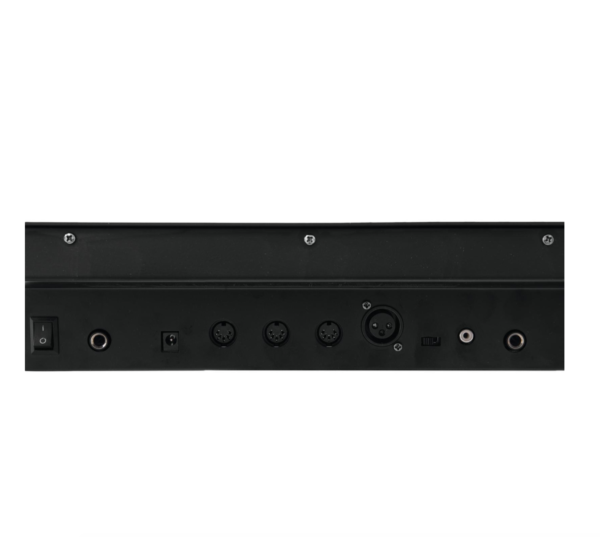

| DMX output: | 1 x 3-pin XLR (F) mounting version with polarity selector |
| Control: | Sound to light via Microphone |
| Sound to light via RCA (f) mounting version | |
| DMX | |
| Color: | Black |
| Housing color: | Black |
| Mounting depth: | 80 mm |
| Housing design: | (19″) 48.3 cm rack installation 6 U |
| Width: | 48.3 cm |
| Height: | 8.9 cm |
| Depth: | 26.4 cm |
| Weight: | 4.30 kg |
