EUROLITE 51786123 LED TSL-200 Scan COB
Description

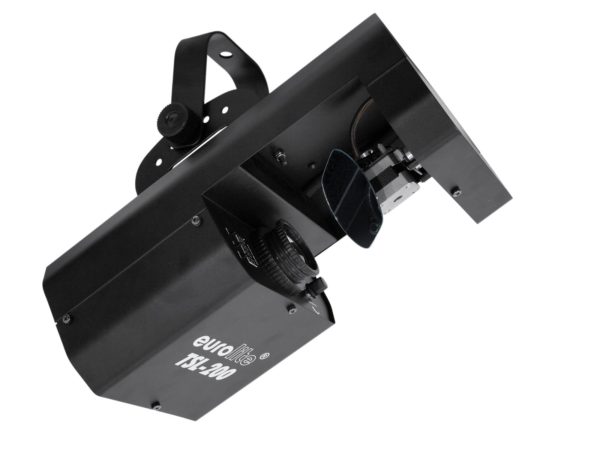

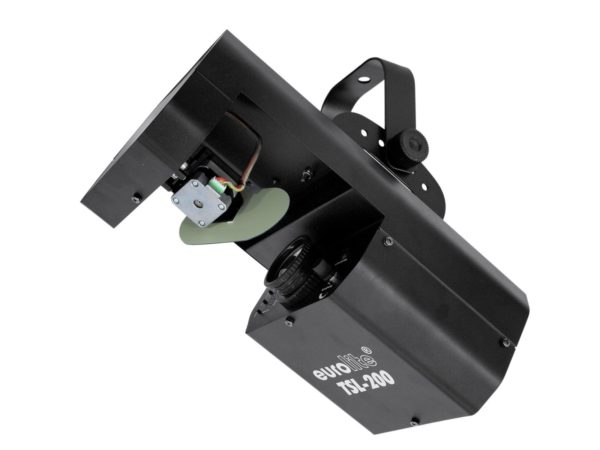

Scanner with 20 W COB LED, rotating gobos and color wheel
- Equipped with a 20 W COB LED
- Long LED life
- Comparable to the light output of a 250 W halogen lamp
- DMX-controlled operation or stand-alone operation with Master/Slave function (up to 4 slaves)
- 14 motion macros can be called up via DMX controller
- Sound-controlled via built-in microphone
- Microphone-sensitivity adjustable via rotary-control
- Fuzzy sound control: program continues automatically during periods without music or bass-beat
- 7 brilliant, dichroic colors plus white
- Rainbow effect with adjustable speed
- Gobo-wheel with 7 rotating gobos plus open
- With gobo-shake function
- Strobe effect with 1-18 flashes per second
- Strobe effect with adjustable speed
- Random strobe effect
- Manual focus
- Dimmer
- Fan-cooled
- Small and portable
- Lightbeam with 13° radiation angle
- Control board with 4-digit display for adjusting the DMX-starting address, Pan/Tilt-Reverse
- 6.3 mm jack socket for remote control
- Blackout, gobos, colors and Auto/Manual Mode applicable in Stand Alone mode via optional EUROLITE RC-1 remote control
- Advantages of LED technology: long life, low power consumption, minimal heat emission, defacto maintenance free with brilliant light radiation
- DMX control via every standard DMX controller
- LED: 1 x COB (chip-on-board) 20 W CW
- Color wheel 7 dichroic filters plus open
- Control: Sound to light via Microphone; DMX; Stand-alone
- Effect: Gobo effect
Specifications
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 70 W |
| IP classification: | IP20 |

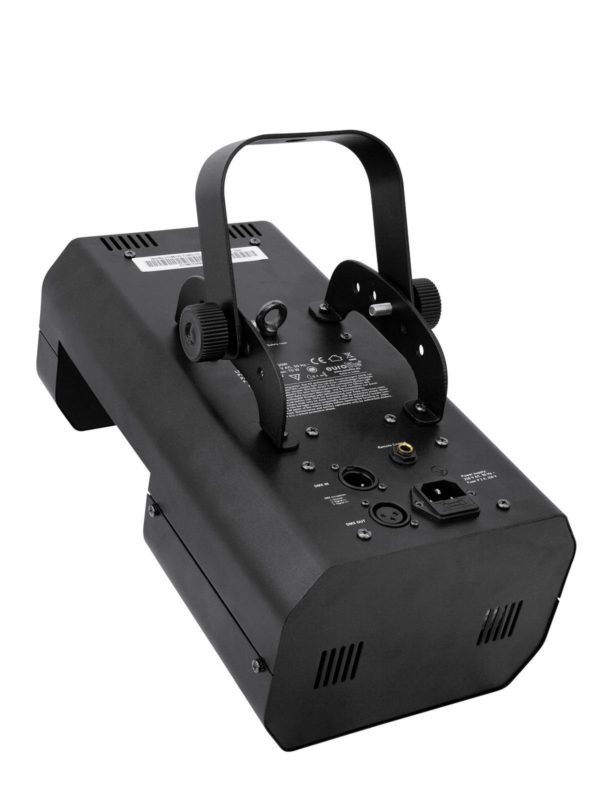

| Power connection: | Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
| LED: | 1 x COB (chip-on-board) 20 W CW |
| Flash rate: | 0 – 18 Hz |
| Equipment: | Focus manual |
| Color generation: | Color wheel 7 dichroic filters plus open |
| Gobos: | Gobo wheel with rotating gobos, 7 gobos and open outside diameter 25mm image diameter 20mm Shake effect |
| DMX channels: | 9 |

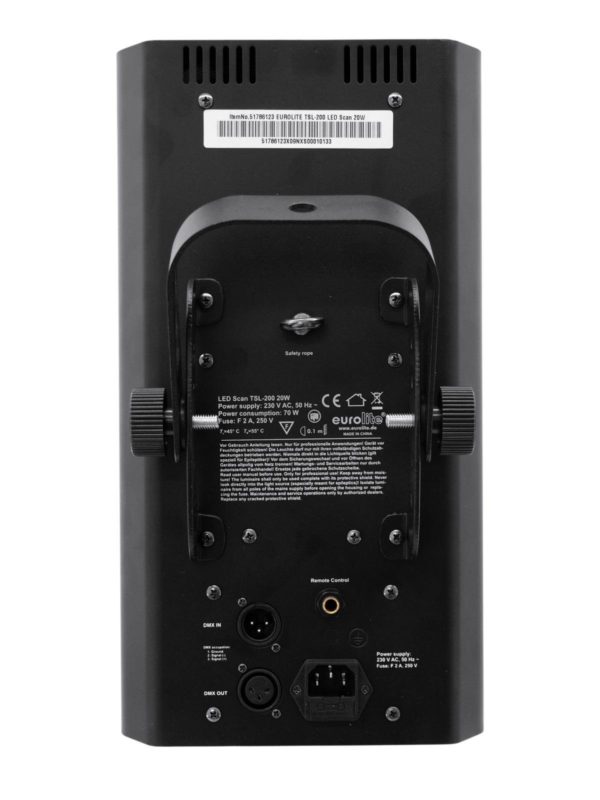

| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | Sound to light via Microphone |
| DMX | |
| Stand-alone | |
| Beam angle (1/2 peak): | 13° |
| Housing color: | Black |
| Width: | 20.5 cm |
| Height: | 30 cm |
| Depth: | 39 cm |
| Weight: | 6.20 kg |
| Legal specifications | |
| Ecodesign regulation: | Yes |
| Special product: | Not designed for household room illumination |
| Purpose: | Show effect lighting |
