Eminence Tonkerlite A

Καλέστε μας για τιμή

Eminence Tonkerlite A

Κατόπιν παραγγελίας

  • Περιγραφή

Περιγραφή

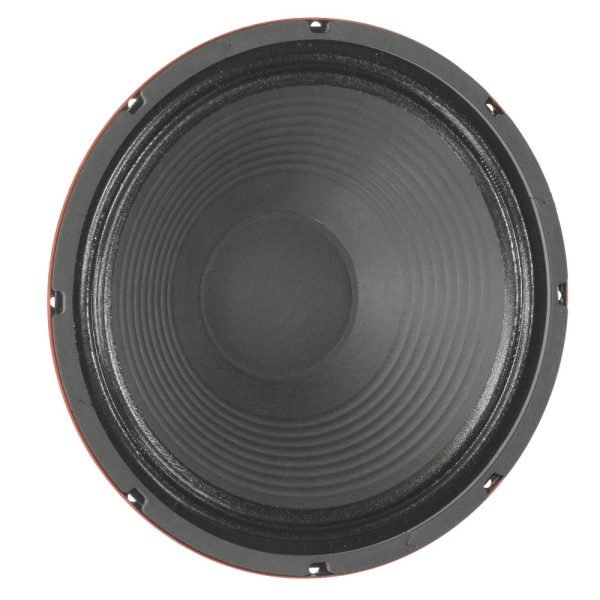

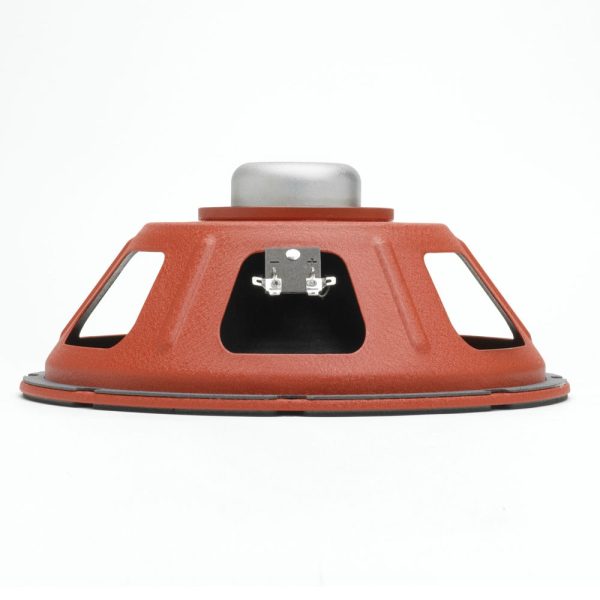

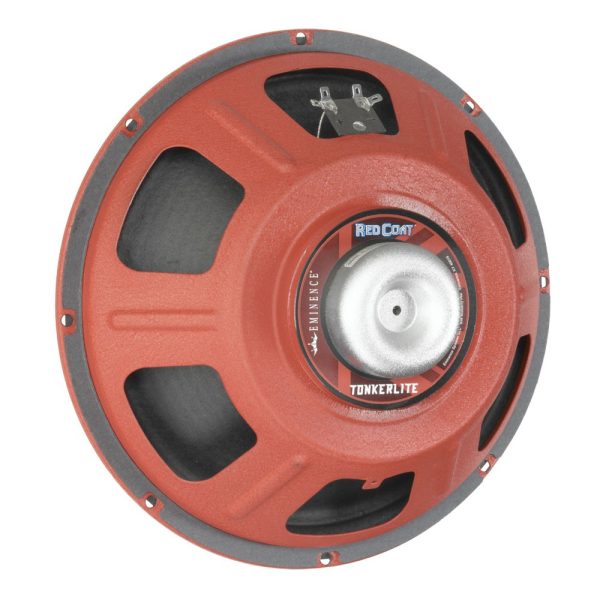

Eminence Tonkerlite A

tonker-lite n. a very lightweight, but hard-hitting 12″ speaker with British flavor and harmonic balance

Coloration : A nice round, balanced tone like the Tonker, but with extended top end and less lower-mid meat.

Genre : Blues, Southern Rock, Country

Product type
Loudspeaker Chassis
Type
Guitars
Nominal Diameter
12 “
Nominal Diameter
304.8 mm
Voice Coil
2 “
Voice Coil
50.8 mm
Overall diameter
305.3 mm
Pitch Circle Diameter
295.4 mm
Section Diameter
278.6 mm
Diameter of fixing holes
6.4 mm
Depth
129 mm
Nominal Impedance
8 Ohm(s)
Nominal Load Capacity
125 W
Sensitivity (1 W / 1 m)
101 dB
Frequency response
70 – 5500lx @ 1m Hz
Voice Coil Material
copper
Magnet
Neodymium
Depth of the magnetic gap
7.2 mm



Thiele & Small Parameter



Fs (Resonance Frequency)
109 Hz
Re (DC resistance)
7.2 Ohm(s)
Qms (mechanical quality)
12.58
Le (inductance of the voice coil)
0.42 mH
Qes (electrical quality)
0.85
Qts (overall quality)
0.8
Vas (equivalent volume)
27.4
Mms (moving mass)
30 g
BL (power factor)
13.1 T/m
Xmax (maximum displacement)
1.2 mm
Cms (elasticity of the suspension)
0.07 mm/N
Sd (membrane area)
519.5 cm²
Weight
2,63 kg
Availability: Εξαντλημένο Κωδικός προϊόντος: ERTONKLITEA Κατηγορία:
