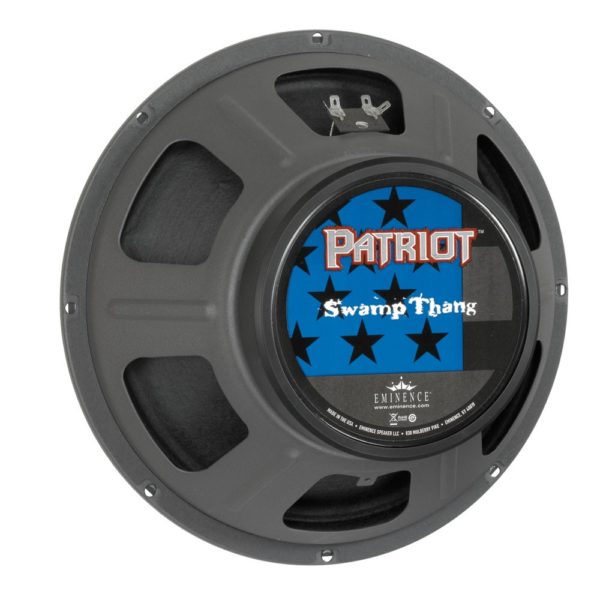

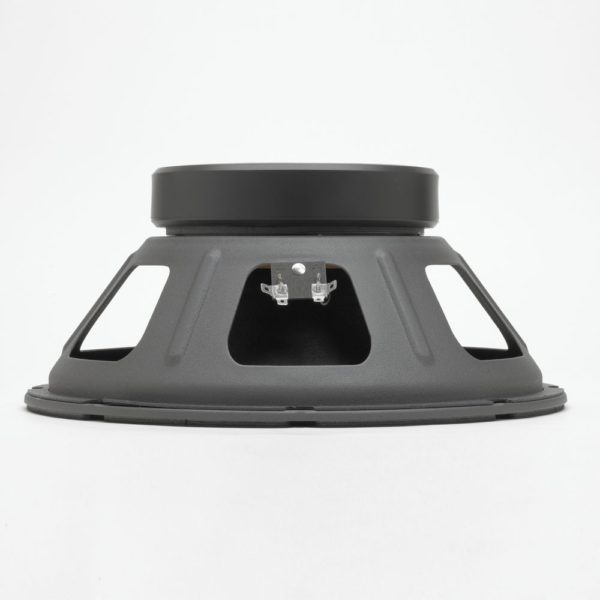

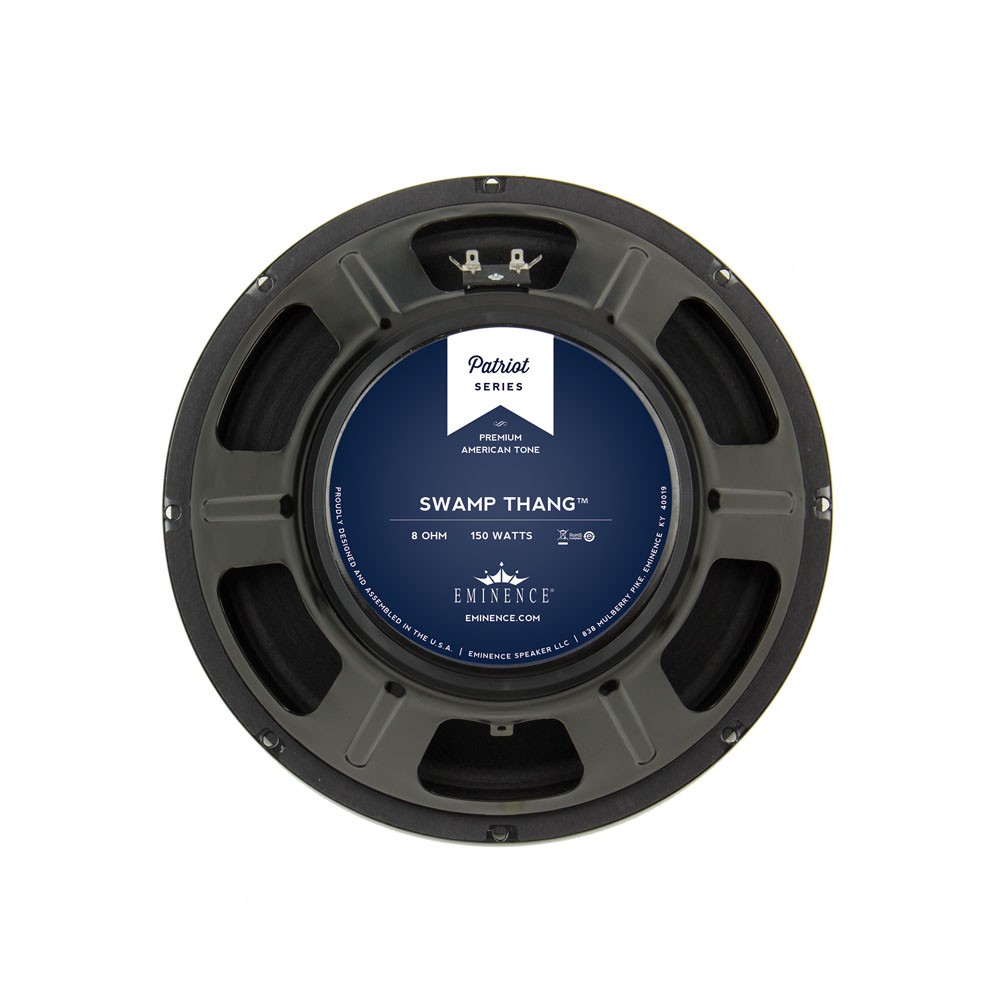

Eminence Swamp Thang B – EPSWAMPB
Καλέστε μας για τιμή
- Περιγραφή
Περιγραφή
Eminence Swamp Thang B – EPSWAMPB
Coloration : Very powerful, thick and chunky tone. Very touch-sensitive with good sustain. Awesome bottom end
Genre : Very American tone suitable for Blues, Rock, and Jazz
Product type
Loudspeaker Chassis
Type
Guitars
Nominal Diameter
12 “
Nominal Diameter
304.8 mm
Voice Coil
2 “
Voice Coil
50.8 mm
Overall diameter
305.1 mm
Pitch Circle Diameter
295.4 mm
Section Diameter
278.1 mm
Diameter of fixing holes
6.4 mm
Depth
132 mm
Nominal Impedance
16 Ohm(s)
Nominal Load Capacity
150 W
Sensitivity (1 W / 1 m)
102 dB
Frequency response
70 – 5000 Hz
Voice Coil Material
copper
Magnet
Ferrite
Depth of the magnetic gap
7.92 mm
Thiele & Small Parameter
Fs (Resonance Frequency)
113 Hz
Re (DC resistance)
14.7 Ohm(s)
Qms (mechanical quality)
8.6
Le (inductance of the voice coil)
0.67 mH
Qes (electrical quality)
0.67
Qts (overall quality)
0.62
Vas (equivalent volume)
26.4
Mms (moving mass)
30 g
BL (power factor)
21.8 T/m
Xmax (maximum displacement)
0.8 mm
Cms (elasticity of the suspension)
0.07 mm/N
Sd (membrane area)
532.4 cm²
Weight
5,81 kg
