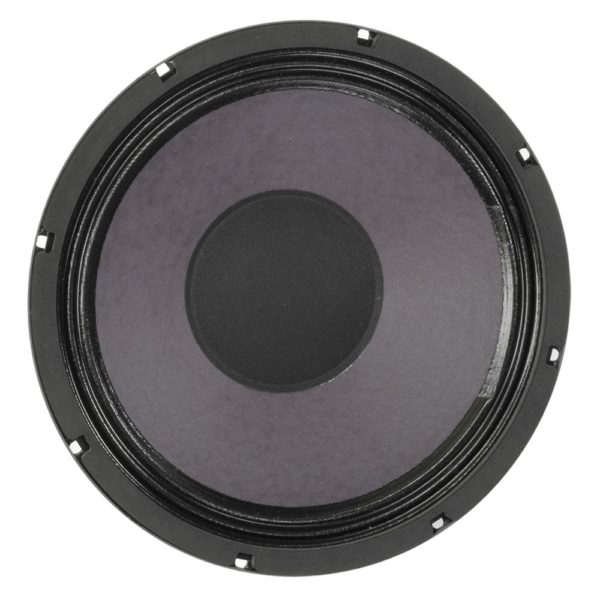

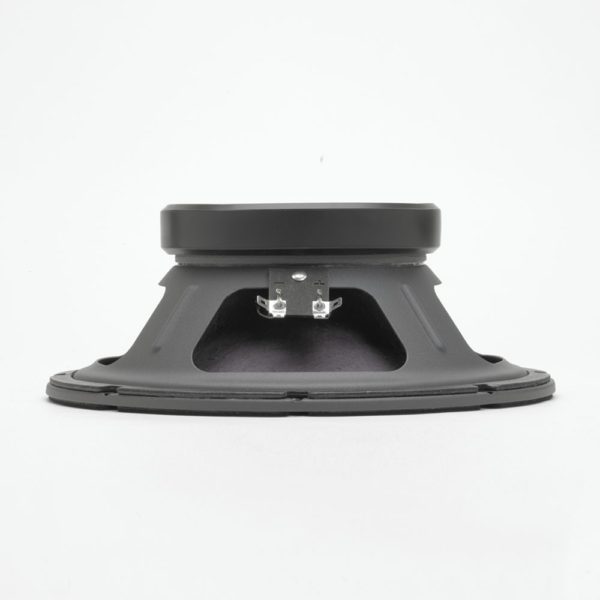

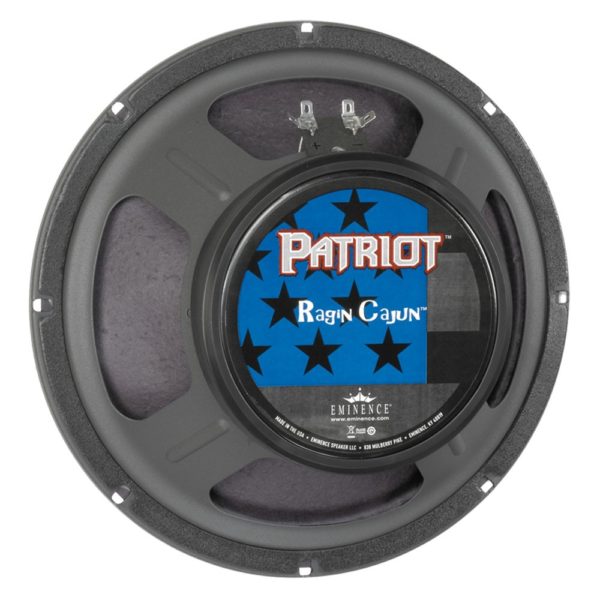

Eminence Ragin Cajun – EPRAGINA
Καλέστε μας για τιμή
Eminence Ragin Cajun – EPRAGINA
Κατόπιν παραγγελίας
- Περιγραφή
Περιγραφή
Eminence Ragin Cajun – EPRAGINA
Coloration : Very loud, touch-sensitive and responsive with nice bell-sounding top end and a little bite
Genre : American Rock, Blues, and Country
Product type
Loudspeaker Chassis
Type
Guitars
Nominal Diameter
10 “
Nominal Diameter
254 mm
Voice Coil
1.5 “
Voice Coil
38.1 mm
Overall diameter
256.8 mm
Pitch Circle Diameter
243.8 mm
Section Diameter
231.8 mm
Diameter of fixing holes
5.7 mm
Depth
109 mm
Nominal Impedance
8 Ohm(s)
Nominal Load Capacity
75 W
Sensitivity (1 W / 1 m)
100 dB
Frequency response
70 – 5000 Hz
Voice Coil Material
copper
Magnet
Ferrite
Depth of the magnetic gap
7.92 mm
Thiele & Small Parameter
Fs (Resonance Frequency)
84 Hz
Re (DC resistance)
7.3 Ohm(s)
Qms (mechanical quality)
10.8
Le (inductance of the voice coil)
0.39 mH
Qes (electrical quality)
0.68
Qts (overall quality)
0.64
Vas (equivalent volume)
34.1
Mms (moving mass)
20 g
BL (power factor)
11.5 T/m
Xmax (maximum displacement)
0.5 mm
Cms (elasticity of the suspension)
0.18 mm/N
Sd (membrane area)
366.1 cm²
Weight
3,72 kg
