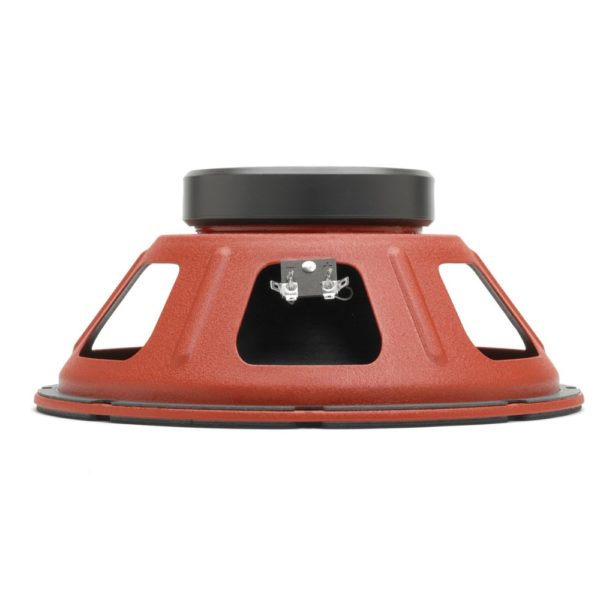

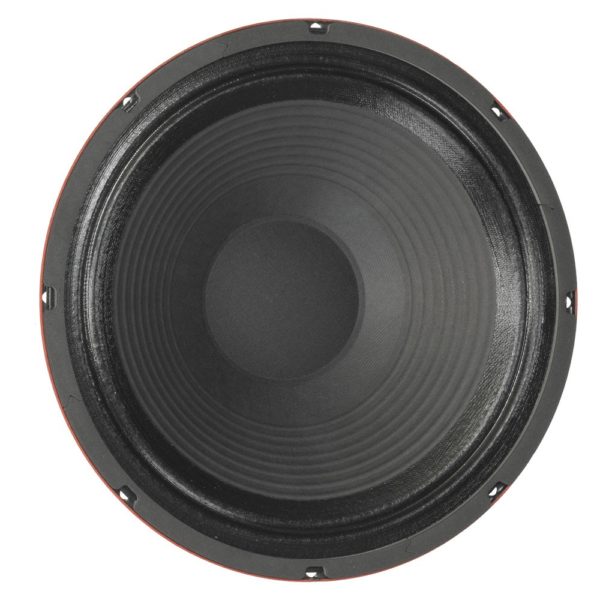

Eminence Man O War B – ERMOWB
Καλέστε μας για τιμή
Eminence Man O War B – ERMOWB
Κατόπιν παραγγελίας
- Περιγραφή
Περιγραφή
Eminence Man O War B – ERMOWB
MAN WAR™ Oman-o-war n. namesake of the famous battleship and probably the most widely revered British tone of all time Coloration : A proven and revered sound, very loud and responsive/articulate in every register. Chunky and solid sound with a little top end sparkle Genre : Great for College Rock, Classic Rock, Grunge, and Heavy Metal
Product type
Loudspeaker Chassis
Type
Guitars
Nominal Diameter
12 “
Nominal Diameter
304.8 mm
Voice Coil
1.75 “
Voice Coil
44.5 mm
Overall diameter
305.3 mm
Pitch Circle Diameter
295.4 mm
Cut- out Measurement
278.6 mm
Diameter of fixing holes
6.4 mm
Depth
132 mm
Nominal Impedance
16 Ohm(s)
Nominal Load Capacity
120 W
maximum rated load
240 W
Sensitivity (1 W / 1 m)
101.6 dB
Frequency response
70 – 5500lx @ 1m Hz
Voice Coil Material
copper
Magnet
Ferrite
Depth of the magnetic gap
7.92 mm
Thiele & Small Parameter
Fs (Resonance Frequency)
102 Hz
Re (DC resistance)
13.1 Ohm(s)
Qms (mechanical quality)
12.39
Le (inductance of the voice coil)
0.74 mH
Qes (electrical quality)
0.97
Qts (overall quality)
0.85
Vas (equivalent volume)
31.5
Mms (moving mass)
30 g
BL (power factor)
16.5 T/m
Xmax (maximum displacement)
0.8 mm
Cms (elasticity of the suspension)
0.08 mm/N
Sd (membrane area)
519.5 cm²
Weight
4,49 kg
