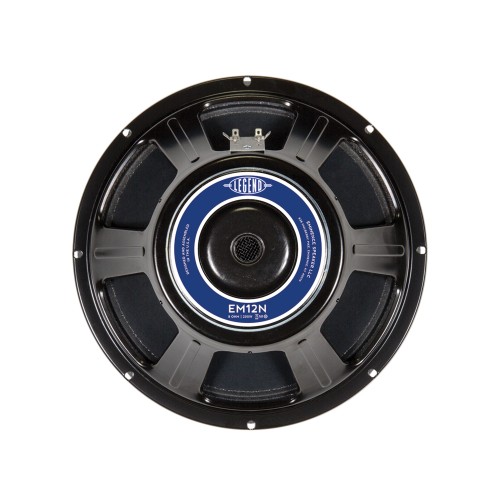

Eminence Legend EM 12 N
Καλέστε μας για τιμή
Eminence Legend EM 12 N
Κατόπιν παραγγελίας
- Περιγραφή
Περιγραφή
Eminence Legend EM 12 N
Following in the footsteps of the popular Legend EM12, the new EM12N takes the weight out but leaves the performance in. Rated at 200 watts, the neodymium EM12N delivers the same neutral tone so you can hear more of your guitar and amp, but with even tighter, more responsive and dynamic characteristics.
Product type
Loudspeaker Chassis
Nominal Diameter
12 “
Nominal Diameter
305 mm
Voice Coil
2.5 “
Voice Coil
64 mm
Overall diameter
309.1 mm
Pitch Circle Diameter
298.5 mm
Cut- out Measurement
282.7 mm
Diameter of fixing holes
6.1 mm
Depth
127 mm
Nominal Impedance
8 Ohm(s)
Nominal Load Capacity
200 W
Sensitivity (1 W / 1 m)
99.9 dB
Frequency response
60 – 4200 Hz
Voice Coil Material
Aluminum
Magnet
Neodymium
Thiele & Small Parameter
Fs (Resonance Frequency)
51 Hz
Re (DC resistance)
7.38 Ohm(s)
Qms (mechanical quality)
7.74
Le (inductance of the voice coil)
0.49 mH
Qes (electrical quality)
0.35
Qts (overall quality)
0.34
Vas (equivalent volume)
102.3
Mms (moving mass)
38 g
BL (power factor)
16 T/m
Xmax (maximum displacement)
2.22 mm
Cms (elasticity of the suspension)
0.26 mm/N
Sd (membrane area)
532.4 cm²
Weight
3 kg
