Eminence Legend CA 154
Καλέστε μας για τιμή
Eminence Legend CA 154
Κατόπιν παραγγελίας
- Περιγραφή
Περιγραφή

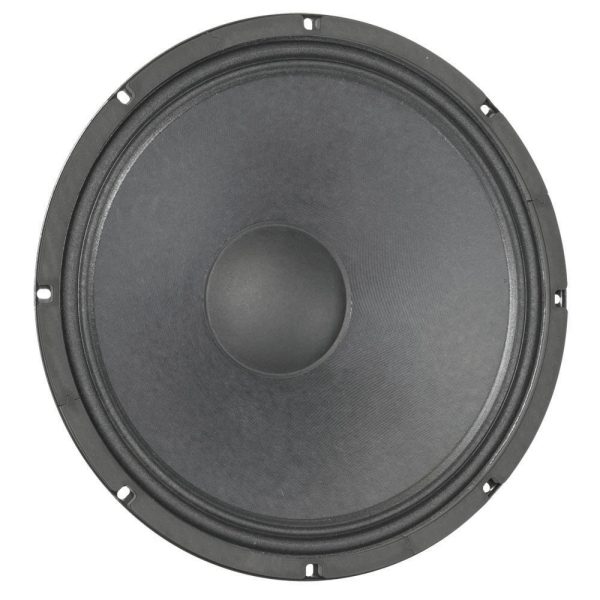

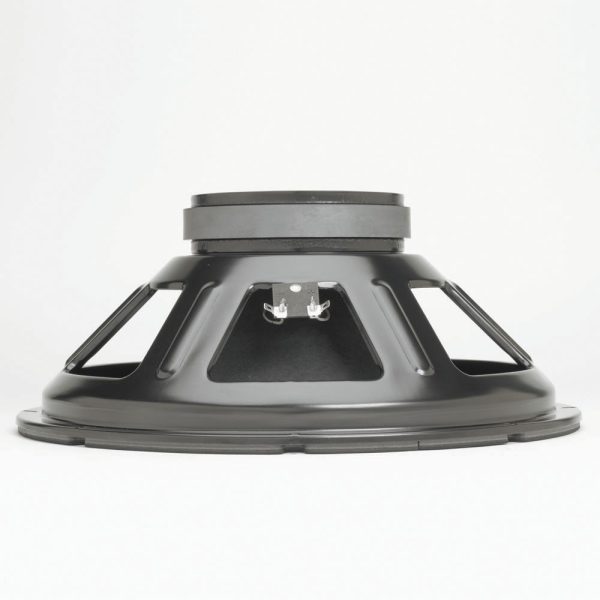

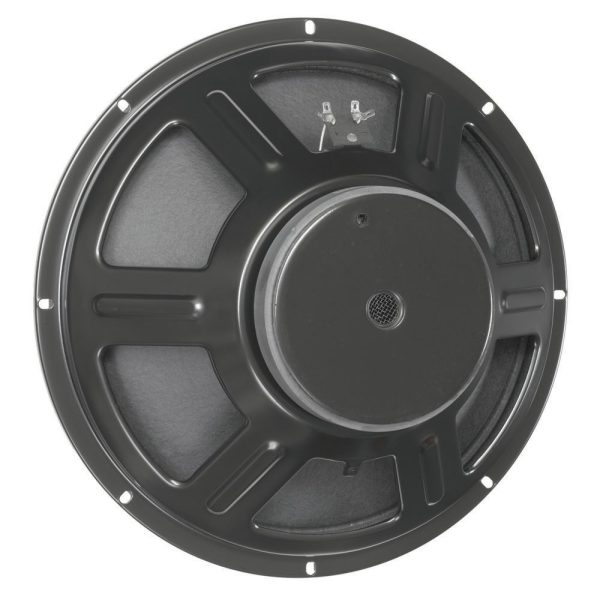

Eminence Legend CA 154
Pro Sound 15″ Woofer for use in Bass Guitar cabinets or in PA cabinets. Four Ohm Driver with High SPL.
Product type
Loudspeaker Chassis
Type
Guitars
Nominal Diameter
15 “
Nominal Diameter
381 mm
Voice Coil
2.5 “
Voice Coil
63.5 mm
Overall diameter
384.81 mm
Pitch Circle Diameter
369.8 mm
Section Diameter
352.3 mm
Diameter of fixing holes
6.35 mm
Depth
158.75 mm
Nominal Impedance
4 Ohm(s)
Nominal Load Capacity
300 W
Sensitivity (1 W / 1 m)
96.9 dB
Frequency response
45 – 3000 Hz
Voice Coil Material
copper
Magnet
Ferrite
Depth of the magnetic gap
9.53 mm
Thiele & Small Parameter
Fs (Resonance Frequency)
51 Hz
Re (DC resistance)
2.92 Ohm(s)
Qms (mechanical quality)
4.94
Le (inductance of the voice coil)
0.8 mH
Qes (electrical quality)
0.54
Qts (overall quality)
0.49
Vas (equivalent volume)
108.2
Mms (moving mass)
86.5 g
BL (power factor)
12.21 T/m
Xmax (maximum displacement)
0 mm
Cms (elasticity of the suspension)
0.11 mm/N
Sd (membrane area)
823.7 cm²
Weight
6,4 kg
