Eminence Legend 1275 A
Καλέστε μας για τιμή
Eminence Legend 1275 A
Κατόπιν παραγγελίας
- Περιγραφή
Περιγραφή

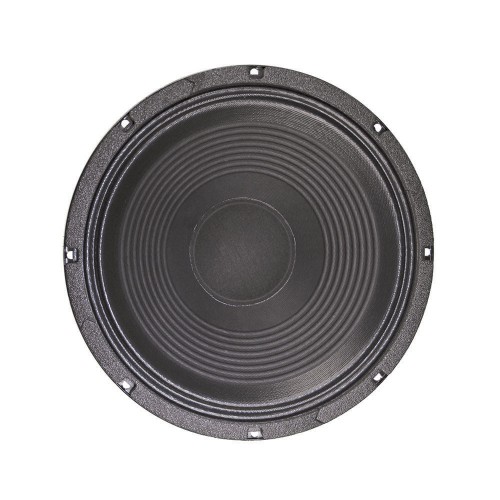

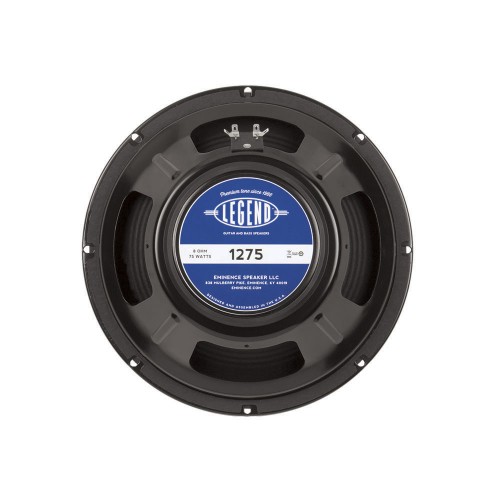

Eminence Legend 1275 A
A British voiced speaker reminiscent of classic OEM tones from the past with tight, punchy lows, warm mids, and crisp, articulate, open highs.
Product type
Loudspeaker Chassis
Type
Guitars
Nominal Diameter
12 “
Nominal Diameter
305 mm
Voice Coil
1.5 “
Voice Coil
38 mm
Overall diameter
311.4 mm
Pitch Circle Diameter
297.4 mm
Cut- out Measurement
280.9 mm
Diameter of fixing holes
6.4 mm
Depth
112.8 mm
Nominal Impedance
8 Ohm(s)
Nominal Load Capacity
75 W
Sensitivity (1 W / 1 m)
101.1 dB
Frequency response
80 – 5100 Hz
Voice Coil Material
copper
Magnet
Ferrite
Depth of the magnetic gap
8 mm
Thiele & Small Parameter
Fs (Resonance Frequency)
111 Hz
Re (DC resistance)
7.36 Ohm(s)
Qms (mechanical quality)
15.07
Le (inductance of the voice coil)
0.55 mH
Qes (electrical quality)
1.09
Qts (overall quality)
1.02
Vas (equivalent volume)
29.61
Mms (moving mass)
30 g
BL (power factor)
11.95 T/m
Xmax (maximum displacement)
0.47 mm
Cms (elasticity of the suspension)
0.07 mm/N
Sd (membrane area)
552 cm²
Weight
4,08 kg
