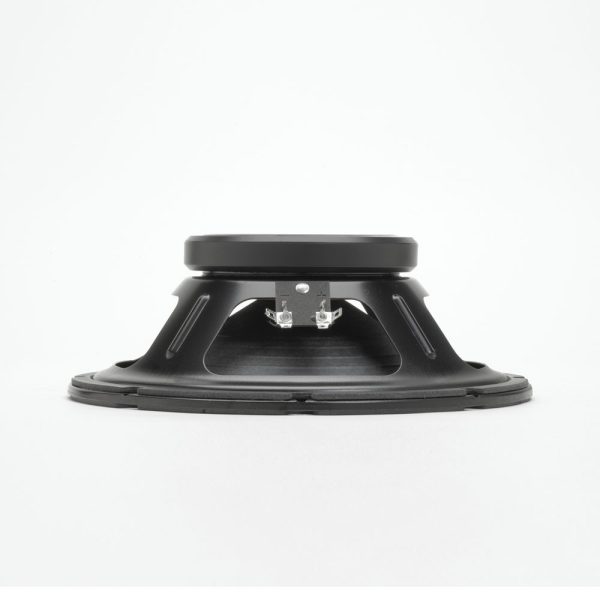

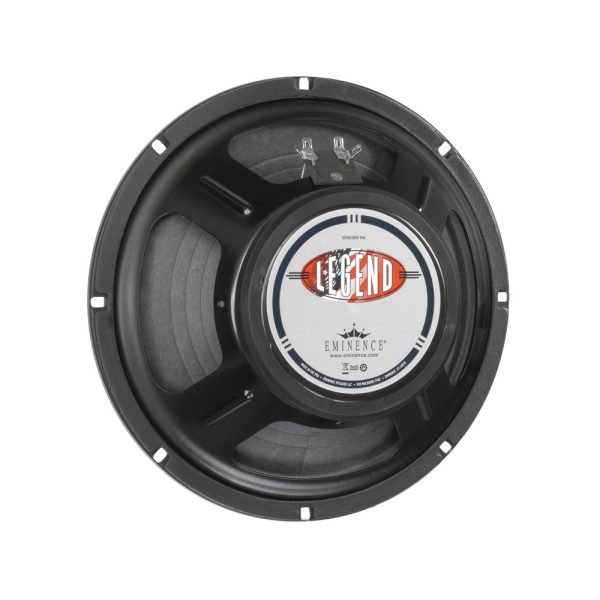

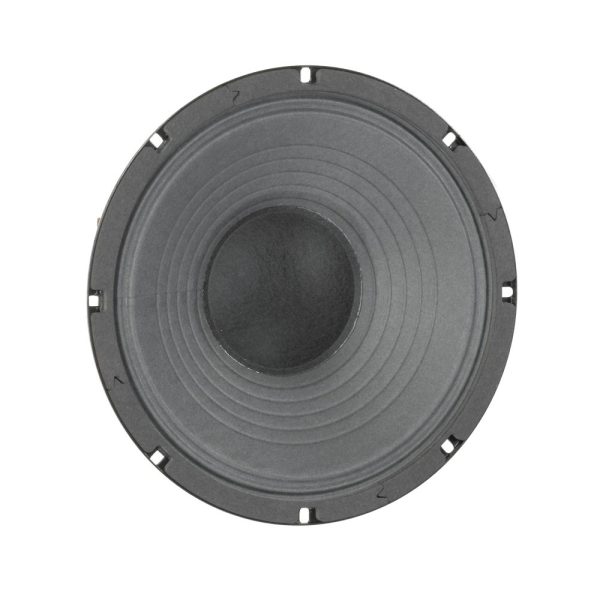

Eminence Legend 105 B

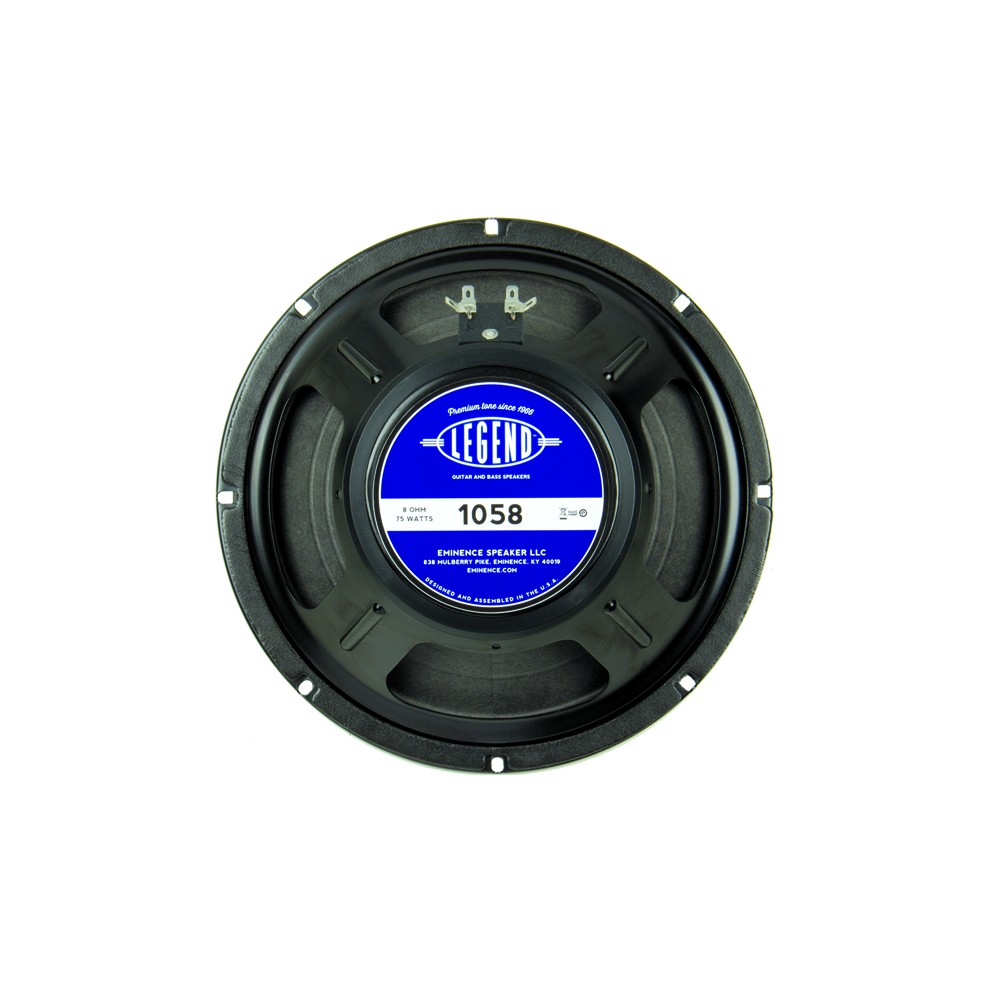

LEGEND 1058
Higher power, vintage, seamed cone tonality for guitar. Ideal Vintage alnico Jensen replacement. Coloration : A very meaty tone, but with sparkle, definition and a smooth top-end
Genre : Blues, Country, Rock
Product type
Loudspeaker Chassis
Overall diameter
256.8 mm
Pitch Circle Diameter
243.8 mm
Section Diameter
231.8 mm
Diameter of fixing holes
5.7 mm
Nominal Impedance
16 Ohm(s)
Nominal Load Capacity
75 W
Sensitivity (1 W / 1 m)
96 dB
Frequency response
100 – 5800 Hz
Voice Coil Material
copper
Depth of the magnetic gap
6.35 mm
Fs (Resonance Frequency)
96 Hz
Re (DC resistance)
10.2 Ohm(s)
Qms (mechanical quality)
13.8
Le (inductance of the voice coil)
0.64 mH
Qes (electrical quality)
1.32
Qts (overall quality)
1.21
Vas (equivalent volume)
21.8
BL (power factor)
9.9 T/m
Xmax (maximum displacement)
0 mm
Cms (elasticity of the suspension)
0.13 mm/N
Sd (membrane area)
344.9 cm²
