EMINENCE – LAB 12
Καλέστε μας για τιμή
EMINENCE – LAB 12
Κατόπιν παραγγελίας
- Περιγραφή
Περιγραφή

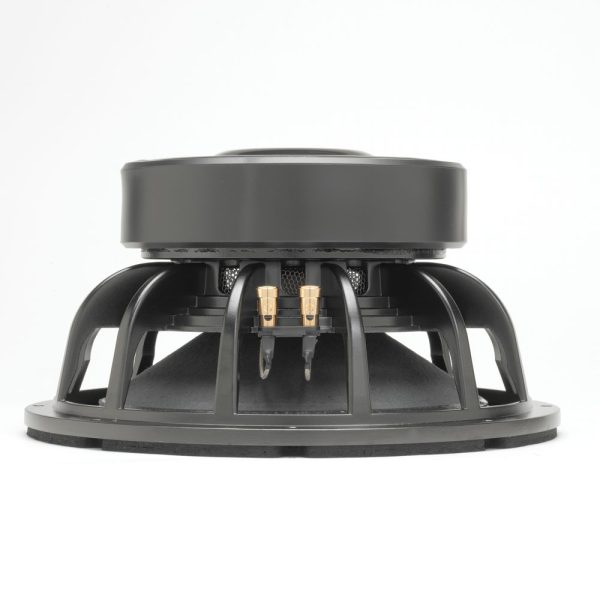

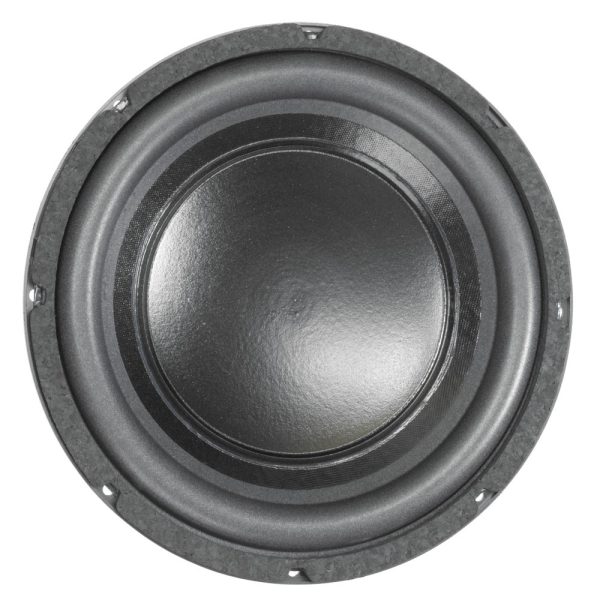

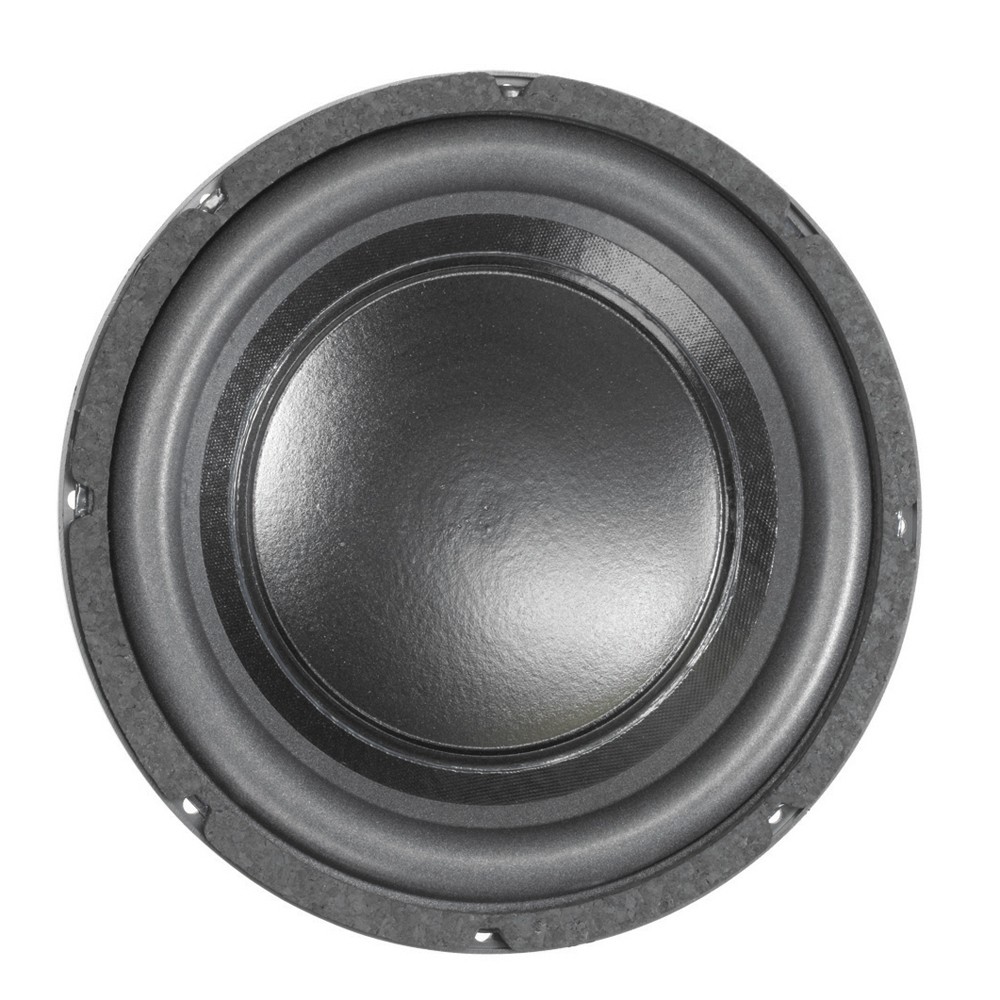

EMINENCE – LAB 12
EMINENCE Professional SeriesRecommended for vented, sealed, and horn loaded, professional audio enclosures as a subwoofer. Also great as an automotive sub.
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
12 “
Nominal Diameter
304.8 mm
Voice Coil
2.5 “
Voice Coil
63.5 mm
Overall diameter
312.8 mm
Pitch Circle Diameter
299 mm
Cut- out Measurement
278.9 mm
Diameter of fixing holes
6.6 mm
Depth
164 mm
Nominal Impedance
6 Ohm(s)
Nominal Load Capacity
400 W
maximum rated load
800 W
Sensitivity (1 W / 1 m)
89.2 dB
Frequency response
25 – 125 Hz
Voice Coil Material
copper
Magnet
Ferrite
Depth of the magnetic gap
9.53 mm
Thiele & Small Parameter
Fs (Resonance Frequency)
22 Hz
Re (DC resistance)
4.29 Ohm(s)
Qms (mechanical quality)
13.32
Le (inductance of the voice coil)
1.48 mH
Qes (electrical quality)
0.39
Qts (overall quality)
0.38
Vas (equivalent volume)
125.2
Mms (moving mass)
146 g
BL (power factor)
15 T/m
Xmax (maximum displacement)
13 mm
Cms (elasticity of the suspension)
0.35 mm/N
Sd (membrane area)
506.7 cm²
Weight
10,153 kg
