Eminence KL 3012 CXA 1
Καλέστε μας για τιμή
Eminence KL 3012 CXA 1
Κατόπιν παραγγελίας
- Περιγραφή
Περιγραφή
Eminence KL 3012 CXA 1

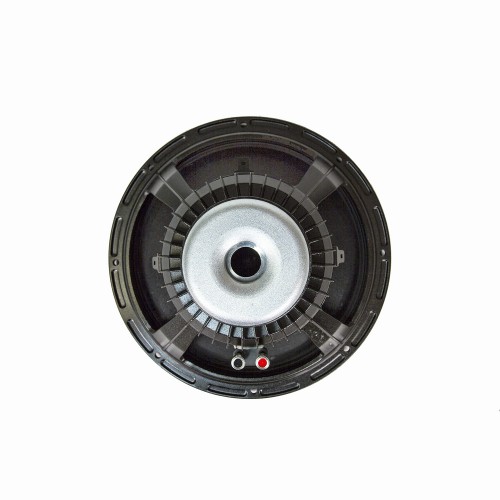

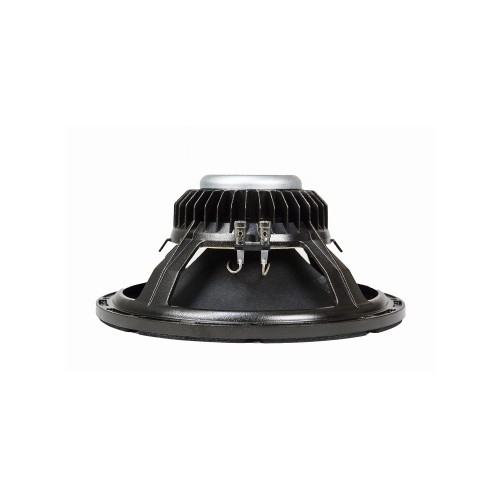

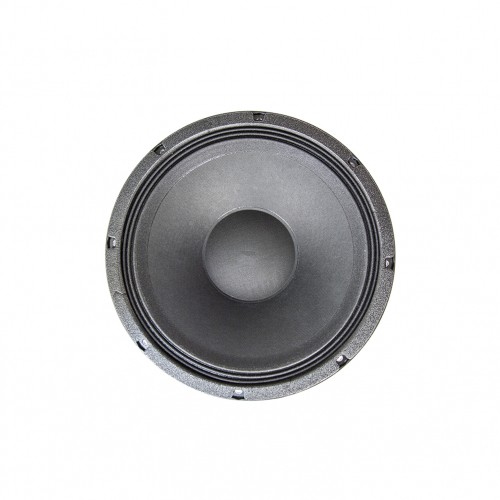

High power coaxial woofer for bass guitar and pro audio applications.
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
12 “
Nominal Diameter
305 mm
Voice Coil
3 “
Voice Coil
76 mm
Overall diameter
314.45 mm
Pitch Circle Diameter
295.15 mm
Cut- out Measurement
280.92 mm
Diameter of fixing holes
6.5 mm
Depth
142.875 mm
Nominal Impedance
8 Ohm(s)
Nominal Load Capacity
400 W
maximum rated load
800 W
Sensitivity (1 W / 1 m)
95.4 dB
Frequency response
40 – 3200 Hz
Voice Coil Material
copper
Magnet
Neodymium
Depth of the magnetic gap
9.27 mm
Thiele & Small Parameter
Fs (Resonance Frequency)
42 Hz
Re (DC resistance)
5.7 Ohm(s)
Qms (mechanical quality)
8.37
Le (inductance of the voice coil)
0.61 mH
Qes (electrical quality)
0.31
Qts (overall quality)
0.3
Vas (equivalent volume)
111.5
Mms (moving mass)
54 g
BL (power factor)
16.02 T/m
Xmax (maximum displacement)
7.47 mm
Cms (elasticity of the suspension)
0.27 mm/N
Sd (membrane area)
545.4 cm²
Weight
3,31 kg
