EMINENCE – Kappalite 3012 LF
Καλέστε μας για τιμή
EMINENCE – Kappalite 3012 LF
Κατόπιν παραγγελίας
- Περιγραφή
Περιγραφή

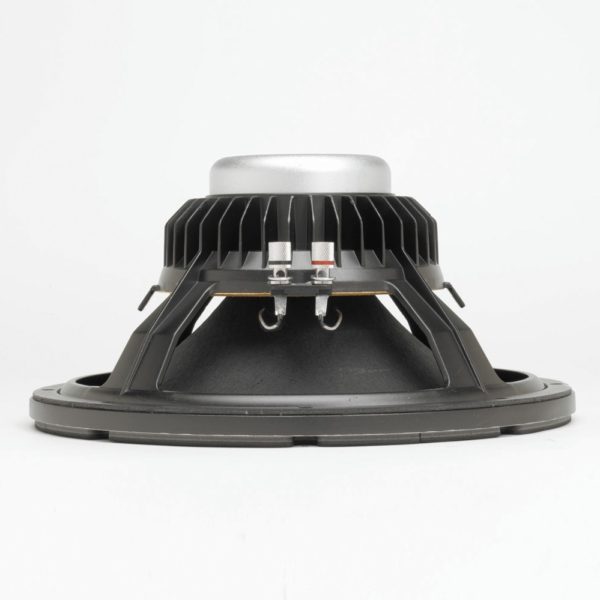

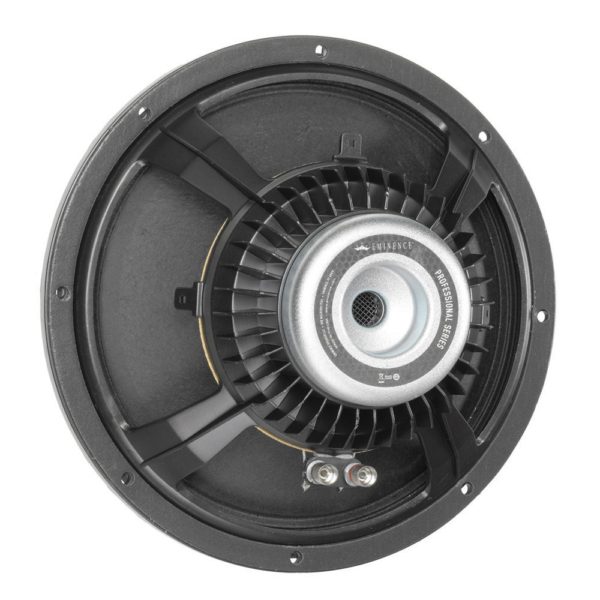

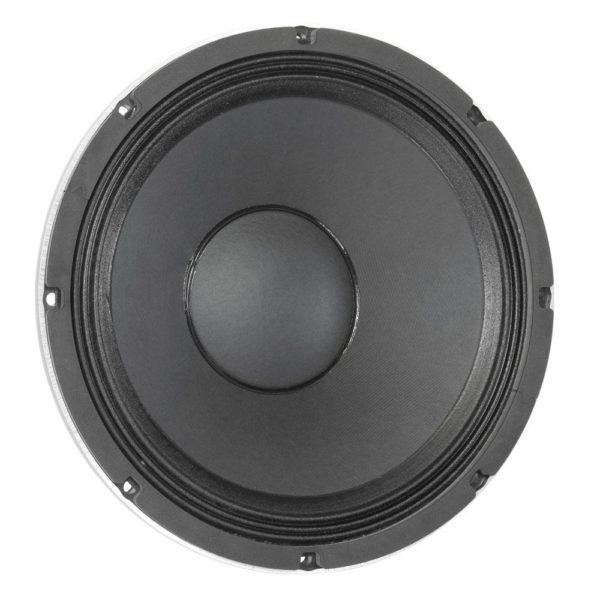

EMINENCE – Kappalite 3012 LF
12″ Speaker 450 W 8 Ohms
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
12 “
Nominal Diameter
305 mm
Voice Coil
3 “
Voice Coil
76.2 mm
Overall diameter
314.45 mm
Pitch Circle Diameter
295.2 mm
Section Diameter
280.9 mm
Diameter of fixing holes
7.1 mm
Depth
152.4 mm
Nominal Impedance
8 Ohm(s)
Nominal Load Capacity
450 W
maximum rated load
900 W
Sensitivity (1 W / 1 m)
95.5 dB
Frequency response
46 – 2000 Hz
Voice Coil Material
copper
Magnet
Neodymium
Depth of the magnetic gap
9.27 mm
Thiele & Small Parameter
Fs (Resonance Frequency)
37.02 Hz
Re (DC resistance)
5.6 Ohm(s)
Qms (mechanical quality)
6.94
Le (inductance of the voice coil)
0.98 mH
Qes (electrical quality)
0.34
Qts (overall quality)
0.32
Vas (equivalent volume)
106.65
Mms (moving mass)
72.4 g
BL (power factor)
16.7 T/m
Xmax (maximum displacement)
9.1 mm
Cms (elasticity of the suspension)
0.26 mm/N
Sd (membrane area)
545.4 cm²
Weight
4,17 kg
