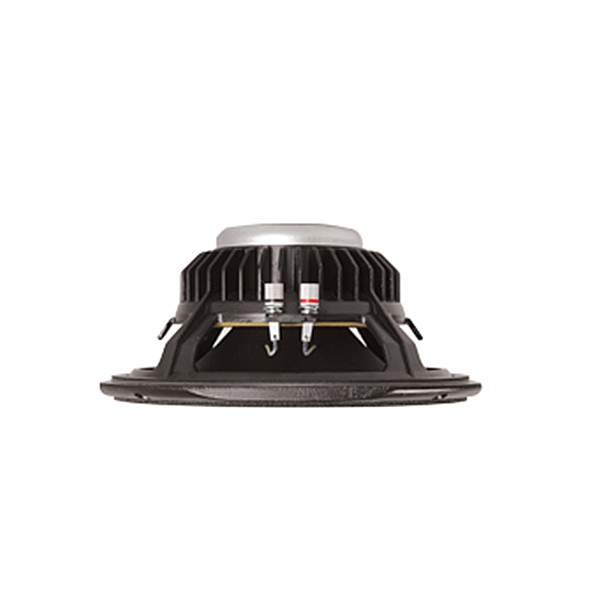

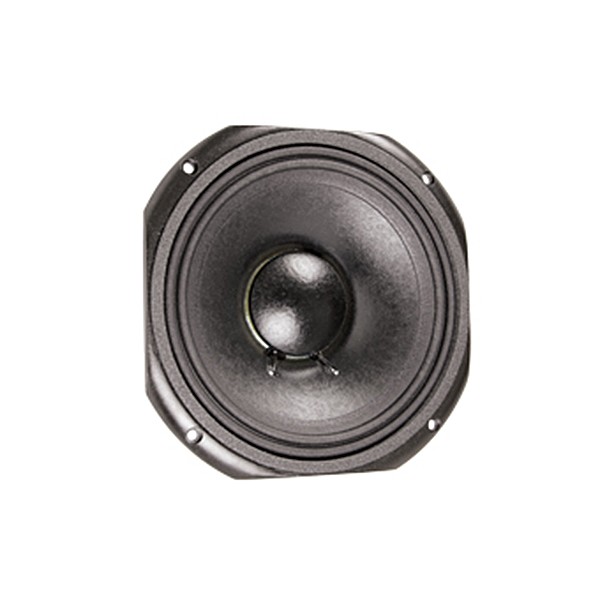

EMINENCE – Kappalite 3010 HO
Lightweight high power high output midrange driver. For use in small sealed and vented enclosures.
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
10 “
Nominal Diameter
254 mm
Voice Coil
3 “
Voice Coil
76 mm
Overall diameter
260.4 mm
Pitch Circle Diameter
247.1 mm
Cut- out Measurement
231.7 mm
Diameter of fixing holes
7.4 mm
Depth
115.9 mm
Nominal Impedance
8 Ohm(s)
Nominal Load Capacity
400 W
maximum rated load
800 W
Sensitivity (1 W / 1 m)
98.8 dB
Frequency response
400 – 4000 Hz
Voice Coil Material
Aluminum
Magnet
Neodymium
Depth of the magnetic gap
9.3 mm
Thiele & Small Parameter
Fs (Resonance Frequency)
62 Hz
Re (DC resistance)
5.57 Ohm(s)
Qms (mechanical quality)
5.75
Le (inductance of the voice coil)
0.43 mH
Qes (electrical quality)
0.28
Qts (overall quality)
0.27
Vas (equivalent volume)
37.21
Mms (moving mass)
34 g
BL (power factor)
16.05 T/m
Xmax (maximum displacement)
4.43 mm
Cms (elasticity of the suspension)
0.2 mm/N
Sd (membrane area)
366.1 cm²
Weight
3,95 kg
