EMINENCE – EDL22515A
Καλέστε μας για τιμή
EMINENCE – EDL22515A
Κατόπιν παραγγελίας
- Περιγραφή
Περιγραφή

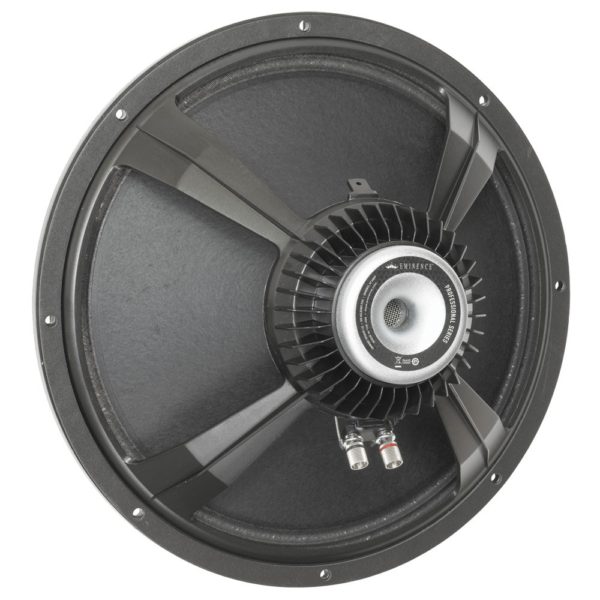

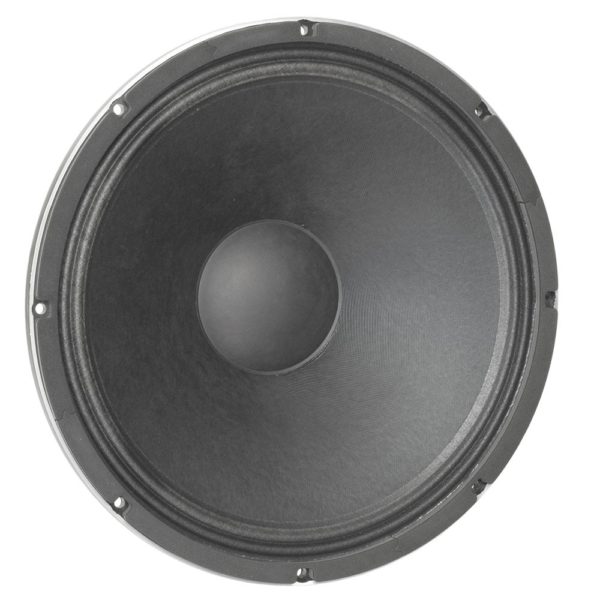

EMINENCE – EDL22515A
DELTALITE®-II 2515 Neodymium. Recommended for professional audio as a mid/hi or full-range and monitor; also for bass guitar. Works well in sealed or vented enclosures.
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
15 “
Nominal Diameter
381 mm
Voice Coil
2.5 “
Voice Coil
63.5 mm
Overall diameter
389 mm
Pitch Circle Diameter
369.9 mm
Cut- out Measurement
355.6 mm
Diameter of fixing holes
7 mm
Depth
173 mm
Nominal Impedance
8 Ohm(s)
Nominal Load Capacity
300 W
maximum rated load
600 W
Sensitivity (1 W / 1 m)
99.2 dB
Frequency response
54 – 3700 Hz
Voice Coil Material
Aluminum
Magnet
Neodymium
Depth of the magnetic gap
7 mm
Thiele & Small Parameter
Fs (Resonance Frequency)
42 Hz
Re (DC resistance)
5.29 Ohm(s)
Qms (mechanical quality)
4.56
Le (inductance of the voice coil)
1.15 mH
Qes (electrical quality)
0.41
Qts (overall quality)
0.38
Vas (equivalent volume)
204
Mms (moving mass)
72 g
BL (power factor)
15.7 T/m
Xmax (maximum displacement)
4.8 mm
Cms (elasticity of the suspension)
0.2 mm/N
Sd (membrane area)
856.3 cm²
Weight
3,211 kg
