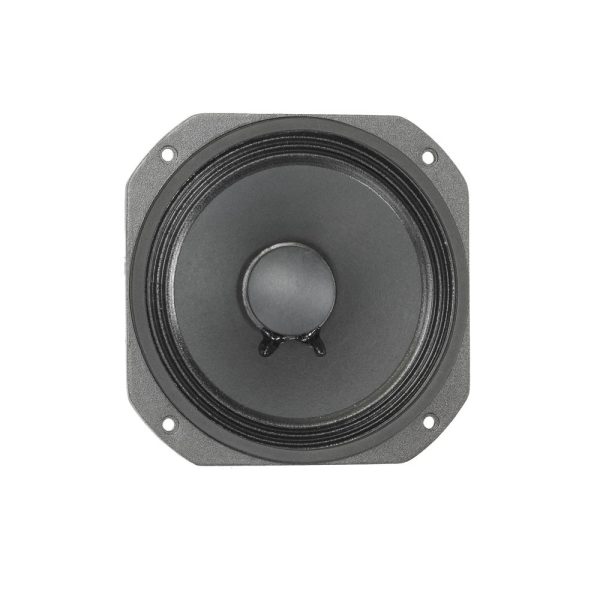

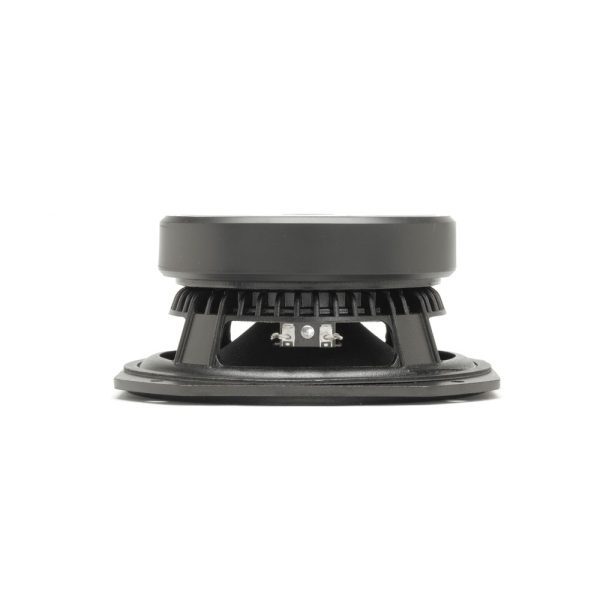

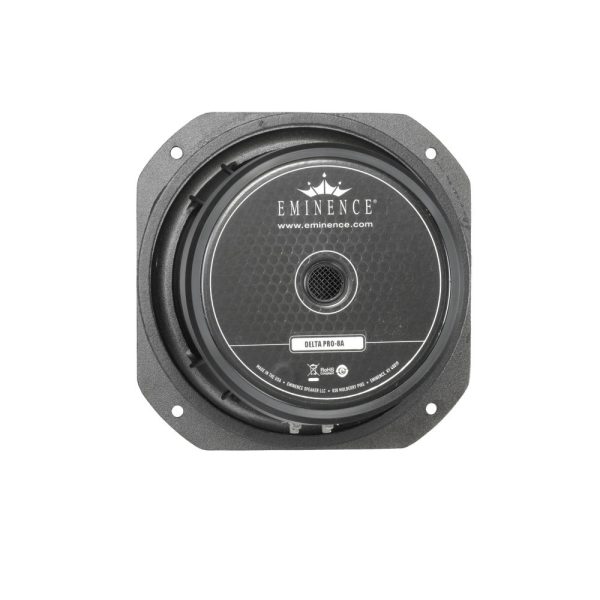

EMINENCE – Delta Pro 8 A
Original price was: 132.00€.120.00€Η τρέχουσα τιμή είναι: 120.00€. Τιμή Internet
- Περιγραφή
Περιγραφή
Recommended for professional audio in both sealed and vented enclosures. Ideal for full-range, mid/hi, and monitor wedges
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
8 “
Nominal Diameter
203 mm
Voice Coil
2 “
Voice Coil
50.8 mm
Overall diameter
203.71 mm
Pitch Circle Diameter
218.4 mm
Cut- out Measurement
186.94 mm
Diameter of fixing holes
7.11 mm
Depth
95.25 mm
Nominal Impedance
8 Ohm(s)
Nominal Load Capacity
225 W
maximum rated load
450 W
Sensitivity (1 W / 1 m)
97.8 dB
Frequency response
100 – 3000 Hz
Voice Coil Material
copper
Magnet
Ferrite
Depth of the magnetic gap
7.95 mm
Thiele & Small Parameter
Fs (Resonance Frequency)
69 Hz
Re (DC resistance)
5.4 Ohm(s)
Qms (mechanical quality)
6.43
Le (inductance of the voice coil)
0.82 mH
Qes (electrical quality)
0.2
Qts (overall quality)
0.22
Vas (equivalent volume)
18.32
Mms (moving mass)
19.3 g
BL (power factor)
14.1 T/m
Xmax (maximum displacement)
3 mm
Cms (elasticity of the suspension)
0.35 mm/N
Sd (membrane area)
218.2 cm²
Weight
4,99 kg
