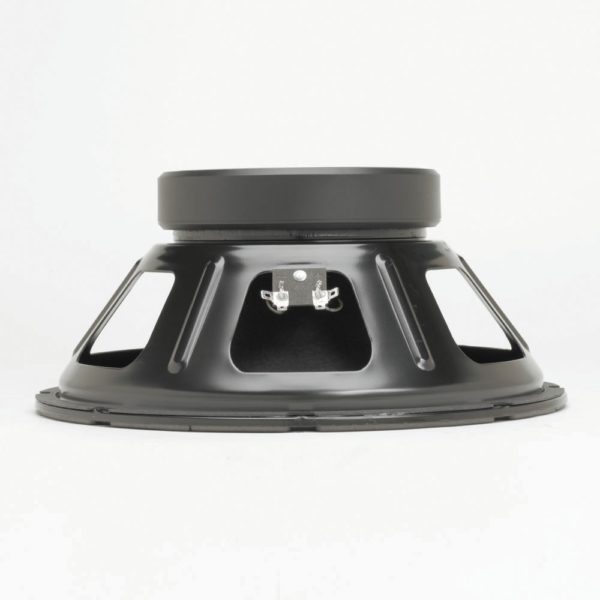

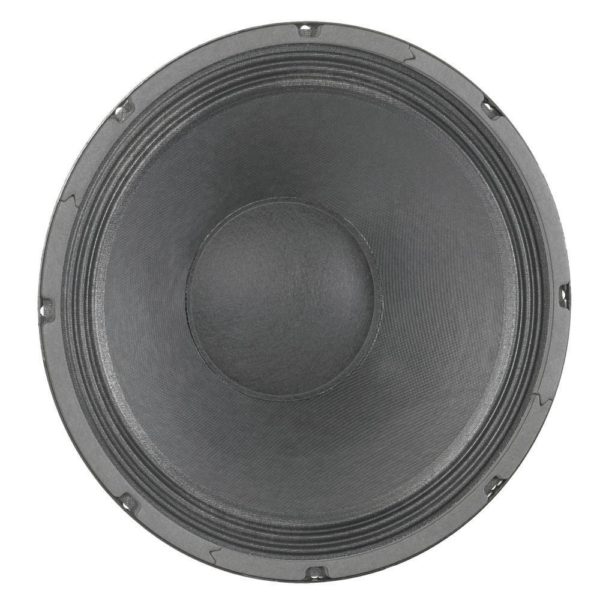

EMINENCE – Delta 12 B
Καλέστε μας για τιμή
EMINENCE – Delta 12 B
Κατόπιν παραγγελίας
- Περιγραφή
Περιγραφή
EMINENCE – Delta 12 B
12″ Speaker 400 W 16 Ohms
Recommended for professional audio as a mid-bass or woofer (with high-pass filter) in vented enclosures.
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
12 “
Nominal Diameter
304.8 mm
Voice Coil
2.5 “
Voice Coil
63.5 mm
Overall diameter
305.5 mm
Pitch Circle Diameter
294.3 mm
Section Diameter
278.1 mm
Diameter of fixing holes
6.4 mm
Depth
136 mm
Nominal Impedance
16 Ohm(s)
Nominal Load Capacity
400 W
maximum rated load
800 W
Sensitivity (1 W / 1 m)
99.3 dB
Frequency response
55 – 5000 Hz
Voice Coil Material
aluminium
Magnet
Ferrite
Depth of the magnetic gap
10.53 mm
Thiele & Small Parameter
Fs (Resonance Frequency)
55 Hz
Re (DC resistance)
6.3 Ohm(s)
Qms (mechanical quality)
5.27
Le (inductance of the voice coil)
0.74 mH
Qes (electrical quality)
0.46
Qts (overall quality)
0.43
Vas (equivalent volume)
81.3
Mms (moving mass)
39 g
BL (power factor)
13.5 T/m
Xmax (maximum displacement)
2.4 mm
Cms (elasticity of the suspension)
0.21 mm/N
Sd (membrane area)
519.5 cm²
Weight
6,12 kg
