EMINENCE – Beta 15 A
0.00€ Τιμή Internet
EMINENCE – Beta 15 A
Κατόπιν παραγγελίας
- Περιγραφή
Περιγραφή

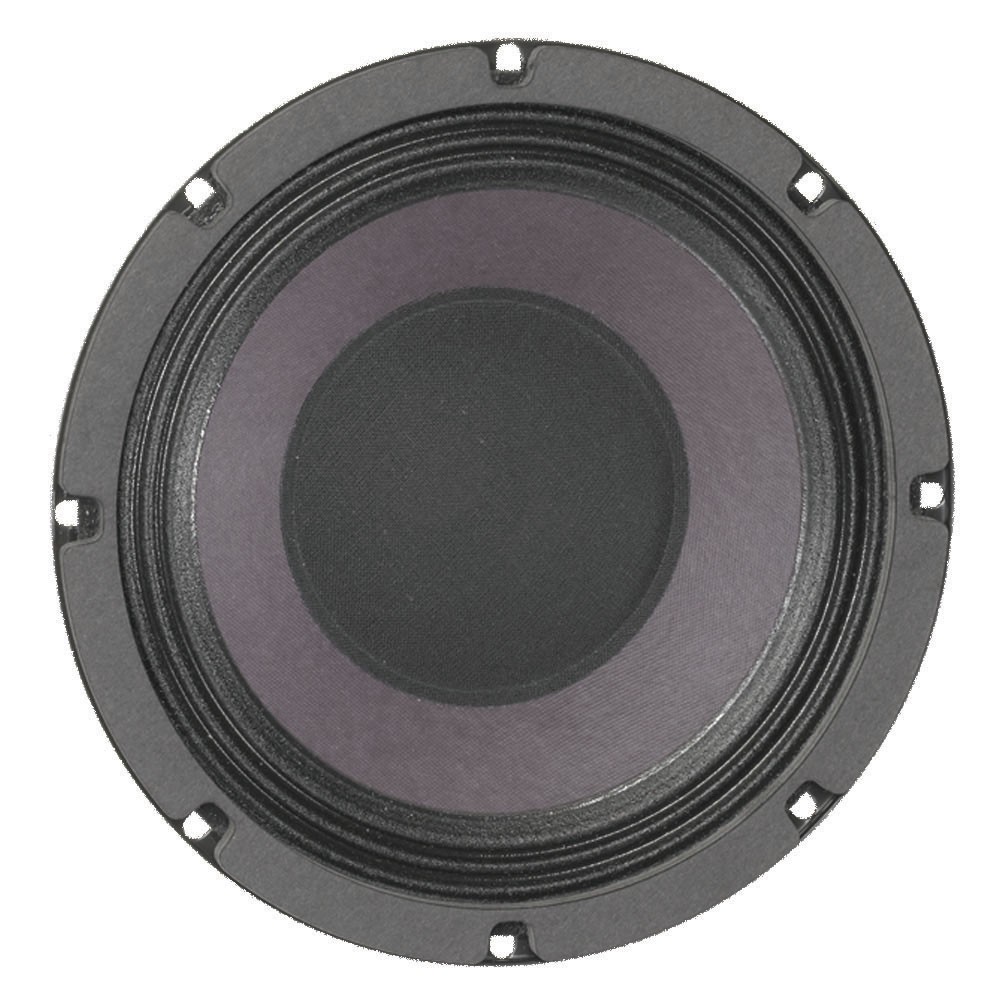

EMINENCE – Beta 15 A
15″ Speaker 300 W 8 Ohms
Recommended for professional audio as a woofer in sealed and vented enclosures.
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
15 “
Nominal Diameter
381 mm
Voice Coil
1.5 “
Voice Coil
38.1 mm
Overall diameter
384.8 mm
Pitch Circle Diameter
369.9 mm
Section Diameter
352.3 mm
Diameter of fixing holes
6.4 mm
Depth
148 mm
Nominal Impedance
8 Ohm(s)
Nominal Load Capacity
200 W
maximum rated load
400 W
Sensitivity (1 W / 1 m)
97 dB
Frequency response
46 – 3500 Hz
Voice Coil Material
copper
Magnet
Ferrite
Depth of the magnetic gap
6.35 mm
Thiele & Small Parameter
Fs (Resonance Frequency)
35 Hz
Re (DC resistance)
6.32 Ohm(s)
Qms (mechanical quality)
8.1
Le (inductance of the voice coil)
1.1 mH
Qes (electrical quality)
0.63
Qts (overall quality)
0.58
Vas (equivalent volume)
334.6
Mms (moving mass)
60 g
BL (power factor)
11.5 T/m
Xmax (maximum displacement)
4 mm
Cms (elasticity of the suspension)
0.35 mm/N
Sd (membrane area)
823.7 cm²
Weight
4,9 kg
