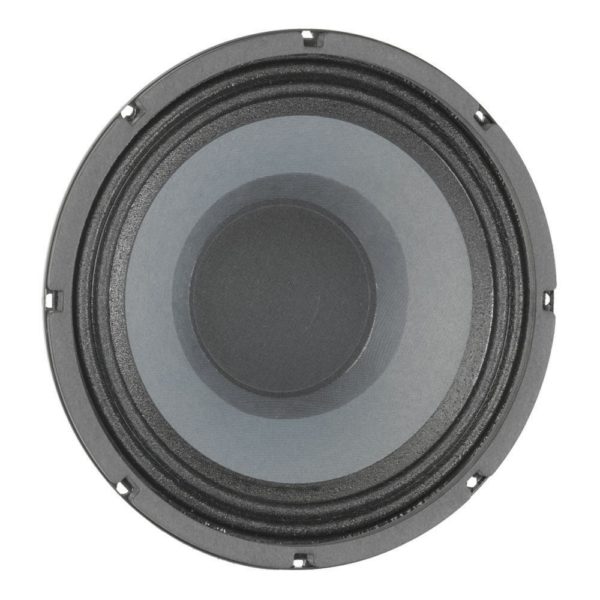

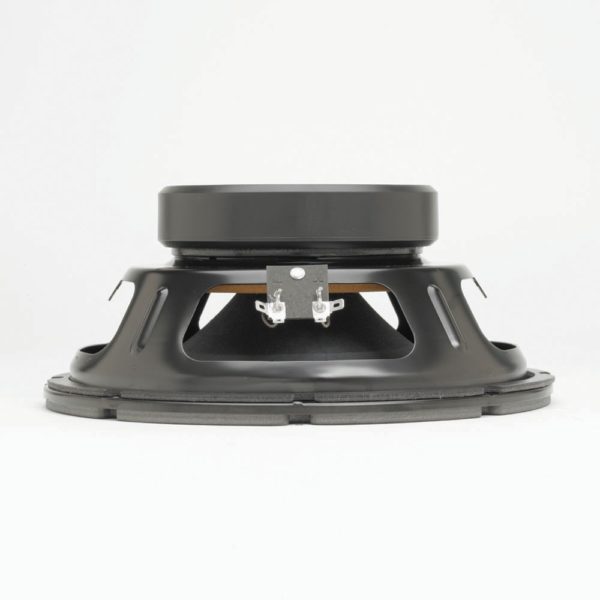

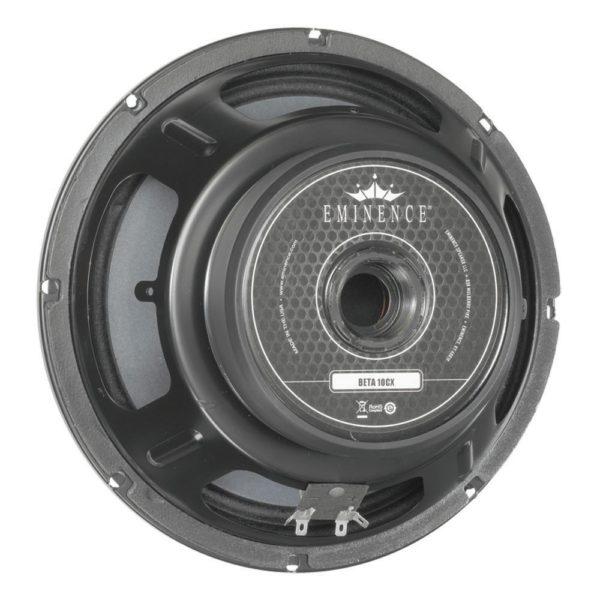

EMINENCE – Beta 10 CXA
10″ Speaker 250 W 8 Ohms
Recommended for professional audio vocal wedges, or mid-bass in a sealed enclosure. Also works well in a vented enclosure as a satellite or monitor.
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
10 “
Nominal Diameter
254 mm
Voice Coil
2 “
Voice Coil
50.8 mm
Overall diameter
256.1 mm
Pitch Circle Diameter
245.4 mm
Section Diameter
229.7 mm
Diameter of fixing holes
6.4 mm
Depth
101 mm
Nominal Impedance
8 Ohm(s)
Nominal Load Capacity
250 W
maximum rated load
500 W
Sensitivity (1 W / 1 m)
95.1 dB
Frequency response
58 – 20000 Hz
Voice Coil Material
copper
Magnet
Ferrite
Depth of the magnetic gap
7.92 mm
Thiele & Small Parameter
Fs (Resonance Frequency)
48 Hz
Re (DC resistance)
5.53 Ohm(s)
Qms (mechanical quality)
5.21
Le (inductance of the voice coil)
0.75 mH
Qes (electrical quality)
0.43
Qts (overall quality)
0.39
Vas (equivalent volume)
64.2
Mms (moving mass)
27 g
BL (power factor)
10.4 T/m
Xmax (maximum displacement)
5 mm
Cms (elasticity of the suspension)
0.39 mm/N
Sd (membrane area)
344.9 cm²
Weight
3,81 kg
