CLF POSEIDON
6,300.00€ Τιμή Internet
POWERFUL OUTDOOR BEAM
- SMOOTH CMY COLOR MIXING
- IP65 RATING
- GOBO WHEEL WITH ANIMATION RANGE
- DOUBLE PRISM
- FROST
- 190MM WIDE LENS
- Περιγραφή
Περιγραφή
CLF POSEIDON
The CLF Poseidon is a powerful outdoor beam fixture that has been developed for smooth CMY color mixing. Based on the successful CLF Aorun, the Poseidon comes with a fast and accurate feature set including a double prism, gobo wheel, animation section and frost. The 190mm wide lens and unique optics allow big mid-air effects with a bright and punchy beam, delivered by a 400W light source. Colors can be mixed smoothly by using the CMY wheels and a fixed color wheel is also available.

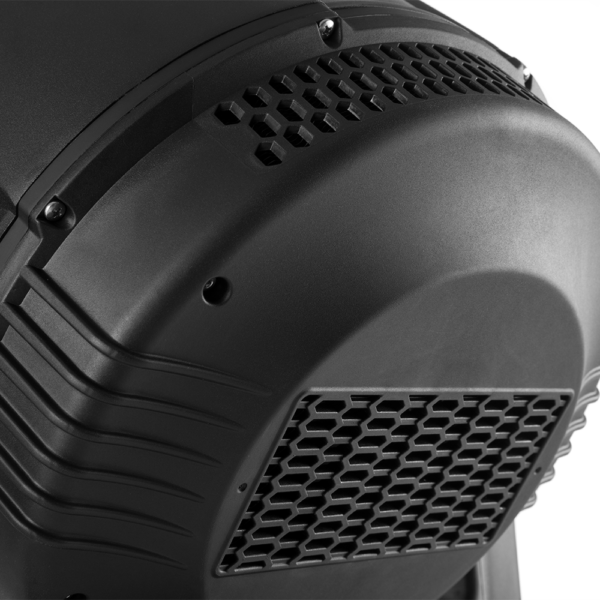

The elegantly shaped, IP65 rated, housing is equipped with specially designed motors enabling fast pan and tilt movements. A bright O-LED screen offers easy access to on-board settings, even in bright environments. All-in all, the Poseidon is the fastest and most powerful outdoor beam in its class.
| Power | |
| Input voltage | 100 – 240 VAC, 50/60HZ |
| Standby power | 550W |
| Total power consumption | 650W |
| Typical current | 2.83A |
| COS φ | |
| Power plug type | Seetronic Powercon TRUE |
| … | |
| Source | |
| Lamp | Ushio 400W |
| Lamp hours | 4000 |
| Color temperature | 7300K |
| … | |
| Optical | |
| Beam angle | 1.8° |
| … | |
| Photometric | |
| Output @10M | 564000 Lux |
| Output @50M | 25400 Lux |
| … | |
| Effects | |
| Color | CMY |
| … | 14 + open color wheel |
| Gobo | 14 + open fixed gobo wheel |
| Prism | 8-facet round, 16-facet round |
| Frost | 6° wash |
| Dimmer | 0-100% |
| Shutter | 12 hz/second, random |
| Pan | 540° |
| Tilt | 240° |
| … | |
| Heat management | |
| Cooling type | Regulated Fans |
| Max. ambient temp. | Ta max=40°C |
| Min. ambient temp. | Ta min=-20°C |
| … | |
| Control | |
| Control protocol | USITT DMX512/1990 |
| DMX channels | 17 |
| RDM | Yes |
| WDMX | Yes |
| DMX Input | 5-pin |
| RDM | Yes |
| … | |
| Hardware | |
| Interface | LCD Display |
| Software upload | DMX, via special box |
| … | |
| Installation | |
| Mounting orientation | Any |
| IP rating | IP65 |
| … | |
| Housing | |
| Safety attachment point | Yes |
| Position lock | Tilt |
| … | |
| Physical | |
| Net product weight | 35kg |
| Length | 726mm |
| Width | 488mm |
| Height | 312mm |
| … | |
| Approvals | |
| Approved certifications | CE and RoHS |
| … | |
| Information | |
| Article number | 160030 |
| … | |
| Related | |
| Included items | Manual, Power cable, safety |
| Optional | CLF Omega bracket |
