Cameo F2 T PO

Καλέστε μας για τιμή

Cameo F2 T PO

  • Περιγραφή

Περιγραφή

Cameo F2 T PO

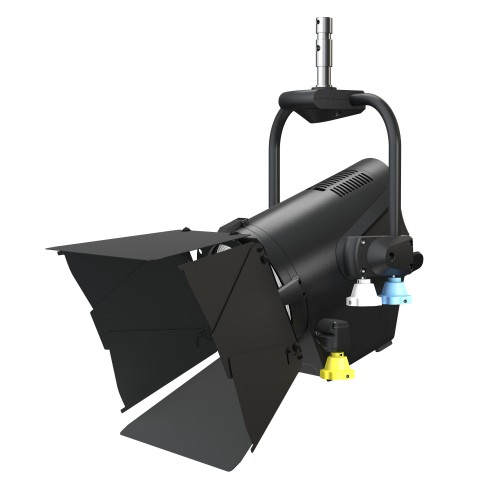

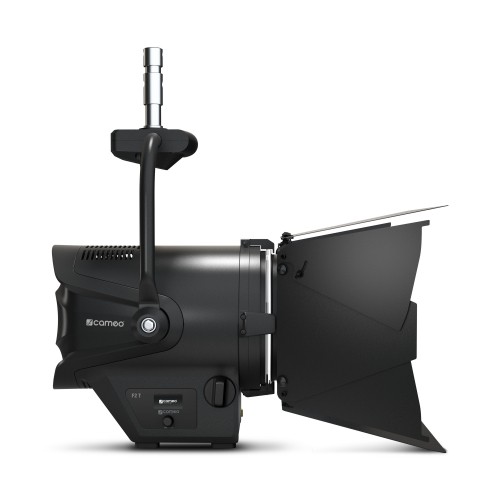

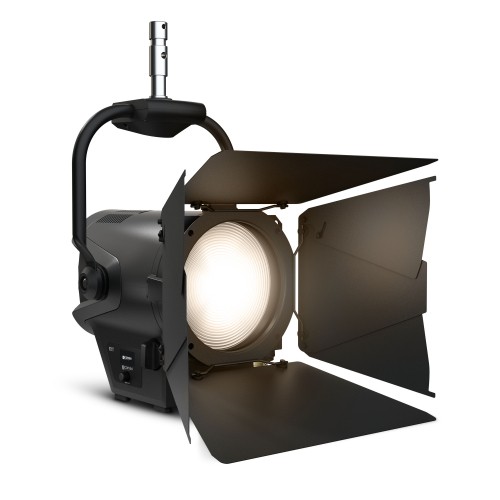

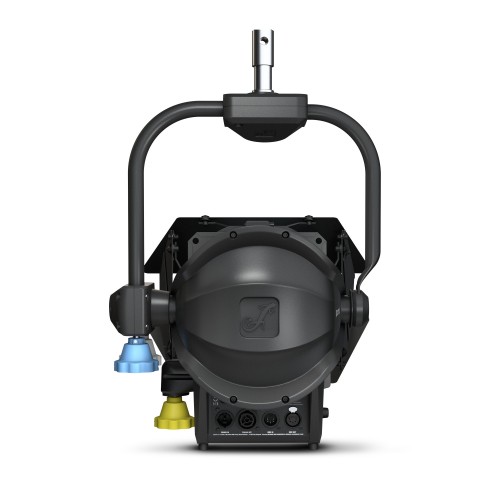

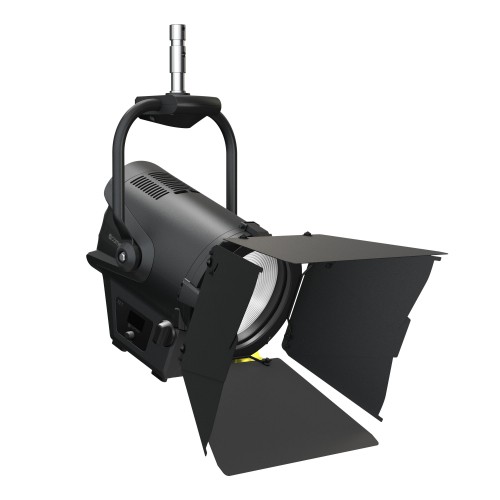

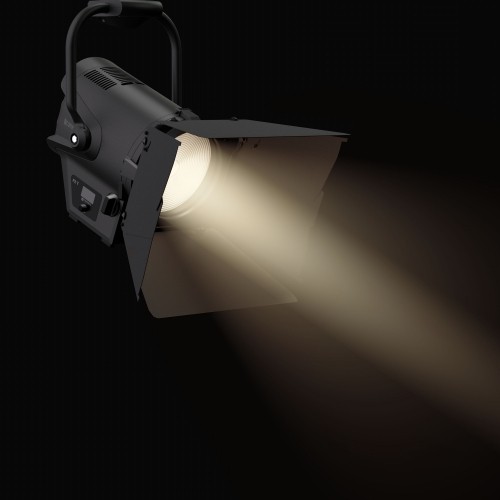

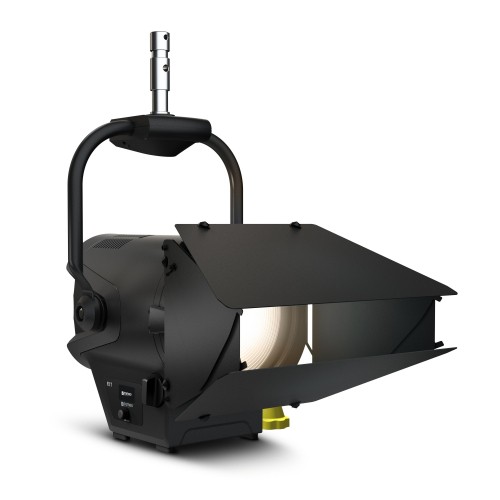

Pole-operated Fresnel Spotlight with Tungsten LED



  • Natural colour reproduction CRI 96, TLCI 97
  • Continuous zoom for beam angles from 15° to 40°
  • Four selectable 16-bit dimmer curves with adjustable response
  • Optimised operation via high efficiency heatpipe cooling and temperature-controlled fan
  • RDM enabled
  • Selectable pulse width modulation frequencies up to 25 kHz
  • Flicker-free and silent operation, ideal for TV, film and theatre
  • 8-way barn door and gel frames included
Description

Energy saving par excellence – Cameo F2 T PO now even simpler to operate

Looking for a professional Fresnel spotlight with a high-quality 200 mm lens and a high luminous flux of 12,500 lm? The Cameo F2 T PO is your perfect choice. Now also with pole operation: The Cameo F2 T PO is perfect for anyone who prefers precise manual adjustment from the ground and is unable or unwilling to use a ladder. The RDM-enabled spotlight creates a soft edged beam of light with a continuously adjustable beam angle of 15° to 40°. It’s the perfect, energy-saving replacement for traditional 1-kW Fresnel models. Its 240-watt daylight LED has a colour temperature of 3,200 K and a service life of 50,000 hours. Its extremely high colour rendering index of 97 reproduces pure and natural colours.

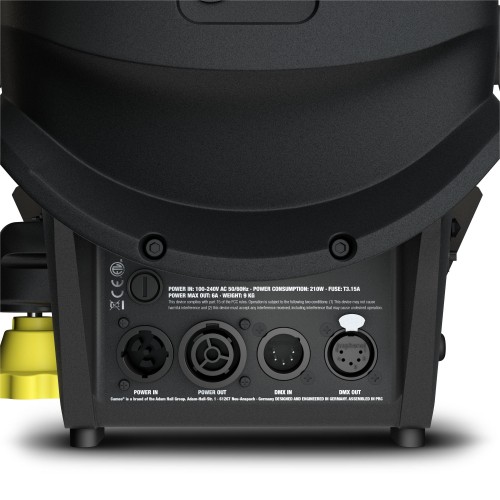

The F2 T PO has 6 DMX control modes, a fast strobe function and four 16-bit dimmer curves with adjustable response. Six selectable pulse width modulation frequencies up to 25 kHz ensure flicker-free operation. High- efficiency heatpipe cooling and a temperature-controlled fan provide optimal operation. The robust, die-cast aluminium housing is equipped with a rotary encoder and OLED display for easy configuration of the spotlight. 5-pin DMX connectors and Power Twist mains sockets facilitate simple daisy-chaining. 8-way barn door, a gel frame and mains cable are included.

Specifications
Product type
LED Fresnel Spotlight

Type
Theater Fresnel

Colour spectrum
Tungsten , warm white

Number of LEDs
1

LED type
240 W (ca. 50,000 Operating Hours)

LED PWM Frequency
Adjustable: 800 Hz, 1200 Hz, 2000 Hz, 3600 Hz, 12000 Hz, 25000

Dispersion
Beam Angle: 15 ° – 40 ° , Field Angle: 28 ° – 60 °

Lens
200 mm Fresnel

DMX input
5-Pol

DMX output
5-Pol

DMX mode
1-channel , 2-channel 1 , 2-channel 2 , 3-channel , 4-channel , 5-channel

DMX Functions
Device Settings , Dimmer , Dimmer Curve , Dimmer Fine , strobe

Standalone modes
Master / Slave mode , Static

Controls
Master / Slave mode , Static

Indicators
OLED Display

Operating voltage
100 V AC – 240 V AC, 50 – 60 Hz

Power consumption
210 W

Power Factor
0.94 / 240 V , 0.99 / 120 V

Power connector
TRUE1 Compatible Power I/O Socket

Housing material
Die-cast aluminum

Cabinet colour
Black

Protection class IP
IP20

Cooling
Combination of heat pipe and temperature controlled fan

Luminous flux
12500 lm

Efficiency
57 lm/W

Colour temperature
3200 K

Operating Temperature
-15 – 45 °C

Dimensions including Mounting Bracket


Width
357 mm

Height
573 mm

Length
322 mm

Weight
11,6 kg

Accessories (included)
8-way barndoor , gel frame , Power cord



Availability: Διαθέσιμο κατόπιν παραγγελίας Κωδικός προϊόντος: CLF2TPO Κατηγορίες: , ,
