85150LUX Defender Nano LUX

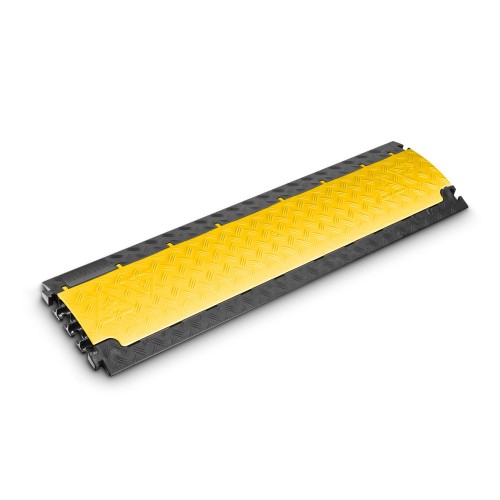

Cable Protector 6 channels lux
- Especially flat, non-slip cable crossover made of black, recyclable polyurethane, wheelchair-compatible
- Highly transparent yellow-tinted lid for use in the dark with light tubes
- Yellow polyethylene lid with high warning effect and secure closure (also available with black lid, item N° 85150BLK)
- Patented, self-cleaning lid hinge
- 6 channels 17 x 18 mm
- Load bearing capacity approx. 2 t / 20 cm²
- Fire resistance class B2 (DIN 4102), DEKRA-certified (DIN 31000, EN 61537)
- Resistant to oil, acids, solvents, and petrol
- Dimensions 100 x 28 x 3.2 cm; Weight 4.37 kg
- Reliable protection for cables and personnel for indoor and outdoor use
- Not suitable for road traffic.
- End ramps for secure cable insertion and removal as accessories
Specifications
Product type
Cable Protectors
Type
6 Channels
Length
1000 mm
Width
280 mm
Height
32 mm
Channels
6
Width channel 1
17 mm
Height channel 1
18 mm
Width channel 2
17 mm
Height channel 2
18 mm
Width channel 3
17 mm
Height channel 3
19 mm
Width channel 4
17 mm
Height channel 4
19 mm
Width channel 5
17 mm
Height channel 5
18 mm
Width channel 6
17 mm
Height channel 6
18 mm
Material
Polyurethane
Max. load
ca. 2t on a surface area of 20 x 20 cm
Chemical resistance
acid-resistant , oil-resistant , petrol-resistant
Hardness range
88 ± 4 Shore
Fire protection class
B2
Temperature range
-30 to + 60 °C
Weight
4,37 kg
Special feature
DEKRA-certified
